Cable protector Cableguard – Red Line 5
Cable protector Cableguard – Red Line 5
| Typ: | gerades Element |
|---|---|
| Max. Achslast: | 9,1 t |
| Anzahl Kabelkanäle: | 5 |

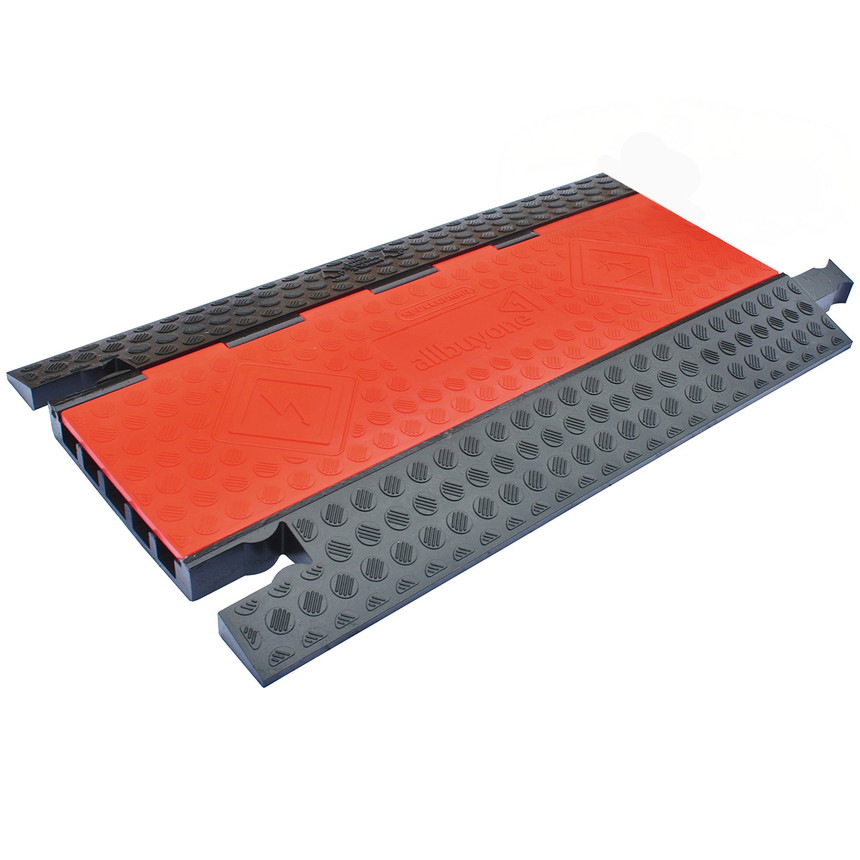

With a maximum axle load of 9.1 tonnes, Cableguard's Red Line cable protector is an extremely robust cable protector for professional use. The cable protector has five cable channels in which cables, lines and hoses can be laid to protect them from being crushed or abraded. The black cable protector and the red lid (with hinge) have a ribbed surface, making the overrun protection non-slip and safe to step on. Order the cable protector Red Line in the shop with short delivery time, we are also happy to advise you personally!
Red Line RL5-31 cable protector
The cable protector Red Line is a high-quality drive-over bridge for professional use. The cable protection prevents exposed cables at events and construction sites from being crushed, pulled and abraded. The overrun protection has a maximum axle load of 9.1 t and can therefore also be driven on by heavy goods vehicles.
For a clear cable routing, the premium cable protector offers 5 cable trays in a width between 3.2 and 3.9 cm. The black floor duct is 50 cm wide and 91 cm long. The cable protector has a red lid, which is attached with a hinge. This has the advantage that no components are lost during transport in constant tour operation. Its low weight of just 11.7 kg and an integrated carrying handle help to save time when laying over long cable distances. The cable protector is non-slip in accordance with DIN 51130. This means that the cable protectors are also non-slip when wet.
The cable protector Red Line is made of halogen-free polyurethane and is resistant to oil, acids and petrol. With a dielectric strength of 220 kV, the cable protectors form a non-conductive barrier between people and the power cable and protect the cable from both mechanical and weather-related damage. Red Line cable protectors are fully compatible with the Yellow Jacket Classic cable protectors.
Dimensions of cable protector Red Line
- Height: 46 mm
- Width: 502 mm
- Length: 910 mm
- Channel width (middle channel): 39 mm
- Channel width (remaining channels): 32 mm
- Channel height: 31 mm
- 17.3°

Properties of the cable protector Red Line
- Type: RL5-31
- Redcover
- Housing colour: Black
- Channels: 5
- Weight: 11.7 kg
- max. axle load: 9.1 t at 20°C
- Temperature resistance: -40°C to +49°C
- dielectric strength: 220 kV, non-conductive according to the standard 2014/35/EU
- UV-resistant
- non-slip in accordance with R11 of DIN 51130
- Compatible with Yellow Jacket Classic cable protectors
Cable protector Red Line – high-quality material and certifications
The cable protector Red Line is resistant to oil, acids and petrol and fulfils the CE standard. In addition, the drive-over bridge is non-conductive with a dielectric strength of up to 220 kV, in accordance with the standard 2014/35/EU. All cable protectors correspond to building material class B2 according to DIN 4102.
Red Line 5 cable protectors are virtually maintenance-free due to the high-quality material and the clean workmanship. The cable protector meets the ISO 62 / ASTM D570 standards. This means that the cable protector has absorbed less than 1% water after lying in a water basin for 24 hours. This almost completely rules out any change in shape (swelling, etc.) of the cable protectors and connecting parts due to moisture and guarantees a long-term precise fit of the cable protectors.
Labelling of cable protectors
The cover of the cable protector Red Line can be customised with lettering and logos on an area of 240 x 90 mm. Any motif and font is possible with a letter height of 5 mm or more. For an optimal typeface, we recommend choosing a letter size of more than 10 mm. The distance between two lines is 2 mm each. Personalising cable protectors Red Line costs an extra €60 per engraving plate. The cable protector can be personalised free of charge for orders of 30 or more.
If required, the cable protector base can be equipped with a metal plate. This can be engraved with text such as serial numbers.
Difference between cable protector red line and black line
The robust cable protector Red Line is designed for professional use in touring with a maximum load capacity of up to 9.1 t per axle. It provides reliable cable protection from passenger and heavy goods traffic. For primary use as a cable protection bridge for cars and lighter vehicles such as trucks or forklifts, we recommend the affordable cable protector Black Line.
Cableguard cable protectors – an overview of the types:
| cable protector red line | cable protector black line | |
| Height: | 4.6 cm | 5.0 cm |
| lid colour: | red | black |
| Weight: | 11.7 kg | 10.0 kg |
| cable duct dimensions: | 5 channels in total 4 of which are 3.2 cm wide, 3.1 cm high, the centre channel is 3.9 cm wide and 3.1 cm high. |
5 channels 3.4 cm wide, 3.2 cm high |
Other cable protectors and hose bridges from allbuyone
Our cable protectors differ mainly in terms of their load capacity and weight. Our range of cable protectors offers affordable drive-over bridges for all requirements.
- Cable protectors Ranger
- Cable protectors, angled
- Half-round cable duct
- cable protector black line
- Yellow Jackets cable protectors
- Defender cable protectors
- hose bridges
Installation of the cable protector Red Line
Thanks to the modular design of the Cableguard drive-over bridges, cable protection channels can be routed safely and stably in any length. Further components can be connected by snapping the connecting elements together. When laying the bridge, care should be taken to ensure that there are no major unevennesses or height differences between the individual cable protectors in the outer area. This is the only way to ensure that the connecting elements engage smoothly.
the manufacturing process, it is possible that silicone residue remains on the end product. This can be easily removed with a mixture of water and washing-up liquid.
Cable protector Red Line – Safety instructions
The cable protector Red Line is trafficable at 20°C per axle up to 9.1 t. These figures refer to the use of the plastic cable protectors on level and solid surfaces. If the cable protector is laid on soft and sloping surfaces, the load capacity of the cable protector Red Line may be reduced. In such cases, it is recommended that each overrun protection for cables and hoses be tested for load capacity before use.
Cable protector Red Line - Obtain approval
In general, the relevant authority should be contacted before using a cable protector. If the cable protector is used as overrun protection on public roads, the corresponding area must be marked with hazard warnings depending on the official regulations . It may also be necessary to apply for additional official permits before using cable protectors.
Cable protector Red Line in event demand
On concert tours, at festivals and trade fairs, the high-end cable protector is used as overrun protection for cables over long periods. Cables from loudspeaker systems, audio and stage technology are often laid on the floor over several metres and cross access routes, backstage and public areas. The cable protector, which is suitable for indoor and outdoor use, provides reliable protection for cables and the devices connected to them, even with heavy traffic. In addition, the floor channel helps keep cables tidy: the lines are laid clearly and neatly in the five channels of the Security cable protectors. There is no risk of cable clutter. Last but not least, the cable protector minimises the risk of accidents and improves safety. Cable harnesses that pose a tripping hazard on visitor paths are safely stowed in the cable protector Red Line. Thanks to the ribbed surface and non-slip cover, the cable protector is non-slip even when wet.
Cable protectors Red Line on construction sites
With a maximum axle load of 9.1 tonnes, the cable protector Red Line is excellently suited as overrun protection on construction sites. If cables are laid loosely on the ground, there is a high risk of them being crushed. This can be prevented with the cable protector Red Line. The cable protectors for lorries and articulated lorries are extremely stable and also non-slip, so that even on muddy ground, the construction site cables are reliably protected. The different cable channel dimensions of the 5 cable trays help to keep cables organised. Since the cable protector Red Line is flattened on the sides, it can be crossed by construction site vehicles and people alike without any problems. The cable channel is corrugated on the outside for better slip resistance. Order the cable protector Red Line with overrun protection – for more safety and organisation on your construction site!
Cable protector Red Line easy handling
Our new cable protector Red Line makes cable protection much easier. The weight of the plastic cable protectors has been reduced to 11.7 kg. Cavities have been created on the underside of the cable protector Red Line and a carrying handle has been incorporated. The connecting elements of the cable protector Red Line have been significantly extended, thus achieving greater stability of the connections between the individual cable protectors. This ensures even more precise laying of the cable protector systems, even over longer distances .
Cleaning and storing the cable protector Red Line
Due to the material properties, the floor channel is almost maintenance-free. If it is dirty, the overrun protection can be cleaned with water (also with a steam jet). The cable protector Red Line complies with the standards ISO 62 / ASTM D570. The cable channel absorbs less than 1% water after lying in a water basin for 24 hours.
There is almost no chance of it changing shape. However, make sure that it is stored in a dry place. In addition, the cable protection should not be stored on its side to avoid damaging the connecting elements.
Cable protector Red Line – various designs
The cable protector Red Line can be ordered in other versions, with different numbers of cable trays and in different sizes. The following cable protectors are available from the Red Line series:
- RL3-57 (straight element with 3 cable channels)
- RL3-57-LT (45° element left with 3 cable channels)
- RL3-57-RT (45° element on the right with 3 cable ducts)
- RL5-31-EP (end piece set)
- RL5-31-LT (45° element left with 5 cable ducts)
- RL5-31-RT (45° element on the right with 5 cable ducts)
Red Floor cable protectors available on request
For customised cable laying, we offer you the Red Floor cable protector. This is an overrun protection system that can be put together from a wide range of elements. In addition to a variable number of cable trays, various types of ramps and wheelchair ramps can be connected as required. If desired, the Red Floor cable protector can be engraved with a logo on the cover . You can order the following variants of the Red Floor cable protector from allbuyone:
• Centre element including ramp RF3-57
• Centre element single RF3-57-C
• Standard ramp male RF3-57-MR
• Standard ramp female RF3-57-FR
• Wheelchair ramp male RF3/5-WMR
• Wheelchair ramp, female RF3/5-WFR
• Wheelchair ramp connector male RF3-WMRI
• Wheelchair ramp connector, female RF3-WFRI
• End piece, set of 4, blue RF3-Tapered End Ramp
• Centre element including ramps RF5-31
• Single centre element RF5-31-C
• Standard ramp male RF5-31-MR
• Standard ramp, female RF5-31-FR
• End piece, set of 4, blue RF5-Tapered End Ramp
• Red Line 5 to Red Floor 5 connection piece RF5/RL5-TP
• Red Line 5 to Red Floor 5 connection piece RL5/RF5-TP
You can find an overview of the Cableguard range in the product catalogue below. These cable protectors are available on request. Call +49 (0) 89 - 122 89 06 22.
Cable protectors colours
On request,, the cable channel is also available in a different colour. Any colour from the RAL and Pantone colour spectrum can be selected. Only the combinations orange/black and yellow/black are not possible for advertising technology reasons.
Note on production
Silicone is used to release the cable protector Red Line from the mould during production. Therefore, there may still be slight silicone residues on the cable protector. However, these will quickly disappear when the cable protector Red Line is used for the first time.
