Holdon® clips: clip eyelets instead of traditional eyelets
Holdon clip eyelets have proven themselves as clips for attaching tarpaulins without eyelets , backdrops or fabric, molton and many other materials. The high-quality clips made of break-proof, glass fibre-reinforced plastic (Perlon) impress with their patented system, which replaces traditional fastening with eyelets and expander ropes or bungee cords , is gentle on materials and offers maximum grip .
You can order Holdon clips here in the shop in two versions: Holdon® Midi Clip and Holdon® Mini Go.
Depending on how you intend to use the Hold On Clip, we offer the patented clamping eyelets in two versions:
- Holdon Clip Mini Go – pre-assembled clamp eyelets for fastening lightweight materials, load capacity up to 45 kg per piece
- Holdon Clip Midi – pre-assembled clamping eyelet for securing heavy products, load capacity up to 70 kg per piece
A Holdon Clip can be easily operated by hand. No tools required! The following applies to fastening: The higher the weight attached, the stronger the clamping effect of the clips!
Holdon Clips®: Product details
Whether for stage construction, trade fairs or events, fabrics and other materials are often fastened through eyelets using traditional elastic straps or tarpaulin bungee cords (e.g. Spannfix bungee cords). Holdon clips help to save on assembly costs and enable materials to be fastened without eyelets.

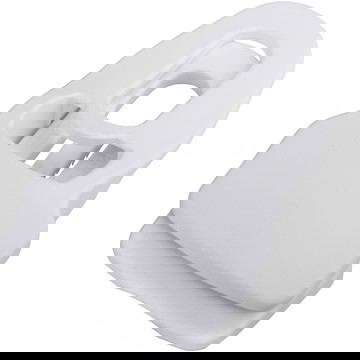

- Selection: Holdon® Mini Clip Go (pre-assembled), Holdon® Midi Clip (pre-assembled)
- Material: plastic (glass fibre reinforced Perlon)
- Material thickness: Midi suitable for materials up to 5 mm thick, Mini suitable for materials up to 1.5 mm thick
- Load capacity: 45 kg (Holdon® Mini Clip), 70 kg to 100 kg * (Holdon® Midi Clip), depending on material
- Colour: black, white, grey on request
- Resistance: temperature resistant from -30°C to +100°C, UV and weather resistant
- Fastening: Can be fastened by hand, no tools required
- Use: indoor and outdoor
- Reusable: long service life
- Areas of application: Fastening/fixing molton (stage molton, decorative molton) and other fabrics, tarpaulins (fabric tarpaulins, view protection tarps), banners, paper, cardboard, foils and much more
How are Holdon clips attached?
Holdon Clip – quick and easy to useThe clamping eyelets with patented fasteners offer high adhesive strength on hemmed and unhemmed materials. Each clip has a wedge fastener. The greater the load, the more grip it develops.
The clips adapt perfectly to the thickness of the material and can be easily secured by hand. The bar, which additionally prevents the material from slipping out, is designed to be extremely gentle on the material.
Instructions: How to use the Holdon Clip Midi
- Place the material to be fastened between the two open jaws of the clamp. The ratchet lock (1) should be facing you.
- You can now lock the Holdon Clip in place (towards "on") by pulling it. A cable tie, for example, can be used as a suitable aid for this, which is inserted through the eyelet to make pulling easier. The more pull is applied, the harder it is to open the clamp again.
- On the other side of the Holdon® clip there is an eyelet (2) with a diameter of 1 cm. This allows you to thread bungee cords, cable ties, hooks or an expander rope as usual and then fix them to poles or scaffolding.
- You need both hands to open the Holdon clip: press the ratchet lock (1) down and push the clamp (3) in the opposite direction (towards "off"). You can make opening easier by inserting a coin into the release edge (4).
Note on attaching the Holdon Mini ClipsThe Holdon Clip Mini is easier to use. The material simply needs to be clamped between the jaws, and a wedge-shaped plate locks itself in place by means of tensile force. To open, simply push this plate back in the opposite direction. Each system can be reused for a long time.
Order accessories at the same time
To complete the product, after mounting the clips on the fabric/banner/tarpaulin, etc., a connecting element should be pulled through the eyelet of the clips. The following are suitable for this purpose:
- Bungee cords – the classic with plastic hooks
- A bungee tie with ball closure, tilt sleeve or spiral hook
- Expander
- cable ties, ropes, etc.
- In exceptional cases, adhesive tape (if no expander rope is available)
Please note: The use of material-friendly, elastic expander ropes is preferable to rigid fastening with inflexible ropes or cable ties. Elastic tensioning rubbers are able to distribute weight and compensate for impact movements caused by wind, for example.
Use of the clamping eyelets in leisure or camping
As a reusable fastening element, the clips can also be used in the hobby and leisure sector, for example to repair tents and tarpaulins. Holdon clips are frequently ordered for camping and are versatile in use, for tensioning tent/view protection tarps, as clothes pegs, towel holders and much more.
Buy Holdon Clips® – low price, fast shipping
You can buy Holdon® clamp eyes at a low price from allbuyone – your expert for event accessories. In our online shop, you will find a large selection of accessories for professional fastening. In addition to Klemmfix, we offer a wide range of other fastening elements and matching accessories, e.g. cable ties, lashing straps and Bungee Cords. The tensioning rubbers are available with hooks, balls or tilt sleeves. We have Holdon® clips in stock and ready for immediate delivery; orders are shipped within 24 hours on working days. Our prices are in EUR and include VAT, plus shipping costs. For information and personal advice, please call: +49 89-122 89 06 22
