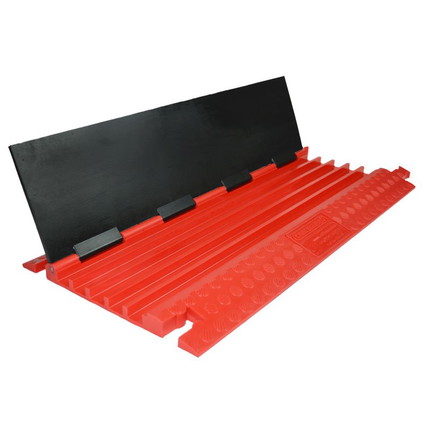

Cable Guard Black Line 5 Channel Low Profile - 4.7 t Axle Load
The Cable Guard Black Line 5 Channel Low Profile cable bridge provides professional cable protection for events, construction sites and industrial applications. With its 4.7 tonne axle load capacity and low 35mm profile, this system offers optimal protection for up to 5 cables while minimizing trip hazards. The high-visibility design with black lids and red base ensures maximum safety in all operating conditions.
- 5-channel system for multiple cable routing (4× 33×19mm + 1× 37×19mm channels)
- 4,763 kg axle load capacity at 20°C for vehicular traffic
- Dog Bone connector system for secure interconnection
- Low 35mm profile minimizes trip hazards while maintaining vehicle clearance
- High-visibility color scheme with black lids and red base for enhanced safety
Technical Specifications
- Number of channels: 5 (4× 33×19mm + 1× 37×19mm)
- Maximum axle load: 4,763 kg (4.7 tonnes) at 20°C
- Material: Halogen-free polyurethane - non-conductive and weather-resistant
- Dimensions: 910mm (L) × 430mm (W) × 35mm (H)
- Weight: 8.2 kg per unit
- Connector type: Dog Bone for secure interconnection
- Surface: Slip-resistant tread pattern for pedestrian safety
- Temperature range: -40°C to +49°C operational capability
Professional Cable Protection System
The Black Line 5 Channel Low Profile represents the optimal balance between cable protection capacity and traffic safety. Engineered from high-grade polyurethane, this system delivers exceptional durability while maintaining flexibility across extreme temperature ranges. The low 35mm profile design significantly reduces trip hazards compared to traditional cable ramps, making it ideal for high-traffic pedestrian areas and event spaces where visitor safety is paramount.
Each unit features five separate cable channels with dimensions of 33×19mm (four channels) and 37×19mm (one channel), accommodating a wide range of cable diameters from power distribution to data transmission. The Dog Bone connector system ensures secure interconnection between units, preventing separation under vehicle loads while allowing for flexible configuration of protection routes. The slip-resistant surface provides secure footing for pedestrians in all weather conditions, while the high-visibility color scheme with black lids and red base enhances visibility in low-light conditions.
With a 4.7 tonne axle load capacity, this system safely supports most light vehicles and heavy equipment commonly found on construction sites and at outdoor events. The weather-resistant polyurethane construction protects against UV degradation, moisture, and temperature extremes, ensuring reliable performance in both temporary and semi-permanent installations. At just 8.2 kg per unit, the Black Line 5 Channel offers excellent portability for event crews while maintaining the structural integrity required for professional applications.
Customization Options
For professional event organizers and construction companies requiring branded solutions, the Black Line 5 Channel Low Profile offers several customization options:
- Personalized lids with company logos (minimum order quantities apply)
- Custom color options available upon request (RAL/Pantone matching)
- Reflective strips for enhanced nighttime visibility
- Special connector configurations for unique installation requirements
Application Scenarios
Event and Stage Production
In the live event industry, the Black Line 5 Channel Low Profile serves as an essential component for professional cable management across various applications:
Concert Stages and Festivals: Protects power distribution cables, DMX lighting control lines, and audio snake cables running between stage and FOH positions. The low profile design prevents trip hazards for performers and crew while supporting the weight of stage trucks and equipment dollies during load-in/load-out operations. The high-visibility color scheme ensures cables remain visible to stagehands working in low-light conditions.
Trade Shows and Exhibitions: Provides safe cable routing for exhibition halls where multiple exhibitors require power and data connections. The five-channel design allows separation of different cable types (power, data, AV) to prevent interference while maintaining a clean, professional appearance. Event organizers appreciate the quick assembly using the Dog Bone connectors, enabling rapid reconfiguration as booth layouts change.
Broadcast and Film Production: Essential for location shoots where cable protection must accommodate both pedestrian traffic and production vehicles. The weather-resistant construction performs reliably in outdoor environments, while the slip-resistant surface provides safe footing for camera operators and grip teams moving quickly between setups. Production managers value the system's ability to protect expensive cabling from damage while maintaining mobility across the set.
Corporate Events and Conferences: Offers discreet yet effective cable protection in ballrooms and conference centers. The low profile design blends with professional event decor while preventing trip hazards for attendees. Event planners utilize the system to protect power extensions running to registration desks, AV equipment, and staging areas, with the added benefit of quick installation and removal between events.
Construction and Industrial Applications
On construction sites and in industrial environments, the Black Line 5 Channel Low Profile delivers reliable cable and hose protection:
Building Construction: Protects temporary power distribution cables, welding leads, and pneumatic hoses across active work zones. Site managers appreciate the 4.7 tonne load capacity that safely supports delivery trucks and concrete pumps while preventing cable damage. The weather-resistant material withstands exposure to construction debris and cleaning chemicals without degrading.
Roadworks and Infrastructure Projects: Provides essential protection for traffic management system cabling and temporary lighting installations. The high-visibility color scheme enhances worker safety in low-light conditions, while the slip-resistant surface prevents accidents in all weather conditions. Transportation departments specify this system for its ability to maintain traffic flow while protecting critical infrastructure cables.
Manufacturing Facilities: Used in production areas where mobile equipment requires flexible power connections. The five-channel design allows separation of power, control, and data cables to prevent electromagnetic interference. Facility managers value the system's durability in environments with forklift traffic and exposure to industrial cleaning processes.
Mining and Resource Extraction: Protects heavy-duty power cables and hydraulic lines in challenging outdoor environments. The temperature-resistant polyurethane maintains flexibility in extreme cold, while the load capacity supports mine vehicles and heavy equipment. Site safety officers specify this system for its ability to prevent cable damage that could create electrical hazards or equipment downtime.
Assembly and Handling
The Black Line 5 Channel Low Profile features a user-friendly design that enables quick installation and secure operation:
- Surface Preparation: Ensure installation area is clean, flat, and free of debris that could affect stability
- Connection Process: Align units and press down firmly on the Dog Bone connectors until fully seated
- Cable Installation: Open lids, route cables through appropriate channels, and close securely
- Load Testing: Verify installation can support expected traffic before full deployment
- Maintenance: Regularly inspect for damage and clean with mild detergent and water
- Storage: Store flat in dry conditions away from direct sunlight when not in use
For optimal performance, install the cable bridge on firm, level surfaces. The Dog Bone connectors create a secure connection that prevents separation under vehicle loads while allowing for slight movement to accommodate ground irregularities. When installing on soft surfaces like grass, consider using a temporary sub-base to prevent sinking under heavy loads.
The slip-resistant surface requires no special maintenance, though periodic cleaning with mild detergent and water will maintain its effectiveness. For long-term storage, keep units flat to prevent warping and store in a cool, dry location away from direct sunlight to maximize service life.
Product Variants and Accessories
The Black Line series offers a complete cable protection solution with these complementary products:
- Black Line 1 Channel: For single cable applications with 4.7t load capacity
- Black Line 2 Channel: Dual cable protection with same load specifications
- Black Line 3 Channel: Three-cable version for medium capacity needs
- Black Line 5 Channel Regular: Alternative 5-channel configuration with different dimensions
- Reflective Strips: Enhance nighttime visibility for outdoor applications
- Personalized Lids: Custom branding options for event companies
- End Caps: Protect cable ends and provide finished appearance
- Corner Pieces: Enable 90° turns in cable routing
For complete technical specifications and the full product range, download the Cable Guard Catalogue 2025 (PDF).
