mannesmann barrier | Mannheim lattice barrier | W 2.50 m x H 1.10 m | Type C safety barrier | hot-dip galvanised steel in accordance with DIN 1461 | hook and eye system | crowd barrier for visitor guidance, route demarcation | indoor and outdoor |

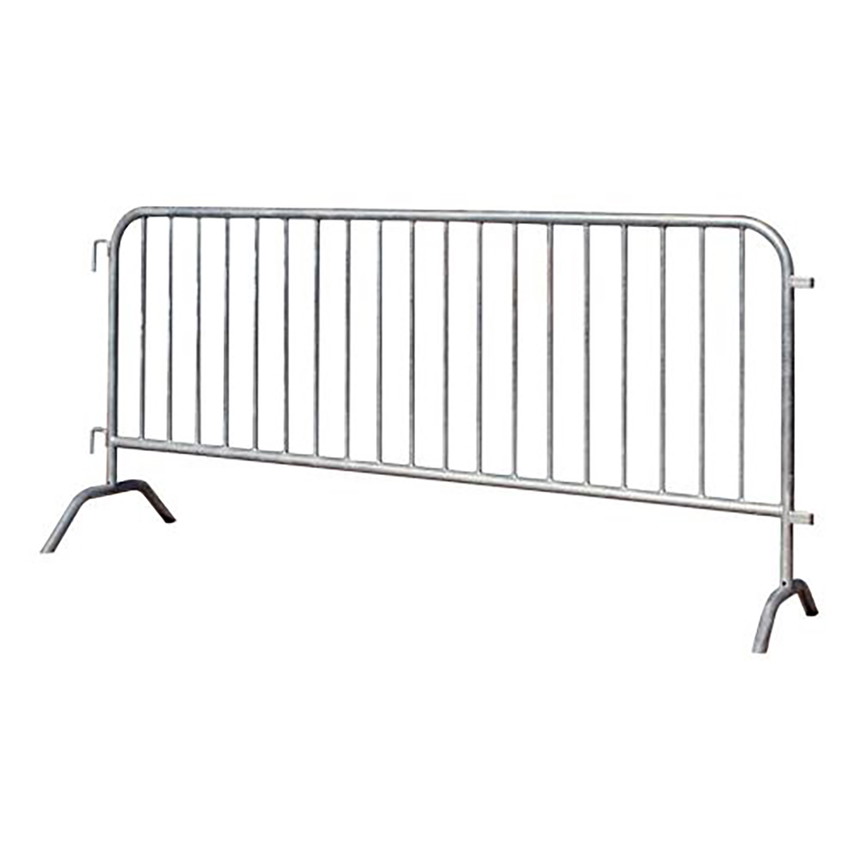

Mannesmann Barrier Type C
Mannesmann Barrier Type C
€145.00*
/Item
*incl. VAT plus
Article number: 4504007·Weight: 24 kg/Item
| Type: | Crowd barrier type C |
|---|---|
| Size: | 2,50 m x 1,10 m |
| Material: | Steel, galvanised (S235 JR), Surface: Hot-dip galvanised according to DIN ISO 1461 |
Type C Mannesmann barriers are sturdy, robust safety barriers made of galvanised steel - ideal for cordoning off areas at events without high visitor numbers. Mannesmann barriers are suitable for visitor guidance, route barriers and any other type of cordoning off.
Mannesmann barriers type C measure 2.50 m x 1.10 m (width x height) and have 19 struts with a diameter of 38 mm (, strut spacing 19 cm). With a weight of 24 kg ( ) and feet made of bent round tubing, the barriers are stable and particularly sturdy. The safety barriers are made of galvanised steel (hot-dip galvanised in accordance with DIN 1461), are weatherproof and suitable for indoor and outdoor use. Thanks to a hook and eye system welded to the side, any number of barriers can be easily connected to each other to form a secure barrier.
You can purchase the Mannesmann barriers here in quantities of 5 or more at a low price.. You will also find matching accessories such as sleeves, barrier banners and mounting materials in our shop. Alternatively, we also have a lighter safety barrier, the Mannesmann barrier type D, in our range, as well as other useful barrier technology for events, construction sites and much more.
€145.00*
/Item
*incl. VAT plus
Article number: 4504007·Weight: 24 kg/Item
| Type: | Crowd barrier type C |
|---|---|
| Size: | 2,50 m x 1,10 m |
| Material: | Steel, galvanised (S235 JR), Surface: Hot-dip galvanised according to DIN ISO 1461 |
Mannesmann barrier type C – barriers for flexible crowd control
Luxembourg grids, Mannheim grids, demo grids – the Mannheim grid has many names and just as many uses. The safety barrier made of galvanised steel is ideal for barriers without high pressure from people, for example for visitor guidance, as route barriers for cycle races, parades or similar, and for limiting and restricting areas indoors and outdoors.
Weighing 24 kg per panel and with 38 mm thick steel struts, the Mannesmann barrier offers reliable barrier technology. Using a hook and eye system, any number of Mannheim barriers can be joined together to form a stable barrier. In general, Mannesmann barriers impress with their easy handling and high flexibility ly during assembly and disassembly.
- Type: Mannesmann barrier type C
- Material: steel, hot-dip galvanised in accordance with DIN ISO 1461
- Length: 2500 mm (excluding hooks and connecting brackets)
- Total height: 1100 mm
- Foot projection: 684 mm
- Tube diameter: 38 mm
- Brace length: approx. 726 mm
- Brace thickness Ø: 16 mm
- Brace spacing: approx. 105 mm
- Distance to the floor: approx. 300 mm
- Number of filling rods: 19
- Weight: approx. 24 kg
- Connection system: hooks and connecting brackets
We would like to point out that Mannesmann barriers, like other barrier devices, may have minor visual defects due to the manufacturing process. Unless this affects their use, we cannot accept this as a reason for complaint.
Mannheim barriers – matching accessories
Why not use the Mannheim barriers as advertising space? Whether for your own advertising, that of your sponsors or as a space for notices and signage, order the matching banners and covers at the same time!
- Banners and sleeves for barrier fences
- Rubber mats – non-slip base, protects the floor
- Cable ties – for attaching banners
- Bungee cords – for attaching banners
Even more barrier technology
In addition to the Mannesmann barrier, you will find a selection of other barrier technology in our shop:
- Mannesmann barrier type D – lightweight version of the Mannheim barrier
- Police grids type L
- Police grids type U
- Construction fence light
- Construction fence Pro
- GIGS stage barricades
- Barrier tapes in various designs
- Tensators and crowd control systems
Buy Mannesmann barriers from allbuyone
You can buy Mannesmann barriers alongside a wide selection of safety barriers, barricades and fences. If you would like individual advice, we are happy to assist you personally on +49 89-122 89 06 22.
