police grids | Height 100 cm, length 200 cm, 60 cm deep platform | Type L police grid | Temporary barrier made of steel, hot-dip galvanised according to DIN ISO 1461 | Type L hamburger grid | Weight 33 kg

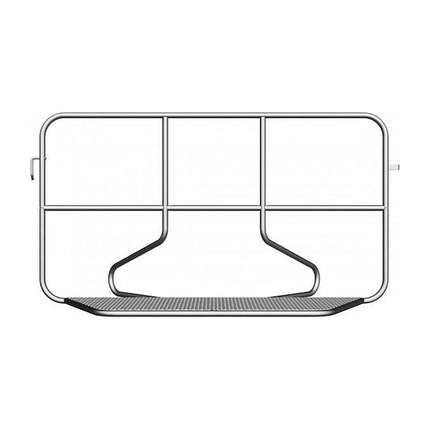

Police grids type L
Police grids type L
| Type: | Police barrier type L |
|---|---|
| Size: | 2,10 m x 1,10 m x 0,60 m |
| Material: | Steel, galvanised (S235 JR), surface: Hot-dip galvanised according to DIN ISO 1461 |
Type L police grids are simple safety barriers for outdoor use and have an integrated tread surface with a depth of 60 cm. Police grids are suitable for stable, versatile barriers with pressure from people. A police grid, also known as a hamburger grid, hamburger rider, demo grid or crowd control grid, is used, for example, to guide crowds, to restrict demonstrations or to fence off parades or an area.
The galvanised steel police grids (hot-dip galvanised according to DIN ISO 1461) are durable and extremely stable, ensuring a high level of safety. The easy-to-connect hook and eye system and the relatively low weight allow for particularly quick assembly compared to construction fences and barricades.
Police grids type L have a total height of 100 cm, a length of 200 cm and a 60 cm deep tread. Thanks to the hook and eyelet system, any number of barrier elements can be connected to form long barriers. The police grids weigh approx. 33 kg and can be easily set up by 1 to 2 people.
You can buy the police grid here with fast shipping. Alternatively, we have another hamburger grid, the police grid type U ( foldable), as well as other safety barriers and fences and stage barricades for barriers at events and construction sites in our range.
| Type: | Police barrier type L |
|---|---|
| Size: | 2,10 m x 1,10 m x 0,60 m |
| Material: | Steel, galvanised (S235 JR), surface: Hot-dip galvanised according to DIN ISO 1461 |
Police grids type L as temporary barriers
Police grids – also known as hamburger grids, hamburger riders or demo grids ( ) – are safety barriers that can be set up quickly and securely thanks to hooks and eyelets. Police grids L are suitable for guiding visitor flows and cordoning off certain areas, for example at events, parades, demonstrations, etc.
The police grid is made of steel and hot-dip galvanised in accordance with DIN ISO 1461, making it very robust, weather-resistant and durable. A fence element has a height of 100 cm and is 200 cm wide. The special feature of police grids is the approx. 60 cm deep, integrated tread surface, which ensures a high level of stability: on the one hand, this is due to the right-angled attachment of the tread surface and the weight of the people standing on it. For additional stability, diagonal support struts are attached on the other side.
Police grids can be connected to form rows of any length and are particularly quick to set up. Each police grid weighs approx. 33 kg and can be easily positioned by 1 to 2 people.
Please note: Are you planning a large event with very high crowd pressure? Please check whether police grids are suitable for this application. For extreme crowd pressure, such as a crowd in front of a large festival stage, specially designed stage barricades are recommended.
Police grids – technical data
- Type: Police grids type L (synonyms: hamburger grids, hamburger riders, stage grids, crowd control grids, demo grids)
- Material: e steel, hot-dip galvanised in accordance with DIN ISO 1461
- Total length: 2000 mm
- Total height: 1100 mm
- Total depth: 900 mm
- Tube diameter: 33 mm
- Weight: approx . 33 kg
- Connection system: Hooks and connecting brackets
Hamburger grid type L - dimensions
We would like to point out that large safety barriers or fences may have minor visual defects due to the nature of their production. Unless this affects their use, we cannot accept this as a reason for complaint.
Police grids – greater stability thanks to tread surface
Line of force in police grids when people are pushingThe tread surface not only provides support for people, but also fulfils an important safety function. The weight of visitors or guests ensures the stability of the police grids.
On the other side of the barrier, there are additional diagonal supports that prevent tipping when there is heavy visitor pressure.
The forces at work are shown in red in the illustration.
Additional safety barriers, stage barriers and accessories
We also offer the appropriate accessories for the police grids as well as other safety barriers in various designs:
- Police grids type U - foldable, with longitudinal struts
- Mannesmann barrier type C
- Mannesmann barrier type D
- Construction fence Light – mobile construction fence for enclosure, visitor flow control, etc.
- Construction fence Profi – for fencing and barrier on construction sites and at events
- GIGS stage barriers – stable stage barriers for high pedestrian traffic
- Rubber runners to protect the ground and prevent slipping
Buy police grids
You can buy police grids from allbuyone with first-class service, which includes competent, friendly advice and short delivery times. Browse through our shop, where you will find suitable barrier systems for large and small events, construction sites and much more. If you have any questions and would like individual advice, you can reach us personally at +49 89-122 89 06 22.
