cable protector trafficable | 5 channels | Cable protector trafficable | 5 channels, up to 5 t load capacity | hard rubber cable protector black with yellow PE cover | low-priced overrun protection for cables & hoses
Basic cable protectors
Basic cable protectors
| Number of cable ducts: | 5 channels |
|---|---|
| Type: | straight segment |
| Load Capacity: | 5 t |

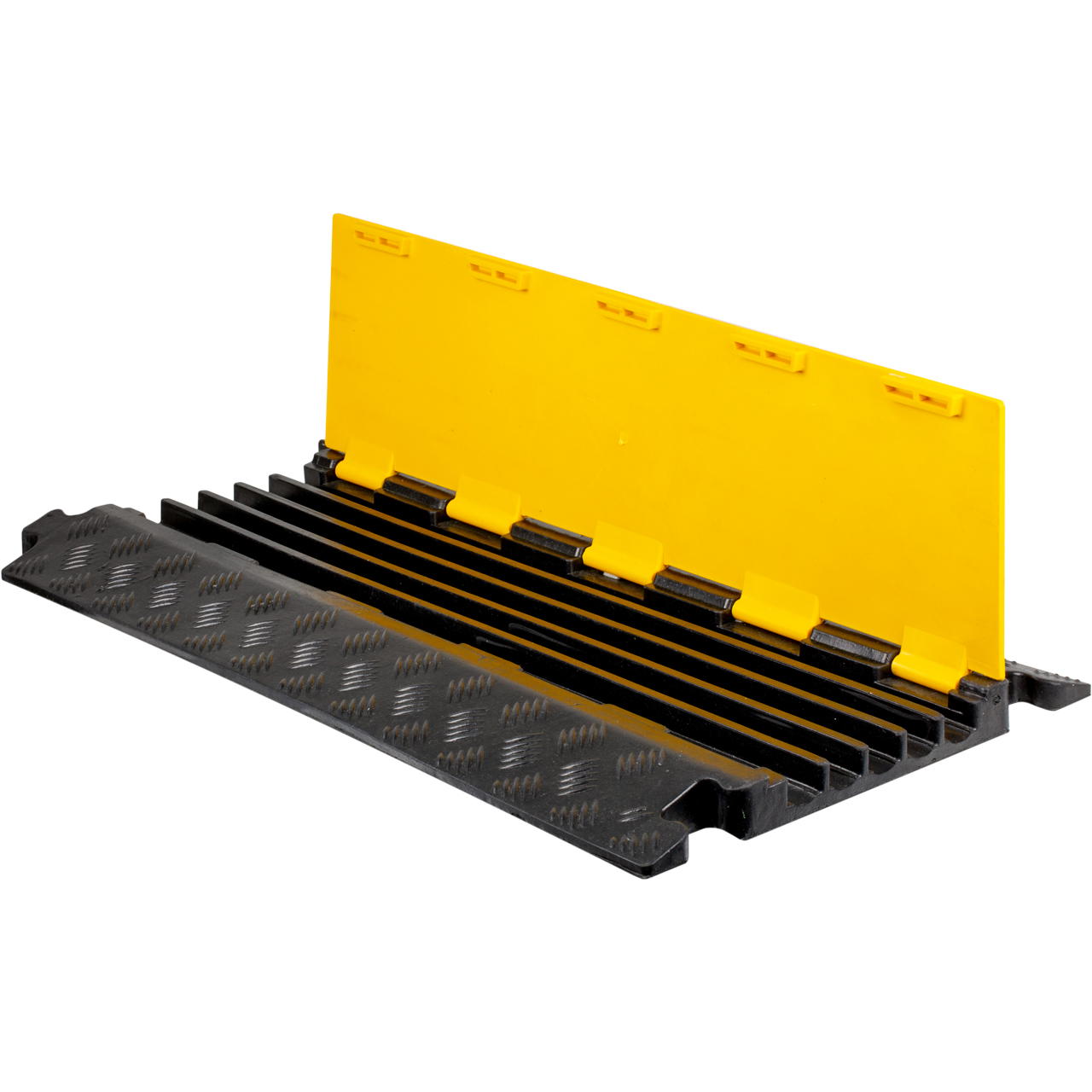

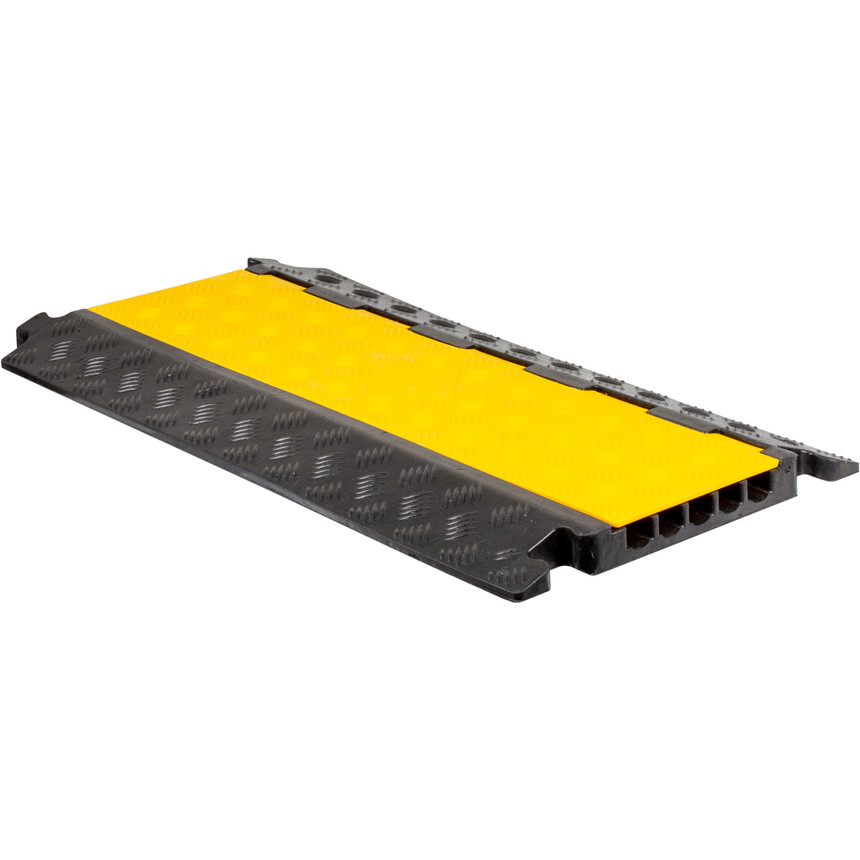

The cable protector trafficable is an affordable and yet robust cable duct made of heavy-duty hard rubber. T he floor-mounted cable protector is available in two versions:. The cable protector trafficable is designed to protect your cables, pipes and hoses. It comes with five cable channels (each 35 mm wide x 30 mm high) and as a three-channel cable protector with channels that are each 50 mm wide and 45 mm high. The outer dimensions of the rubber cable protectors with a polyethylene cover are as follows: 50 cm and 91 cm, or 95 cm incl. connector (width x length). The cable protectors are only 5 or 7 cm high to prevent tripping.

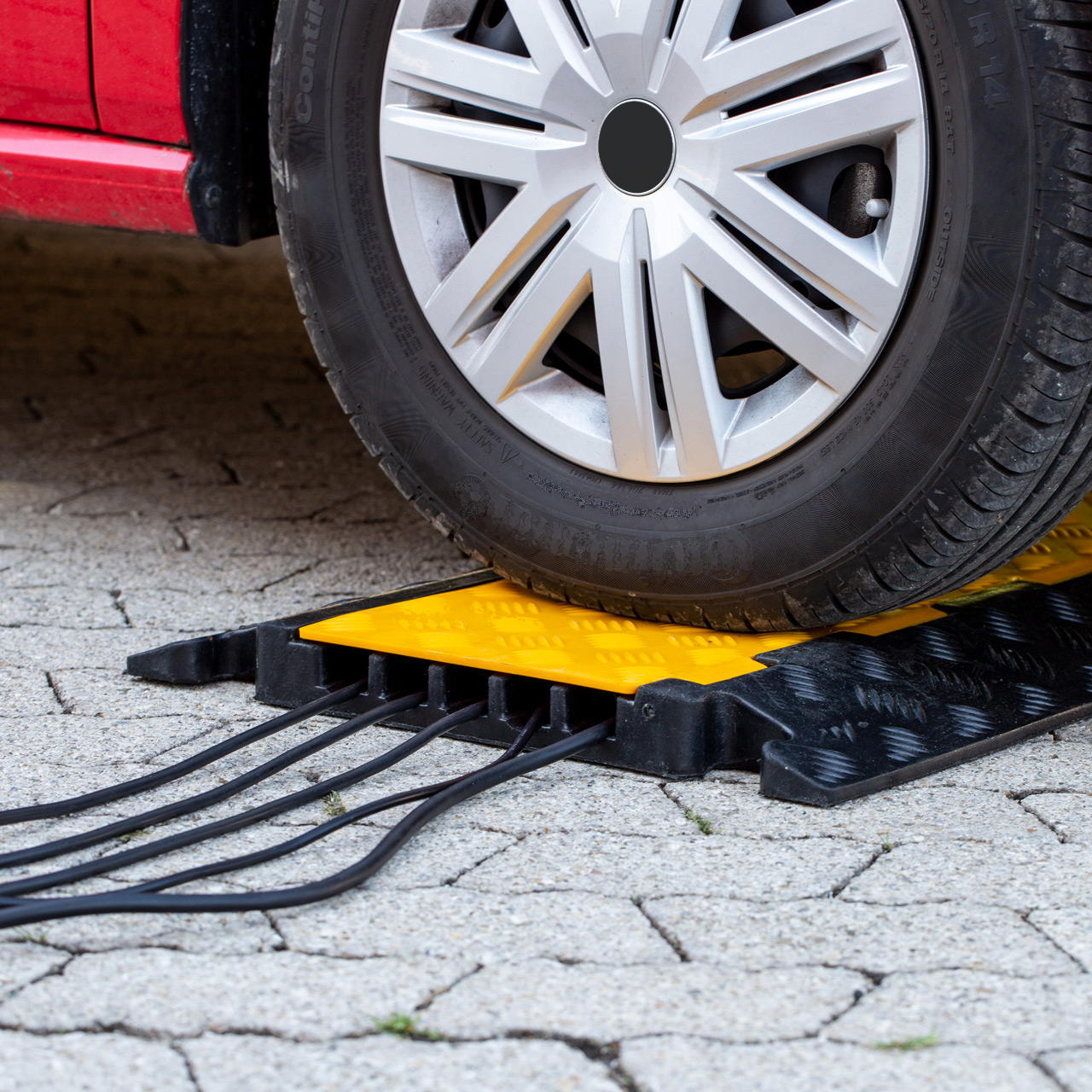

The load capacity of the cable protector trafficable is a maximum axle load of 5 t for both versions and is thus primarily suitable for car traffic and can be driven over by appropriate lorries. The cable protector material is not suitable for heavy goods traffic.
The tongue and groove connector system ensures quick and easy installation. The cable protectors are easily recognisable in the colours black and yellow. The drive-over cable protector safely stows cables, lines and hoses and protects pedestrians from tripping hazards. The dead weight of 14.5 kg or 19.5 kg in the 3-channel variant ensures that the floor-mounted cable protector lies securely on the ground.
You can buy the cable protector trafficable at a very affordable price in the allbuyone shop, with low shipping costs and expert advice. Our wide selection offers many other cable protectors, including those from the brands Defender, Cableguard, Ranger, Yellow Jacket. For example, one of these is the 5-channel cable protector for heavy loads, as well as the cable protector with 3 channels or a hose bridge for special use.
| Number of cable ducts: | 5 channels |
|---|---|
| Type: | straight segment |
| Load Capacity: | 5 t |
Cable protector trafficable – affordable cable protection at a low price
The cable protector trafficable offers visitors to events a suitable trip protection as well as reliable overrun protection for cables, lines and hoses up to a maximum load capacity of 5 t axle load. The basic cable protector offers protection against mechanical and weather-related damage.
Despite being made of rubber, the cable protectors are very robust. The hardness range is 75 - 85 Shore ± A, which indicates a high level of durability. The floor channel is also resistant to oil, acid and petrol. In addition to its high resistance to liquids, the cable protector is also temperature resistant from -10°C to +65°C. The cable protectors are compatible and can be connected to each other.

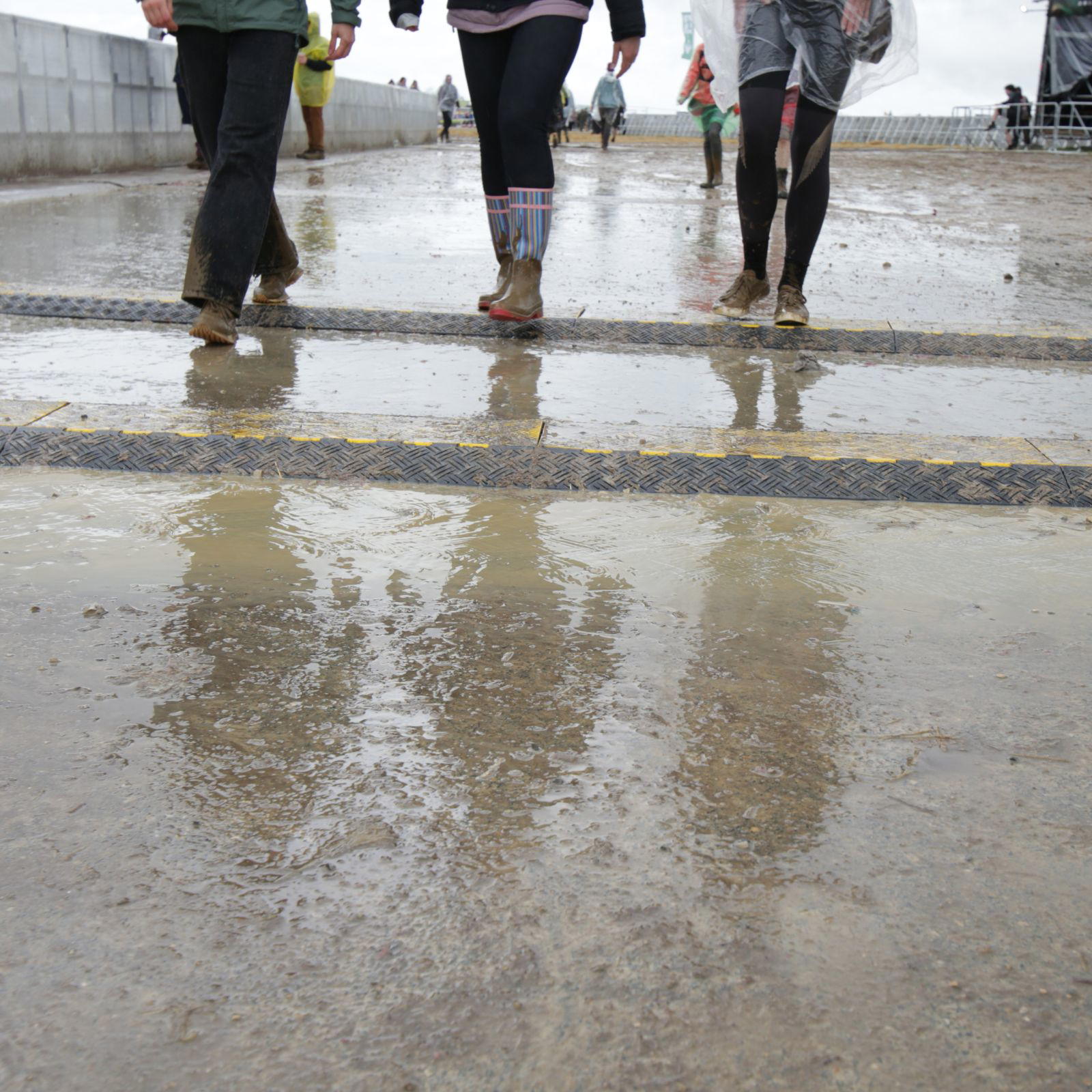

At events such as markets, trade fairs or other events, the cable protectors provide reliable cable protection and at the same time help to protect pedestrians from tripping. The cable protector trafficable is available in two different versions: 5 cable channels and 3 cable channels. Both cable protectors differ not only in the number and size of the channels, but also in height.
You can buy the cable protector trafficable in a version with 5 or 3 cable channels. In addition to this cable protector, you will also find many more cable protectors, as well as fine mesh rubber mats, barrier posts, barrier tape, chalk spray for marking and much more.
Please note: the cable protectors are not suitable for heavy traffic. We also recommend that they be used only outdoors because of their strong rubber odour.
Cable protectors trafficable: dimensions and details of overrun protection
We offer the cable protector trafficable in two different versions. In addition to weight, length and width, the two cable protectors also differ in the number of cable ducts.

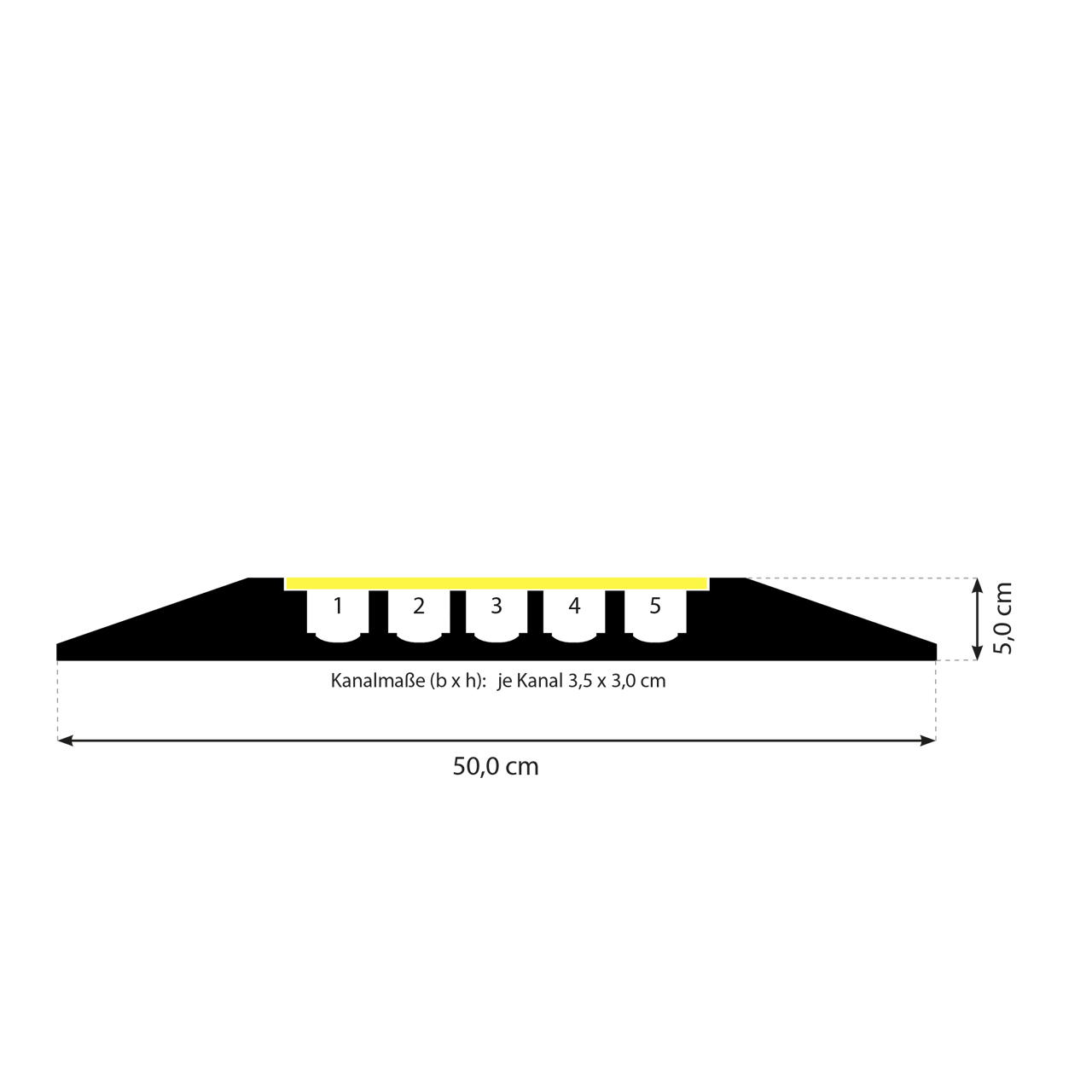

Cable protector trafficable 5 cable ducts
- Length: 910 mm (950 mm incl. connector)
- Width: 500 mm
- Height: 50 mm
- Weight: approx. 14.5 kg
- 5 cable ducts (width x height): 35 mm x 30 mm
- cable diameter: up to ø 30 mm
Cable protectors trafficable: 3 channels
- Length: 910 mm (950 mm incl. connector)
- Width: 500 mm
- Height: 70 mm
- Weight: approx. 19.5 kg
- 3 cable channels (width x height): 50 mm x 45 mm
- cable diameter: up to ø 45 mm
: You can connect both cable protectors to each other. This is because the 5-channel and 3-channel cable protectors have the same width and the same connection system.
Product details on quality, material and workmanship
- Model: cable protector trafficable
- Design: straight element
- Cable duct: 5 or 3 cable ducts
- Load capacity: up to a maximum axle load of 5 t
- colour of cover: yellow
- colour of housing: black
- Material: recycled rubber (housing), polyethylene (cover)
- hardness: 75 - 85 Shore ± A
- Temperature range: -10°C to +65°C
- Chemical resistance: resistance to oil, acid and petrol
- UV resistance: at least 2 years of UV resistance
color="green"The cable protectors for loudspeakers and other applications can be stacked for transport on Euro pallets. For shipping, 40 cable protectors per design will fit on a pallet.
Using the rubber cable protectors, equipping with cables and hoses

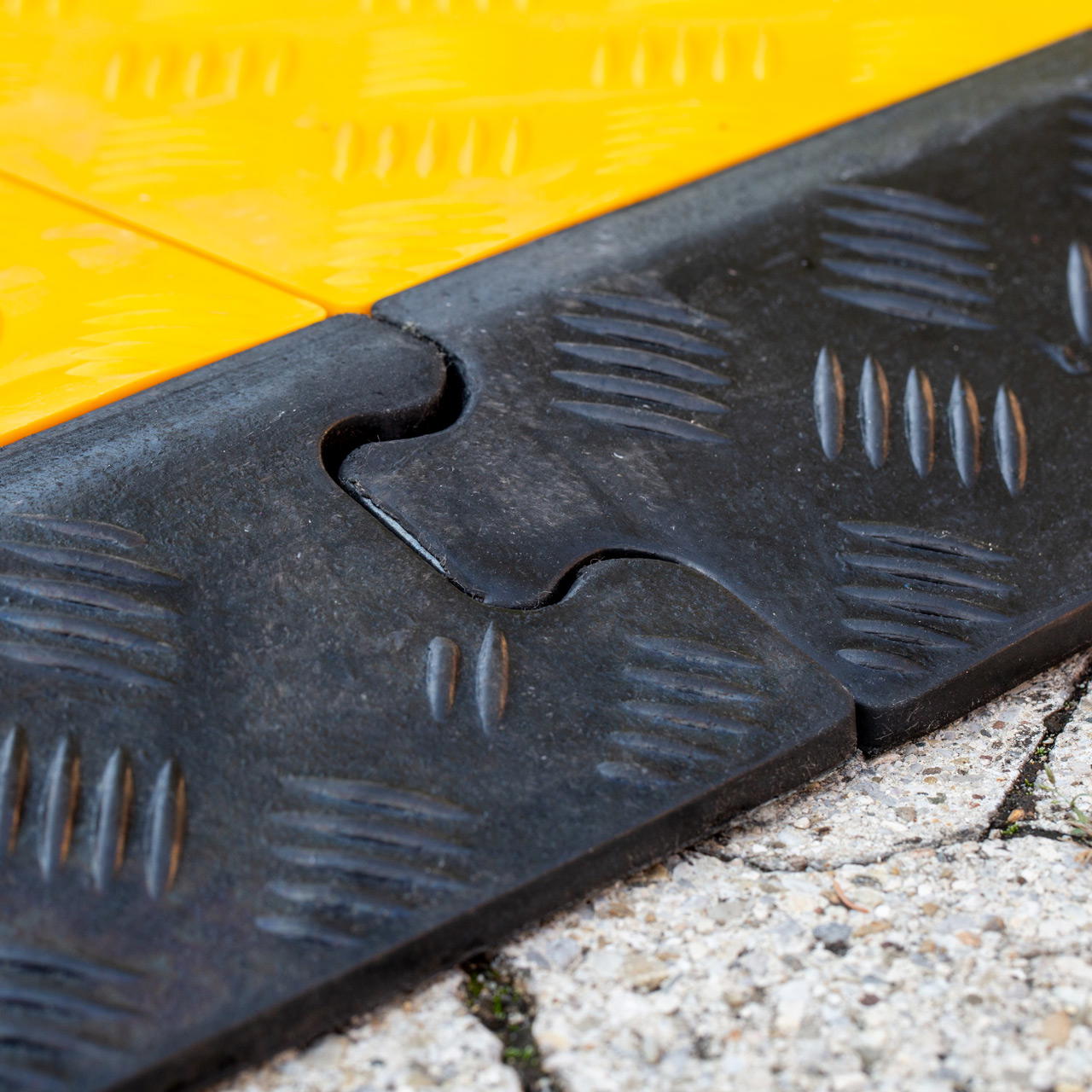

Both cable protectors made of hard rubber are connected to each other by a simple tongue and groove locking system. Each element has two pins on one side and the matching recess for receiving these pins on the other. With the help of this system, any number of cable protectors can be connected to each other.

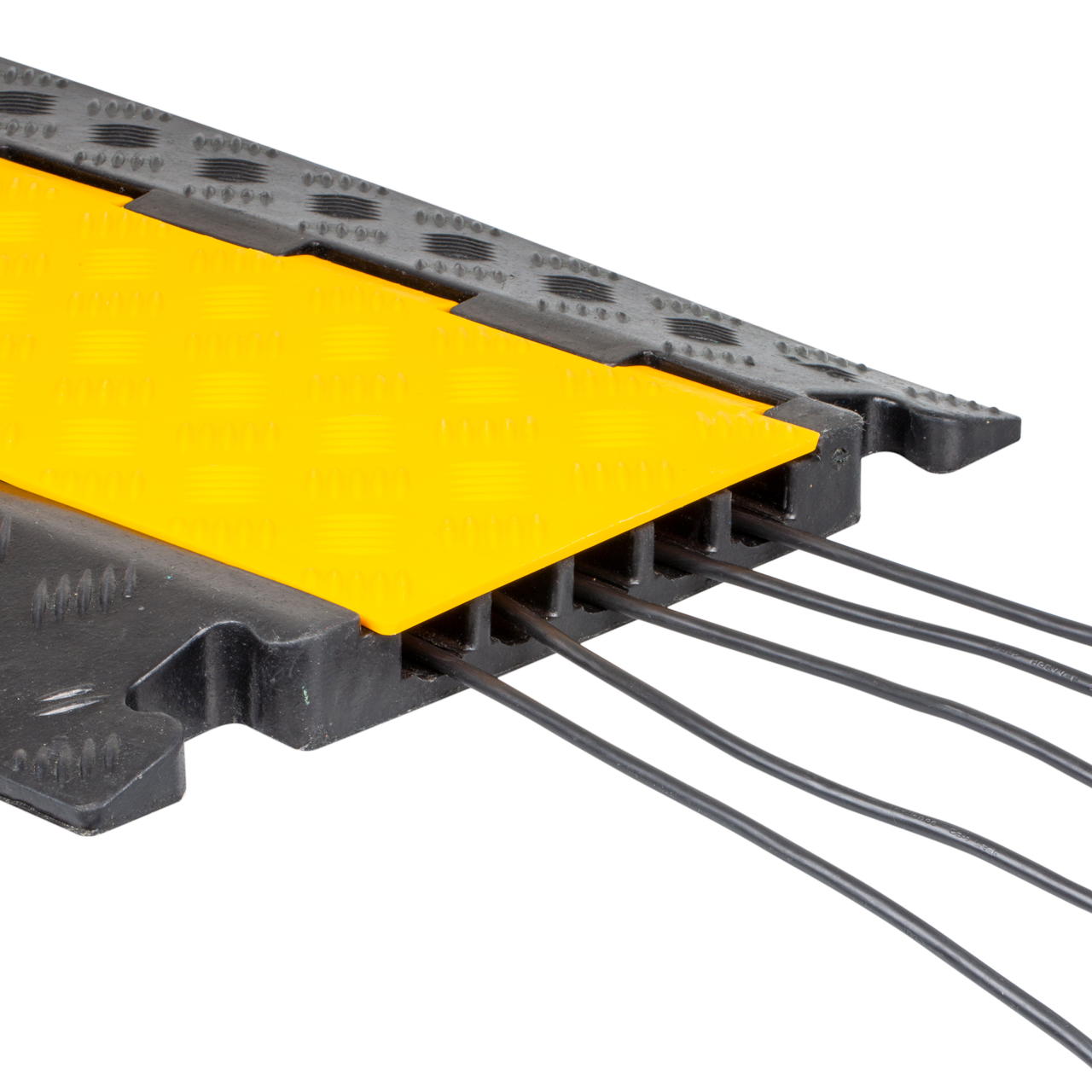

First connect as many cable protectors as necessary to achieve the length to be bridged. As soon as all cable protectors are connected to each other, you can open the yellow cover of all cable protectors. Now that all cable ducts are exposed, the cables, lines or hoses can be routed in them.
Full protection]and maximum load capacity can only be guaranteed if the cables are laid properly. Therefore, please make sure that the cable protectors are connected to form a closed unit and that they are flush. The lid should lie flat on the base to avoid the trip protection becoming a tripping hazard. Please also make sure that the individual components are at the same height and that there are no major unevennesses between the individual cable ducts. This is the only way to ensure a seamless connection. The cable protectors are not suitable for bridging shafts, trenches or other depressions. In addition, no platforms, trusses, scaffolding or other components may be supported on the cable protectors.
Questions about ordering, use and selection? We are here for you if you need help!
You don't often buy cable protectors trafficable by vehicles, do you? That's why it's perfectly all right if you're not yet an expert.
That's what we're here for. We have gained a great deal of experience in dealing with overrun protection and we know what matters. We are happy to help you with our products and work with you to find the right one for you.
Simply send us an email or talk to us in person on +49 89-122 89 06 22
Clean the drive-over overrun protection and store it in the warehouse.
The cable protectors are particularly easy to maintain and do not require much care. After intensive use in the meadow, on the construction site or at the event, the cable protector can be washed clean with a steam cleaner. Even stubborn dirt can be removed quickly and easily.
The cable protectors are best stacked on a pallet and the cable protectors are secured with a lashing strap to prevent them from slipping. They can be quickly moved from A to B on the pallet and do not take up much space in the warehouse.
Cable protectors as speed bumps to calm traffic
Cable protectors not only protect cables, pipes and hoses from damage, they also prevent tripping hazards for pedestrians. In addition to this, cable protectors can also be used to calm traffic by acting as speed bumps. The speed humps are laid across the road and are clearly recognisable to drivers as obstacles. Drivers will therefore reduce their speed in order to be able to drive over the overrun protection safely and slowly. Reducing the speed not only reduces the risk of danger, but also prevents dust from being kicked up on construction sites.
their high load capacity, not all cable protectors are suitable for use on public roads. Always observe the applicable, country-specific road traffic regulations. The laying of cable ducts in public traffic requires a permit and must also be marked by information signs.
According to our research, there are no legal regulations for traffic on private property. The installation of cable protectors to protect cables and hoses and prevent tripping is therefore possible anywhere on private property. The height of a cable protector is important when it comes to car traffic. DEKRA recommends a clearance of 11 cm. This is to ensure that vehicles with low ground clearance that are also approved according to the German Road Traffic Licensing Regulations (StVZO) can drive over the cable ducts without damaging them.
rubber hose bridge and other cable protectors from our range
Our wide range of cable protectors also includes a hose bridge and cable protectors for the office and small events. The cable protectors differ fundamentally in terms of load capacity, weight and the number of cable ducts. Popular products from our shop include:
- The affordable cable protector Ranger (5 cable channels)
- high-quality cable protector cableguard black line (1 cable duct or 3 cable ducts)
- Robust rubber hose bridge (2 channels)
- and many more under the heading Production & Assembly / Cable protectors.
Buy cable protector trafficable – low price, fast shipping with delivery to the event
Buy cable protector trafficable, along with many other cable protectors, at a great price, with fast shipping. With our wide selection of cable protectors, we make sure that we have the right product for you. If you have any questions, we are happy to help. You can always reach us during business hours at +49 89-122 89 06 22
