defender mini | black-yellow | Adam Hall 3-Channel Cable Protector 100 x 29 x 4.8 cm | Surface-mounted, flat cable protector with 3 channels | 1x 3.5 x 3.5 cm, 2 x 3.5 x 3.0 cm | 2 t load capacity | high-quality, non-slip quality | incl. logo engraving
Adam Hall Defender Mini Cable Protector
Adam Hall Defender Mini Cable Protector
| Colour: | black-yellow |
|---|---|
| Type: | straight segment |
| Load Capacity: | approx. 2 t on an area of 20 x 20 cm |

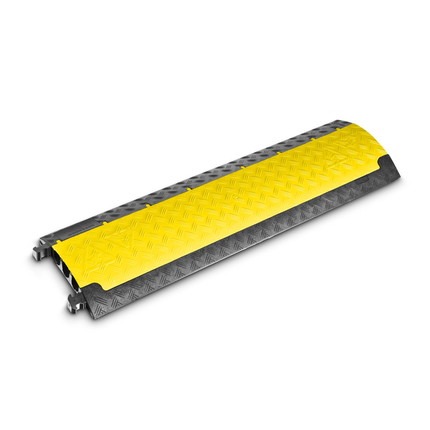

The Defender Mini cable protector is a champion among lightweight products. The universal, compact cable protector is high-quality, robust and weighs less than 5 kg. The cable protector is very flat and, measuring 100 x 29 x 4.8 cm (length x width x height), is particularly easy to handle when laying. It offers 3 channels (1 channel 3.5 x 3.5 cm, 2 channels 3.5 x 3.0 cm) for cable protection.
The Defender Mini can do everything that is required of a professional floor cable protector. This easy-to-install model is suitable for a wide range of applications at events and protects your cables indoors and outdoors from people and light vehicle traffic. The cable protector offers a load capacity of up to 2 tonnes on an area of 20 x 20 cm. The ribbed, non-slip surface and the non-slip base profile provide optimum grip on both sides: it protects people from slipping and prevents slipping on a wide variety of surfaces. For orders of 30 pieces or more, we will customise the cable protectors with your logo free of charge on request .
The Adam Hall Defender Mini cable protector can be purchased here in the shop in two colour options. Order the overrun protection in yellow and black or completely black under "Please select colour". Our range also offers you a large selection of other Defender models as well as the affordable Basic cable protector with 5 or 3 cable channels.
| Colour: | black-yellow |
|---|---|
| Type: | straight segment |
| Load Capacity: | approx. 2 t on an area of 20 x 20 cm |
Adam Hall Defender Mini – Compact, Lightweight and Robust Cable Protector
The high-quality Adam Hall Defender Mini cable protector is suitable for indoor and outdoor cable protection. It is characterised by a low weight of less than 5 kg. Compact dimensions of 100 x 29 x 4.8 cm (length, width, height) make the cable protector handy and easy to lay. The Defender Mini cable protector has three channels for organising cables and lines. The cable protector is made in Germany from robust polyurethane and polyethylene and is resistant to oil, acids and petrol. The cable protector is suitable for a temperature range of -30°C to +60°C.
is only 4.8 cm high , making the mini cable protector ideal for protecting passers-by from exposed cables, which can otherwise pose a tripping hazard. The yellow lid contrasts sharply with the black housing, making the cable protector easily and quickly recognisable from a distance. If you prefer the cable protectors to be less conspicuous, they are also available with a black lid. Coarse, dried-on dirt on the underside can be easily removed by opening the patented, self-cleaning hinge.
Free Branding: On request and for orders of 30 or more, we will cover the costs of customised branding.
Adam Hall Defender Mini Cable Protector Dimensions
The flat 3-channel Defender Mini cable protector has the following dimensions:
- Length: 100 cm
- Width: 29 cm
- Height: 4.8 cm
- 3 hose channels (width x height):
channel 1 and 3: 2x 3.5 x 3.0 cm
channel 2: 3.5 x 3.5 cm
Defender Mini Cable Protector. Product details.
- Manufacturer: Adam Hall
- Model: Defender Mini
- Design: straight element
- Channels: 3
- Weight: approx. 5 kg
- Load capacity: can be driven over up to 2 tonnes on an area of 20 x 20 cm
- Cable diameter: up to 35 mm ⌀
- Colour of cover: either yellow or black
- Colour of casing: black, can be customised on request
- Material: 100% recyclable plastic
Housing TPU (thermoplastic polyurethane)
lid PE (polyethylene) - free from plasticisers
- Hardness range: 88 Shore ± 4 A
- Temperature range: -30°C to +60°C
- Flame protection class: B2 (flame-retardant in B1 available on request in accordance with DIN 4102)
- Chemical resistance: oil, acid and petrol resistant
- TÜV SÜD certified
- DIN 31000, EN 61537
- not suitable for road traffic
color="blue]Lightweight and compact: At less than 5 kg, the cable protector can easily be laid by one person. For transport, up to 72 Defender Mini protectors can be stacked per Euro pallet.

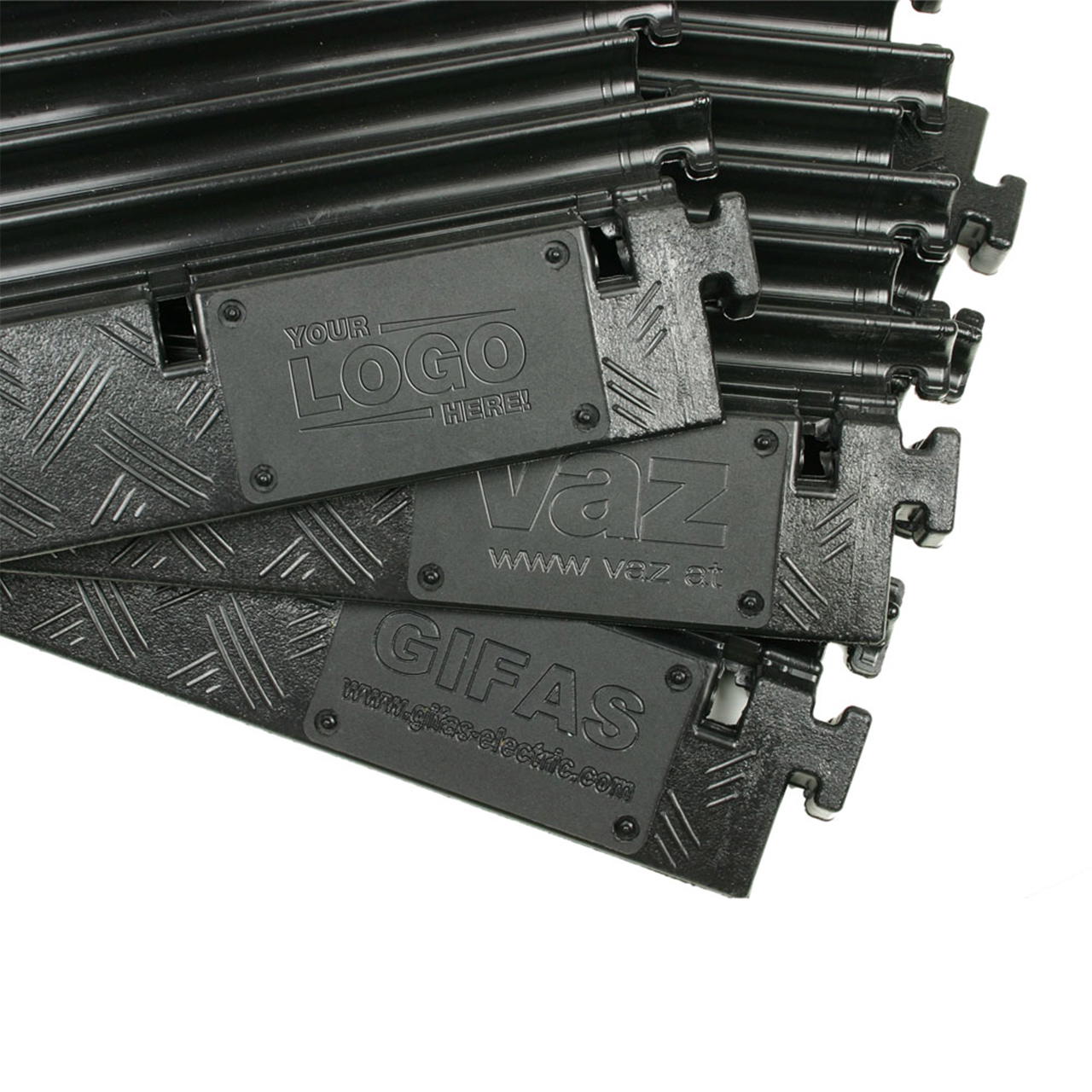

Defender Mini with your logo – free customisation
You have the option of customising the Defender Mini enclosure with your own logo. An area of 7.3 x 16.5 cm offers enough space to present your logo clearly. This turns the cable protector into your advertising medium and avoids confusion with cable protectors from other companies on the premises.
The free offer for branding the cable protectors is subject to a minimum order of 30 units. We will send you the necessary documents as soon as possible if you are interested. Please note:. Delivery time for customisation using laser engraving is 2 to 3 weeks. The Defender Mini is delivered with the Adam Hall Defender logo as standard. It will be shipped immediately.
Installing the Defender Mini cable protector
The easy-to-use and secure tongue and groove locking system connects the elements vertically and prevents the modules from being separated by lateral forces, such as those caused by the movement of people. Any number of cable protectors can be connected to each other using the individual elements . To use the cable protector correctly, it is positioned on firm, level ground. The following element is connected to the male end of the cable protector already in place by inserting the female part from above. This process is repeated until the length to be bridged has been reached. If changes in direction are necessary, we recommend the Defender Mini R or Mini L element (both available on request), which allows a 45° bend without exposing the cables.

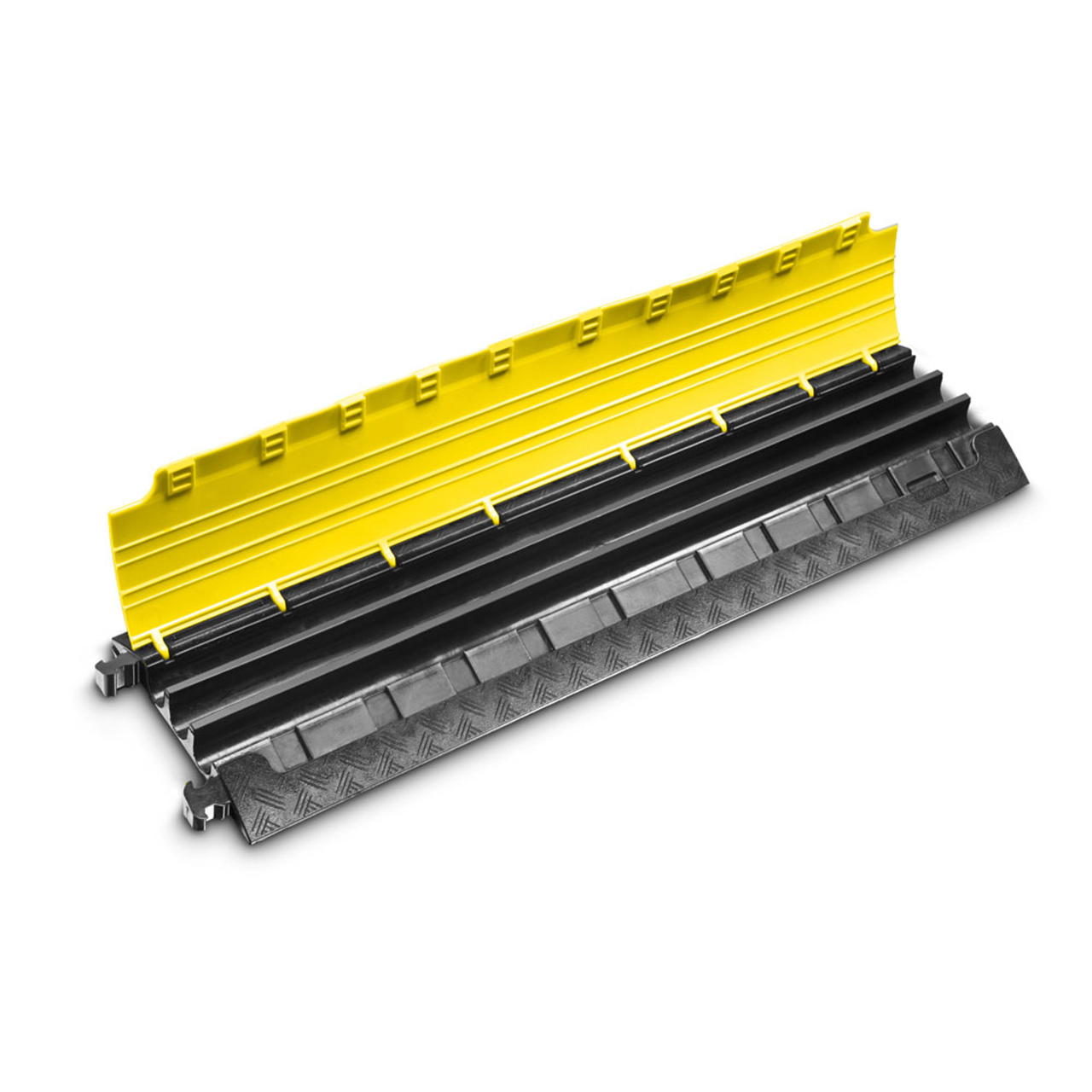

To lay the cables in the cable channels, the flexible lid on the opposite side of the hinges is folded up at the recess. The lid stays in this position independently. Now the channels are exposed to allow audio cables, hoses, etc. to be routed in them. After the cables have been laid from start to finish, the lids can be closed again and pressed firmly shut.
that the cable protectors are connected to form a closed line and that the elements are flush. The cover must snap firmly into the base to avoid the trip protection becoming a tripping hazard. Please also make sure that the individual components are at the same height and that there are no major unevennesses between the individual channels. This is the only way to ensure seamless interlocking of the connectors and full load capacity. The cable protectors are not designed to bridge shafts, trenches or other depressions. In addition, you should not support any platforms, trusses, scaffolding or similar on the cable protectors.
Cleaning and storage instructions
The Defender Mini cable protectors were designed with a patented self-cleaning hinge. Most dried dirt that collects in the chambers on the underside is automatically removed when the lid is opened and closed. The cable protector can also be cleaned with a steam cleaner if it is very dirty. After cleaning, it is recommended to store the cable protector horizontally. Excess lubricant must be removed after cleaning or maintenance.
Defender Mini cable protector in use
Cable protectors reliably protect cables. The Defender models are suitable for protection against mechanical and weather-related damage. Ideally, the Defender Mini cable protector is used in places where there is mainly foot traffic and light vehicle traffic. The non-slip top and the studded bottom provide grip on any surface. The cable protector' s easily noticeable signal colours make it particularly suitable for use in the event sector, at trade fairs, markets, roadshows or in industry. The black model is particularly suitable for event needs, for example for laying in front of stages or in backstage areas.
Please note: the Defender Mini is not designed for use on public roads. Due to the manufacturing process, the cable protectors may have silicone residue on the surface when delivered. To ensure that the Defender Mini has full grip, this should be removed using washing-up liquid before first use.
The Defender Mini cable protectors]are suitable for low-voltage cables (up to 500V, such as communication, control and power supply cables) and thus provide protection against voltage transfer. Rigid gas pipes should not be laid in cable protectors. Emergency braking and turning on the spot will damage the overrun protection.
Extreme temperatures can cause the materials to change. For example, TPU becomes softer in high temperatures. At very low temperatures, TPU becomes harder, which reduces elasticity.
Accessories for Adam Hall Defender Mini Cable Protectors
We do not stock accessories for Defender cable protectors in our standard range. However, we can supply you with suitable products on request when you order from:
- Mini ER F and Mini ER M
end piece for a secure and tidy finish to the cable protector - Mini R and Mini L
45° angle element, right or left - yellow and black cover
