defender ultra l | Heavy-duty and road traffic cable protector | 70.0 x 78.3 x 13.9 | overrun protection with 4 channels | 2 hoses up to 11 cm Ø | black-yellow | extremely durable cable protector for indoor and outdoor use on floors and roads

You can buy the Defender Ultra L here in our shop at a low price with fast shipping. Whether on a construction site or a festival grounds, this cable protector is suitable for almost any cable cross-section. The heavy-duty overrun protection has a total of 4 cable channels. Its main features are 2 extra-large channels. The hose channels provide professional protection even for A-hoses and many couplings . The dimensions of the cable ducts are: Ducts 1 and 4: 3.3 x 5.0 cm, ducts 2 and 3: 12.0 x 11.3 cm (W x H).

The heavy-duty bridge , designed for continuous use, offers aload capacity of 5 tonnes on an area of 20 x 20 cm. It can be used safely in road traffic. With almost square dimensions of 78.3 x 70.0 x 13.9 cm (width, length, height), pointed connecting pins, a non-slip profile on the underside and a weight of approx. 30 kg, the yellow and black cable protector sits very securely on the ground.

The Defender Ultra L is TÜV SÜD-tested and complies with flame protection class B2. The heavy-duty bridge is also available with B1 certification on request. The reliable cable, hose and personal protection has good insulating properties and high chemical resistance. The heavy-duty bridge is oil-resistant, acid-resistant, solvent-resistant and petrol-resistant.

The Defender Ultra L can be installed in a wide temperature range from-30°C to +60°C. The yellow, non-slip ribbed cover provides a high warning effect even from a distance . Equipped with the self-cleaning hinge patented for all Defender models , coarse, dried dirt on the underside can be quickly removed by simply opening and closing the cover.

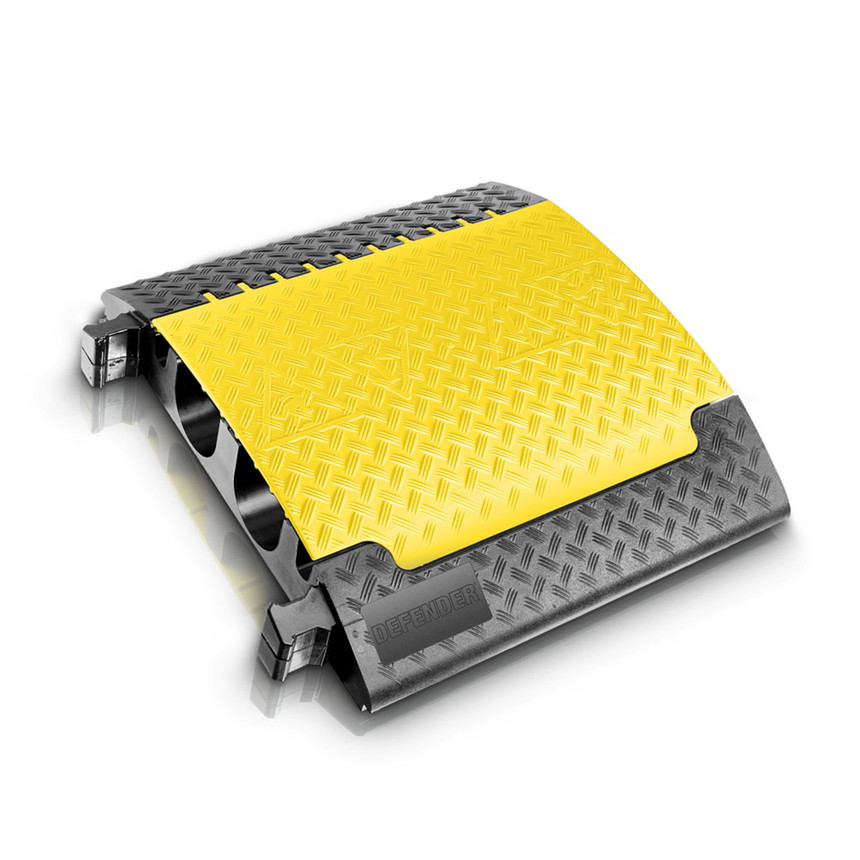

Defender Ultra L cable protector dimensions

The almost square Defender Ultra L cable protector ( ) is the ideal solution for heavy-duty traffic on construction sites and at large events. The extremely robust overrun protection has the following dimensions:

Couplings, plug housings and other fragile parts should not be larger than 100 mm when stored in the hose channels.

Defender Ultra L cable protector Product details

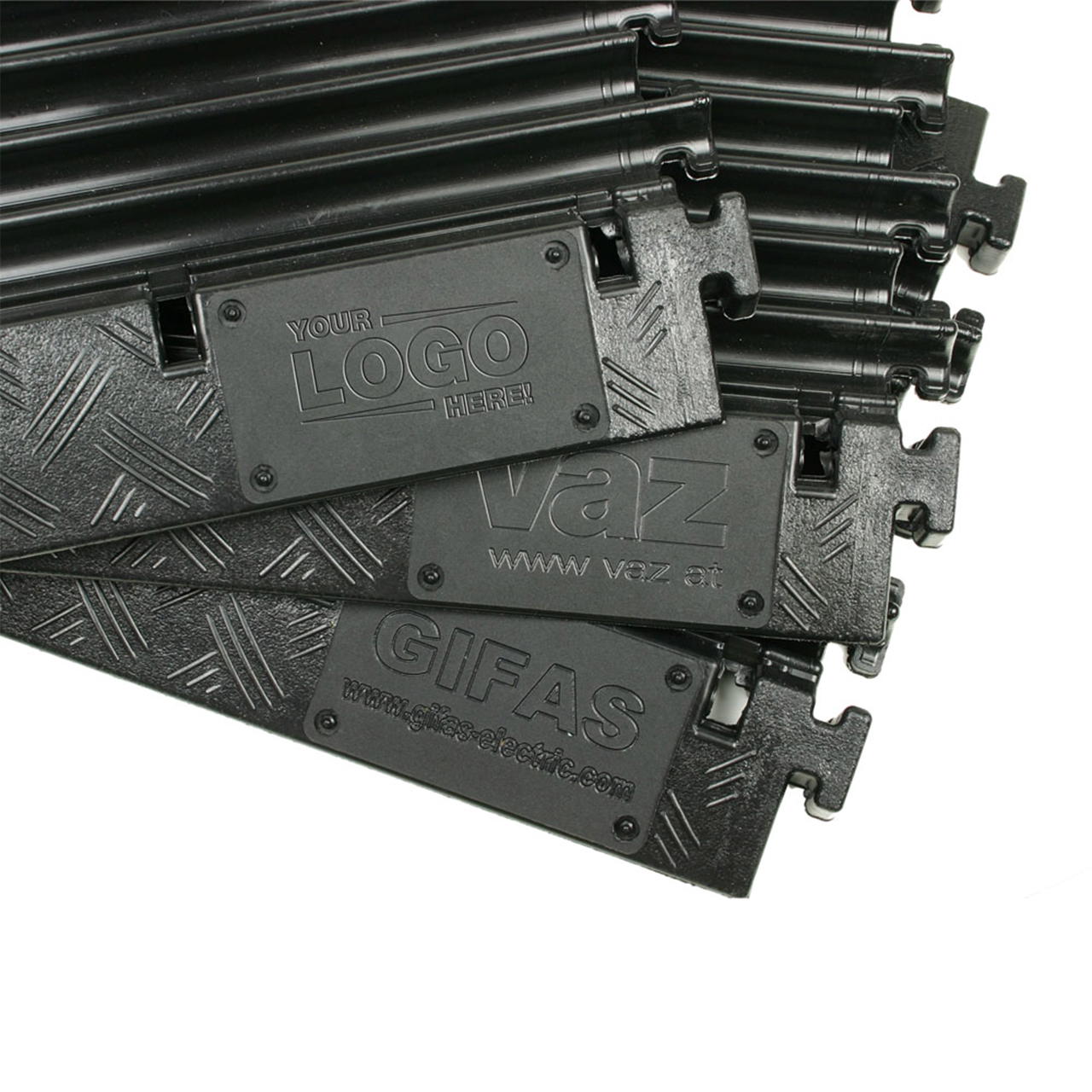

Defender Ultra L with your logo – free branding

Would you like to customise the Defender Ultra L housing with your company logo ? The housing offers a surface area of 7.3 x 16.5 cm to clearly display your logo.

Our free offer for you: Laser engraving is available for orders of 30 pieces or more. We will cover the costs for you! Fast shipping: Delivery takes 2 to 3 weeks for customised orders . Without custom branding, the Defender Ultra L is shipped with the Adam Hall Defender logo as standard. Shipping is immediate.

Installation of the Defender Ultra L cable protector

The Defender Ultra L is installed using the integrated, secure tongue and groove locking system. Place a cable protector on the ground and insert the next element with the female part from above onto the connecting pins of the previously positioned cable protector. Repeat this process until the desired length is reached.

Installation is easy and connects the elements vertically. This prevents the individual cable protectors from separating due to lateral forces. Any number of Defender Ultra L elements can be connected together.

To lay cables or hoses in the cable ducts, first fold up the flexible cover at the recess. The cover remains in this position by itself. The ducts are now exposed and the cables can be laid in them in an orderly manner. Once the cables have been laid throughout, the cover can be closed and pressed down firmly.

Please always ensure that the overrun protection forms a closed line and that the elements are joined together flush. When laying the cable protector, ensure that the surface is firm and level. This is the only way to guarantee full load capacity. The yellow cover must snap firmly into the base. If this is not the case, the trip protection can easily become a trip hazard.

You cannot use the Defender Ultra L cable protector to bridge shafts, trenches or other depressions. In addition, you should not support crossbars, platforms, scaffolding or similar structures on the cable protector.

Defender Ultra L cable protector in use

Developed for rental, the Defender Ultra L is designed for areas subject to heavy use with heavy traffic and high footfall. It reliably protects all cables as well as water and sewage pipes from mechanical and weather-related damage. The ribbed, non-slip top and the studded underside ensure ideal grip on any surface . , the cover is easy to spot even in dull weather thanks to its bright yellow signal colour.

The Defender Ultra L cable protector is designed for cables and lines in the low-voltage range (up to 500 V, such as communication, control lines, power supply). The cable protector protects against voltage transfers. Please do not route rigid gas lines through this cable protector. These cable protectors are not designed for this purpose.

Extreme temperatures can cause changes to the material. TPU becomes softer in intense heat and harder at low temperatures, which leads to a loss of elasticity.

Notes on cleaning and storage

Like all other Defender cable protectors, the Defender Ultra L cable protector is equipped with a patented, self-cleaning hinge. This intelligent system removes accumulated, dried dirt when the cover is opened and closed. In case of heavy soiling, the cable protector can also be cleaned with a steam jet. The cable protector should be stored in a horizontal position. Please remove any excess lubricant after cleaning.

Accessories for Defender Ultra L cable protectors

• Defender XXL CAP Y
  Yellow cover for XXL and Ultra L

Other cable protectors from allbuyone

Our range includes various cable protectors, which differ mainly in terms of load capacity, weight and number of cable channels. Our carefully selected range includes cable protectors designed for a wide variety of requirements. Take a look at the following products, as you may find the right product for you:

• Other Defender models
• Cable protectors from other manufacturers
  Yellow Jacket – high quality and very popular
  Ranger – inexpensive and heavy-duty
  Cableguard – absolutely high quality at fair prices
