Isoband AT 7
Isoband AT 7

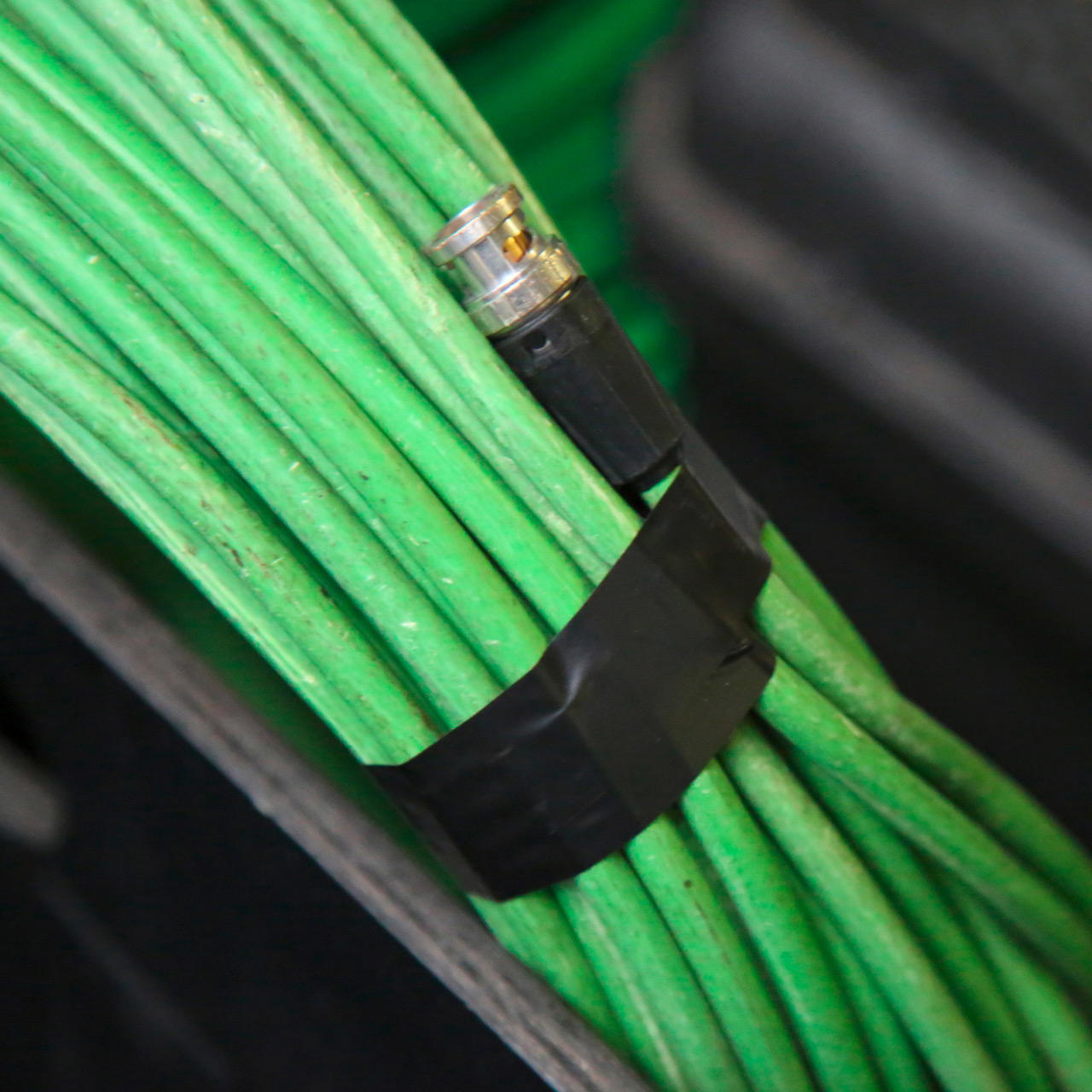

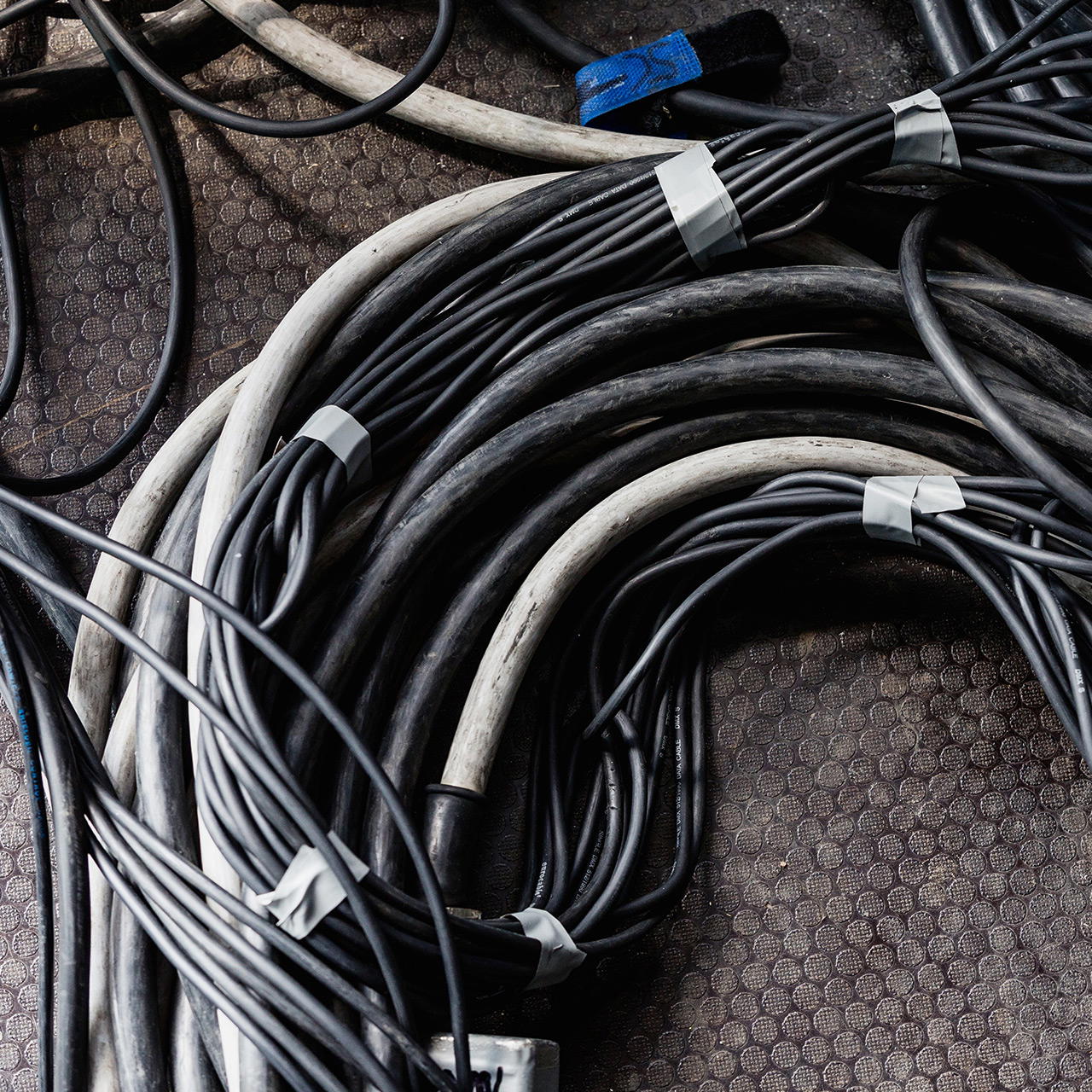

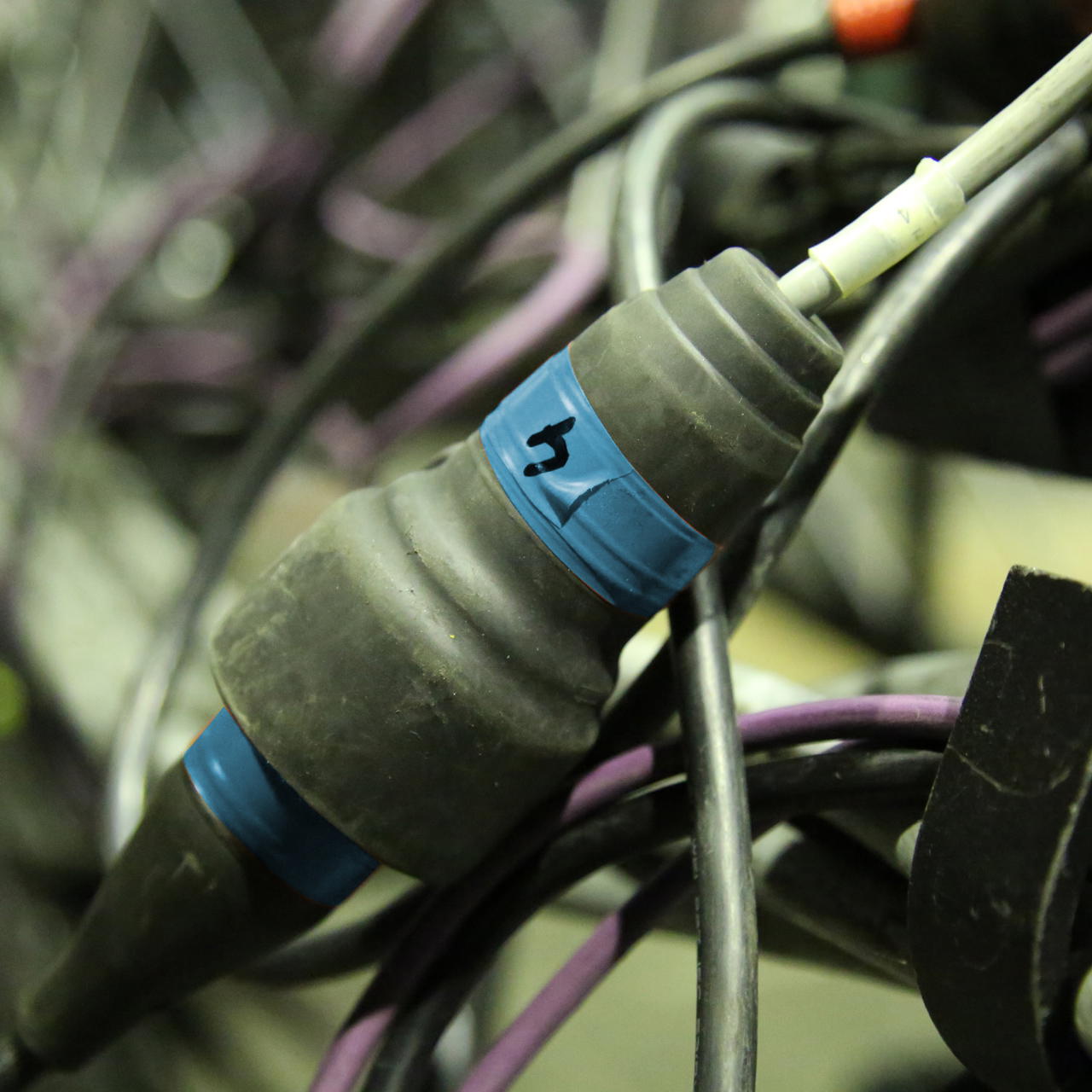

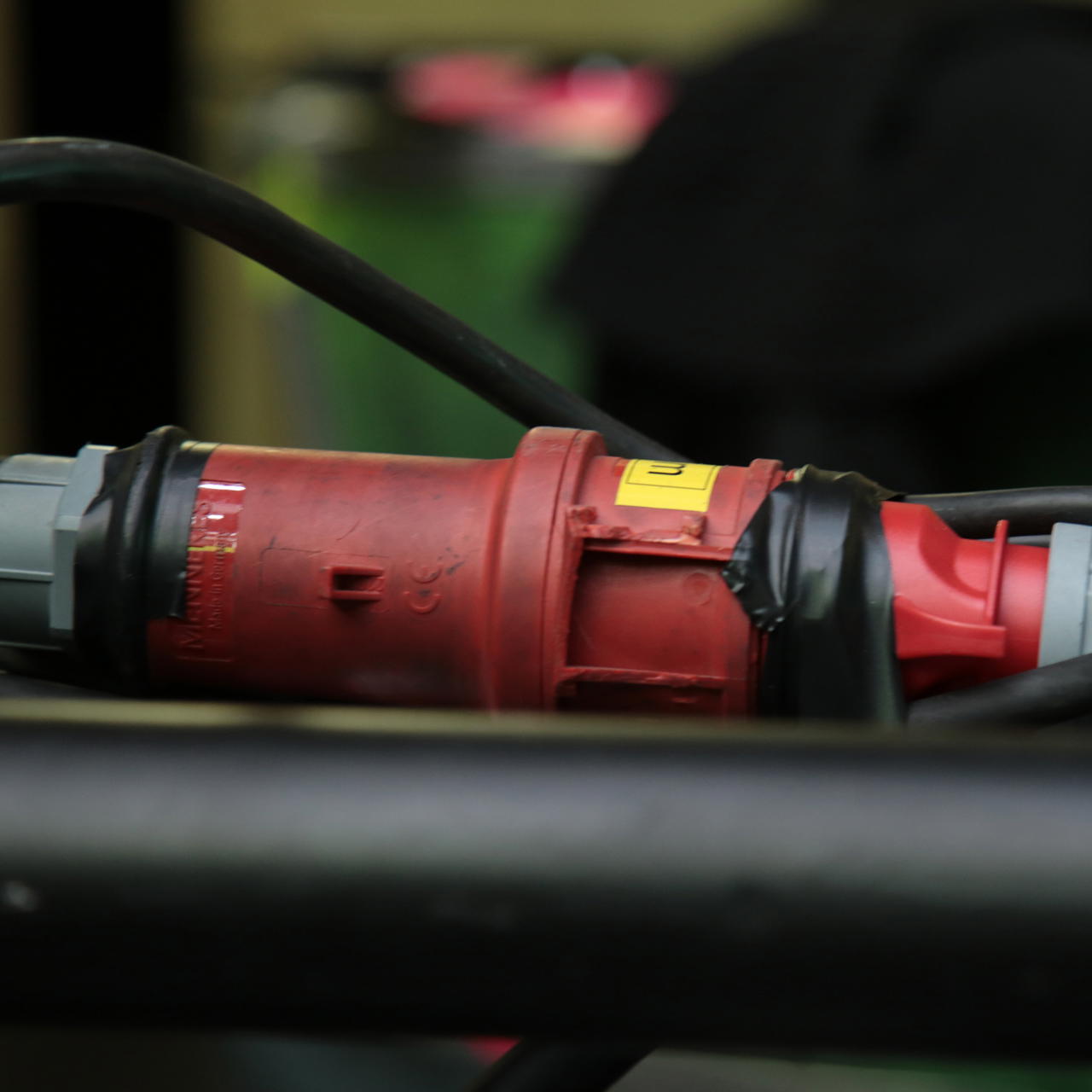

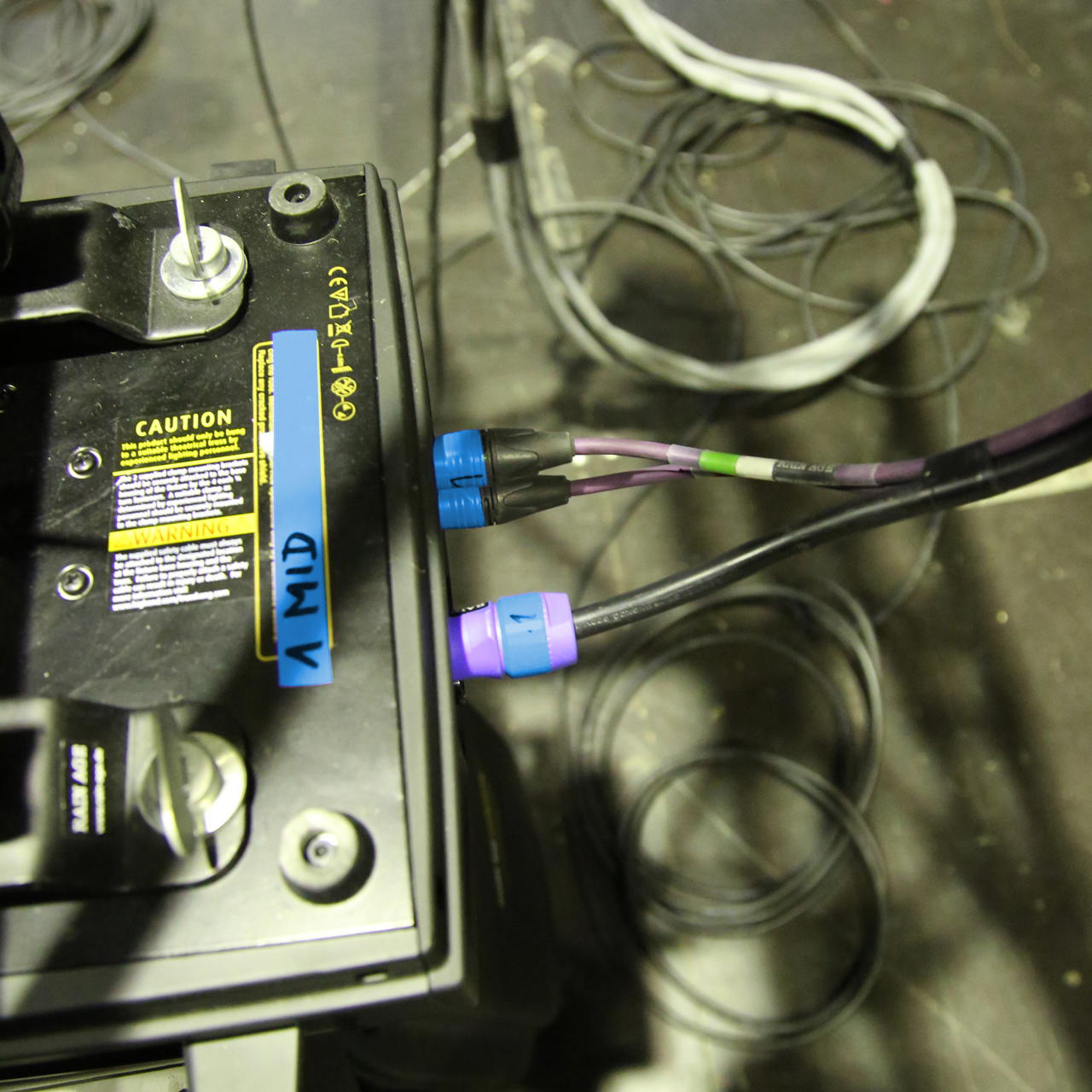

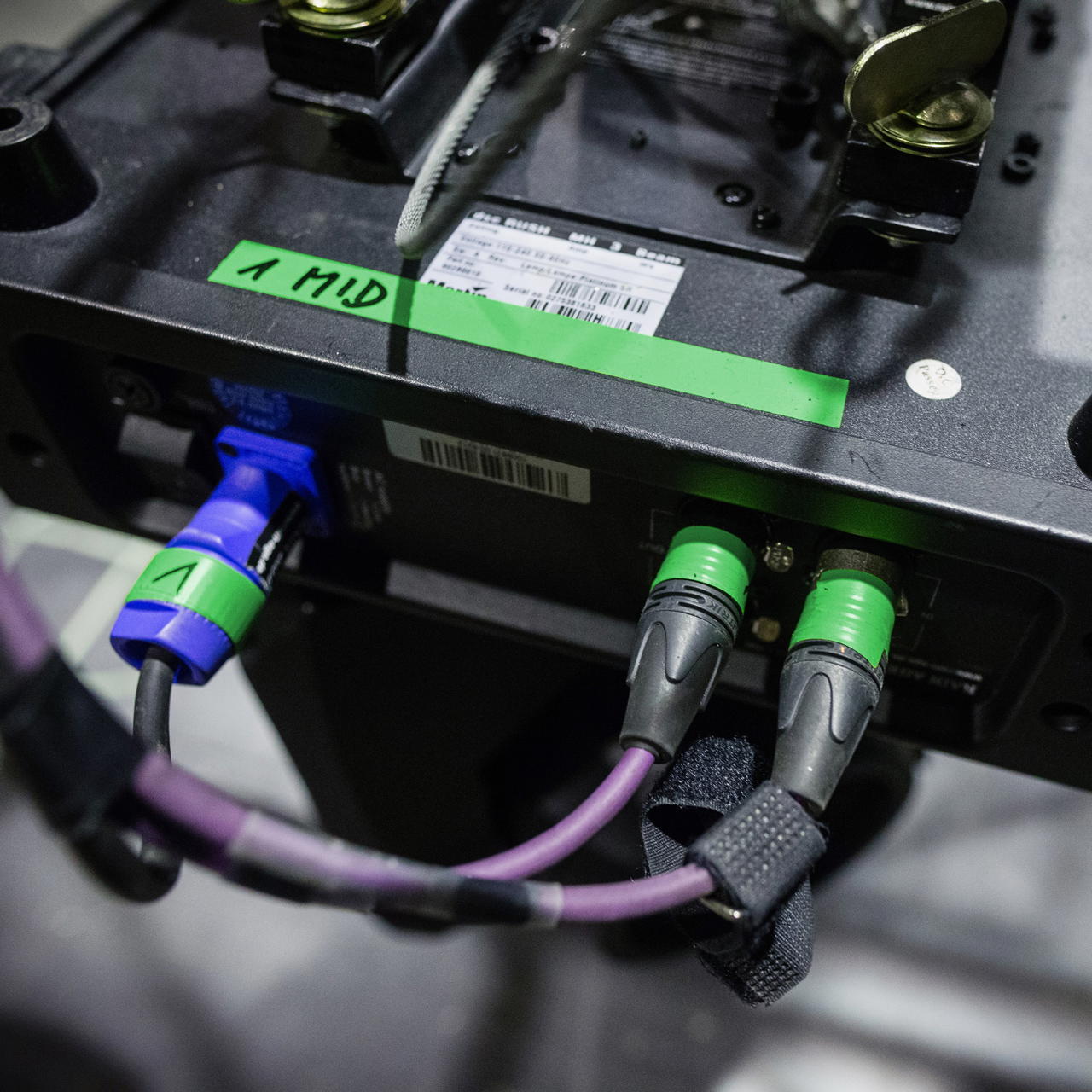

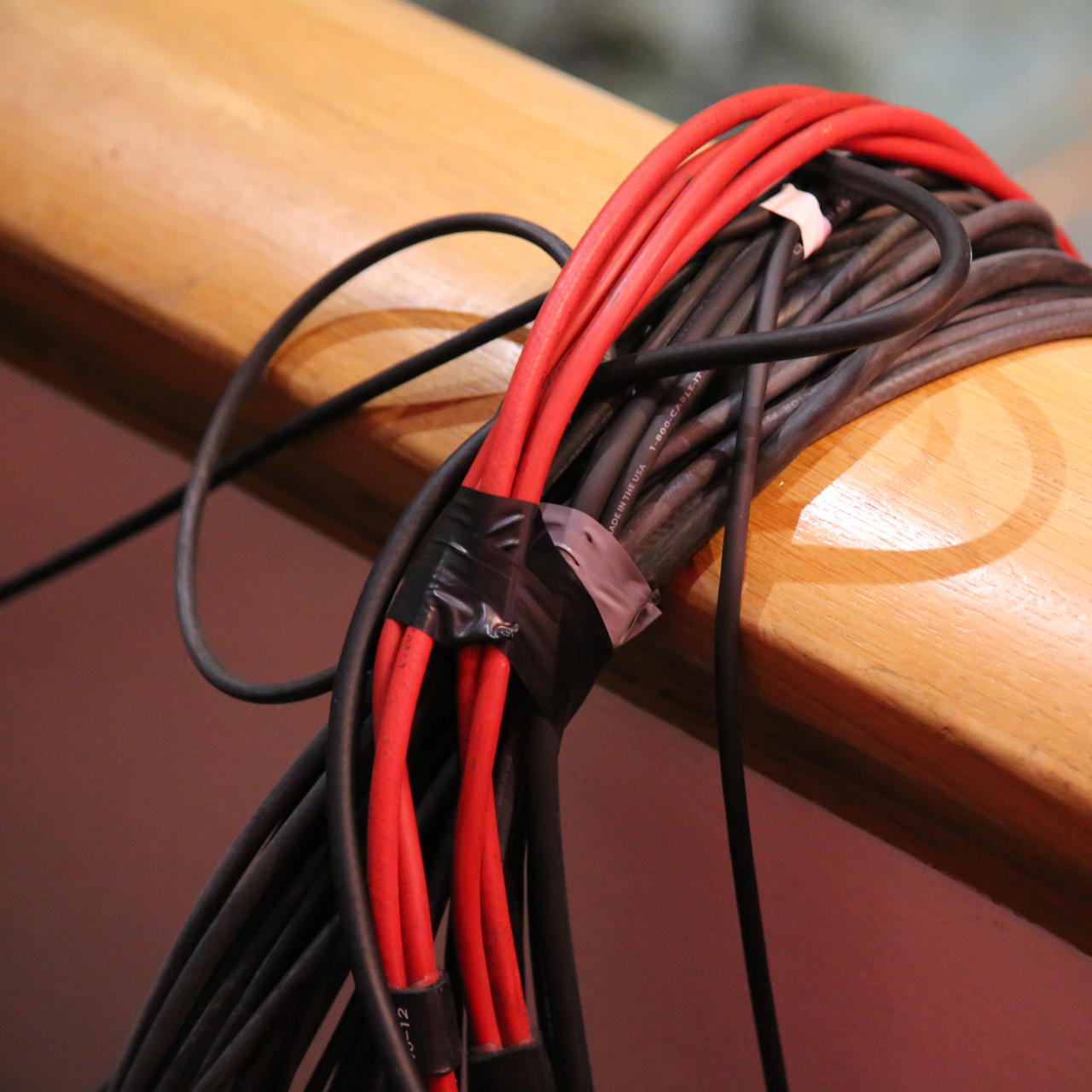

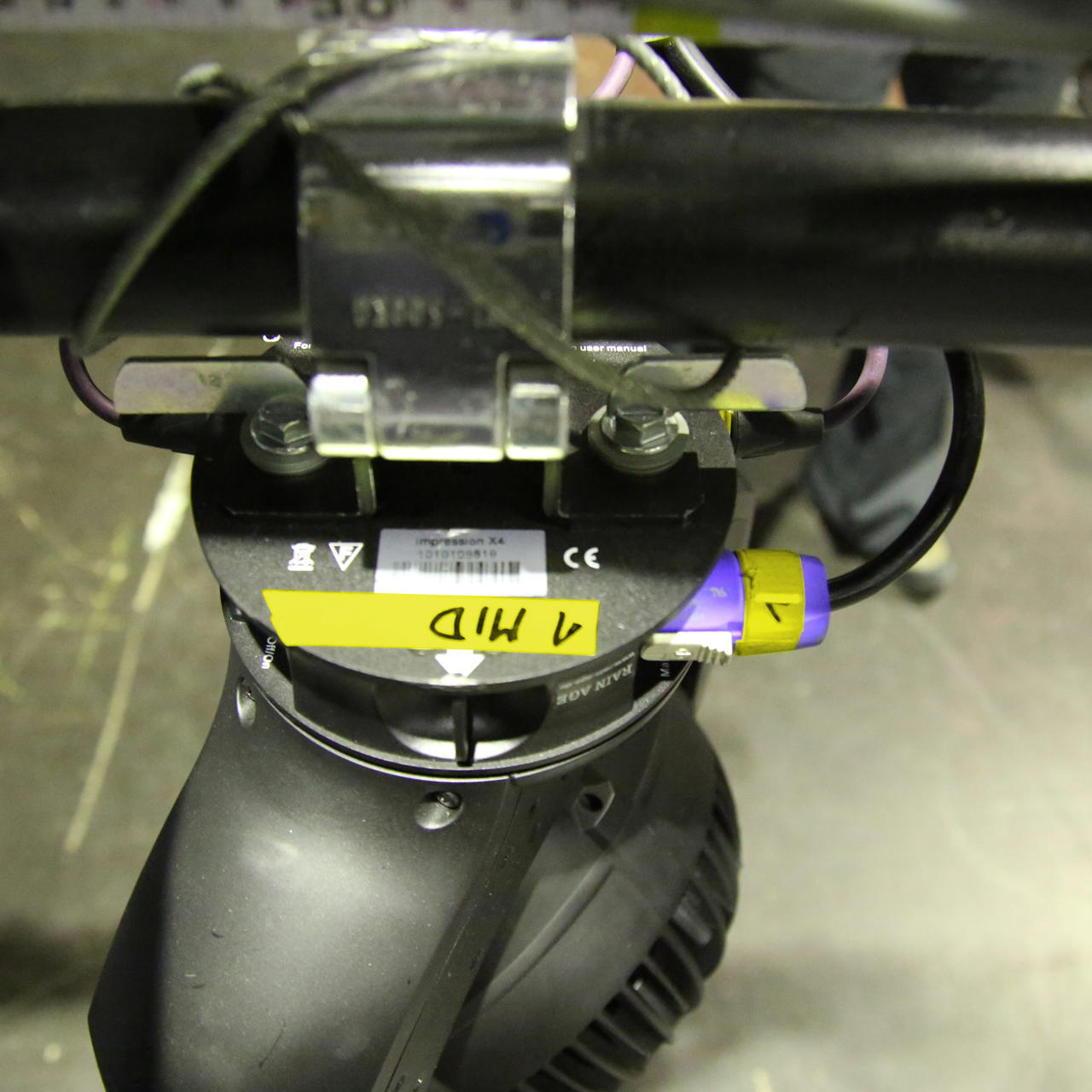

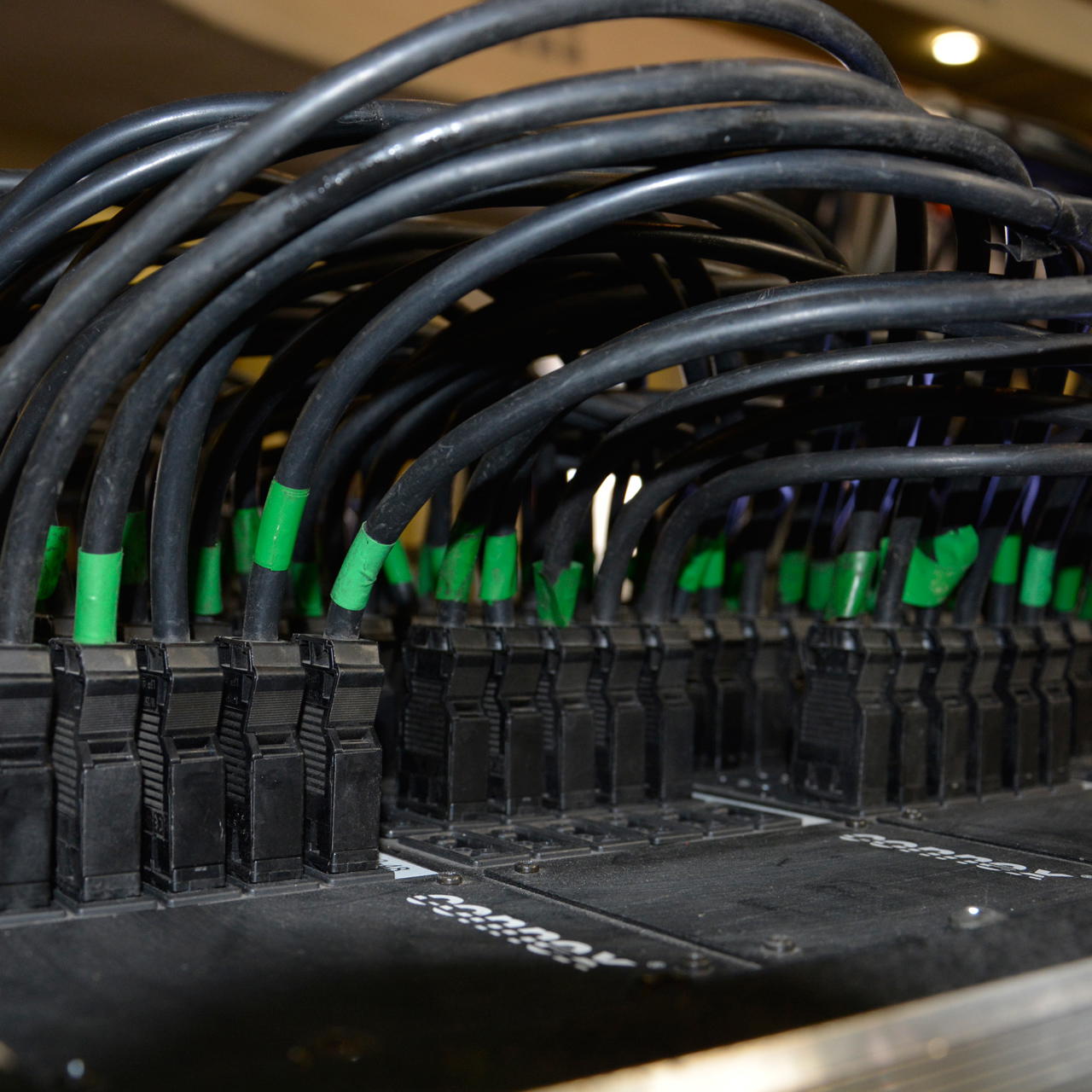

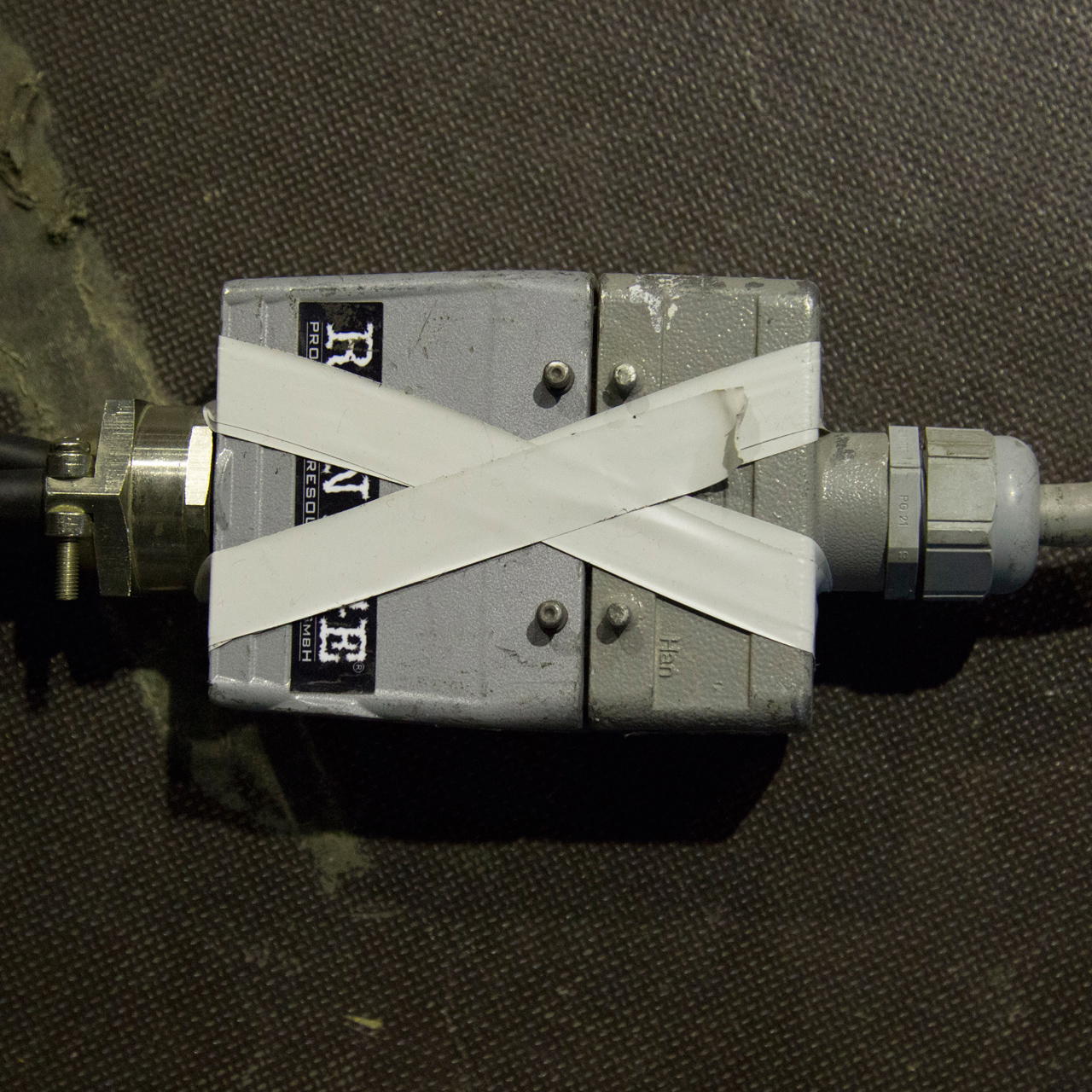

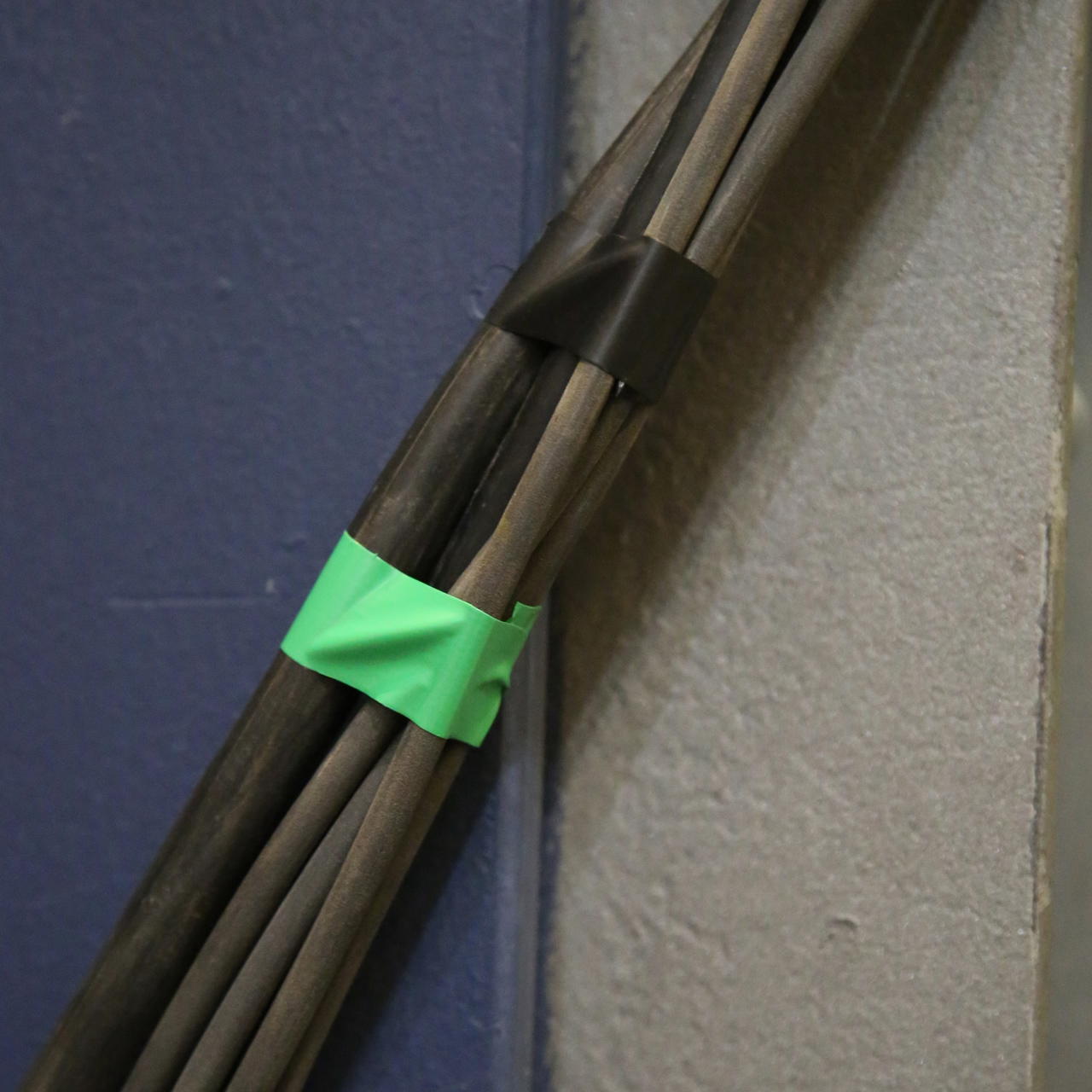

Which adhesive tape, apart from cloth tape, is an absolute must in production? Insulating tape, of course. The VDE 0340 (DIN EN 60454-3-1/Type 2) - tested Isoband has high dielectric strength, insulates reliably and offers electrical protection in a range of at least 8 kV. The tape is also flame-retardant and self-extinguishing. The Isoband with a matt surface can be used in a variety of ways, for bundling cables or for colour coding individual wires and cables, as well as for quickly insulating or repairing brittle cable sheaths. The adhesive tape made of soft PVC is highly elastic (extendable up to 180%), flexible and very adaptable to different shapes, it has good abrasion resistance and is UV-stable and waterproof. The pressure-sensitive adhesive offers high immediate adhesion and good adhesion ( adhesive strength on steel 2.4 N/cm) and can be removed without leaving any residue.
You can buy Gaffa Advance AT 7 Isoband here in our shop in individual rolls. Each roll measures 19 mm x 20 m (width x length). Choose these PVC insulating tapes in 4 colours: white, black, grey and green. Alternatively, our range also offers a self-welding adhesive tape or the 10-piece Isotape set, supplemented by the colours red, orange and brown. As an inexpensive insulating tape, we recommend our Zumbelband GT 807.
| Colour: | white |
|---|---|
| Dimensions: | 19 mm x 20 m |
| Type: | Electrical tape |
Isoband for electrical engineering applications

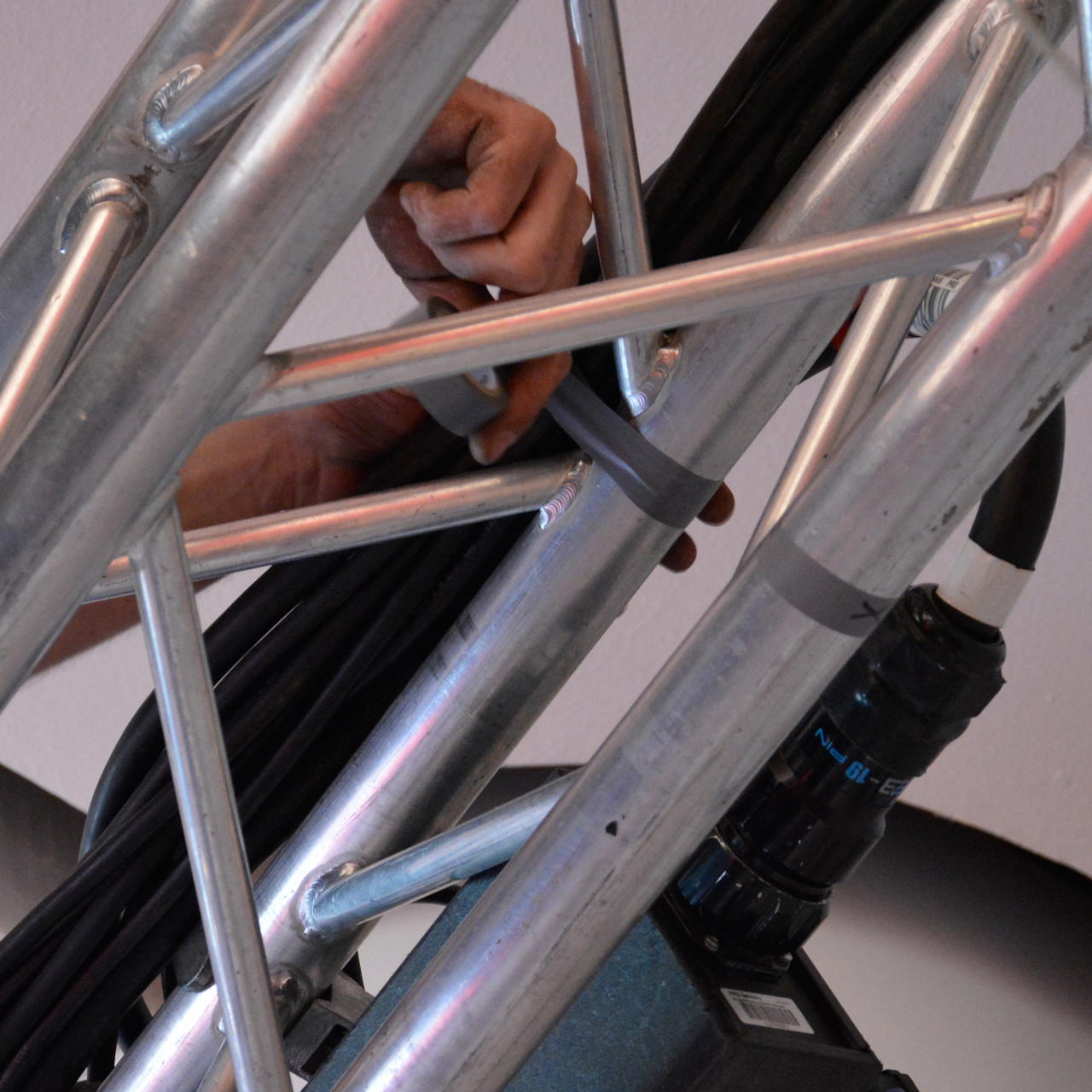

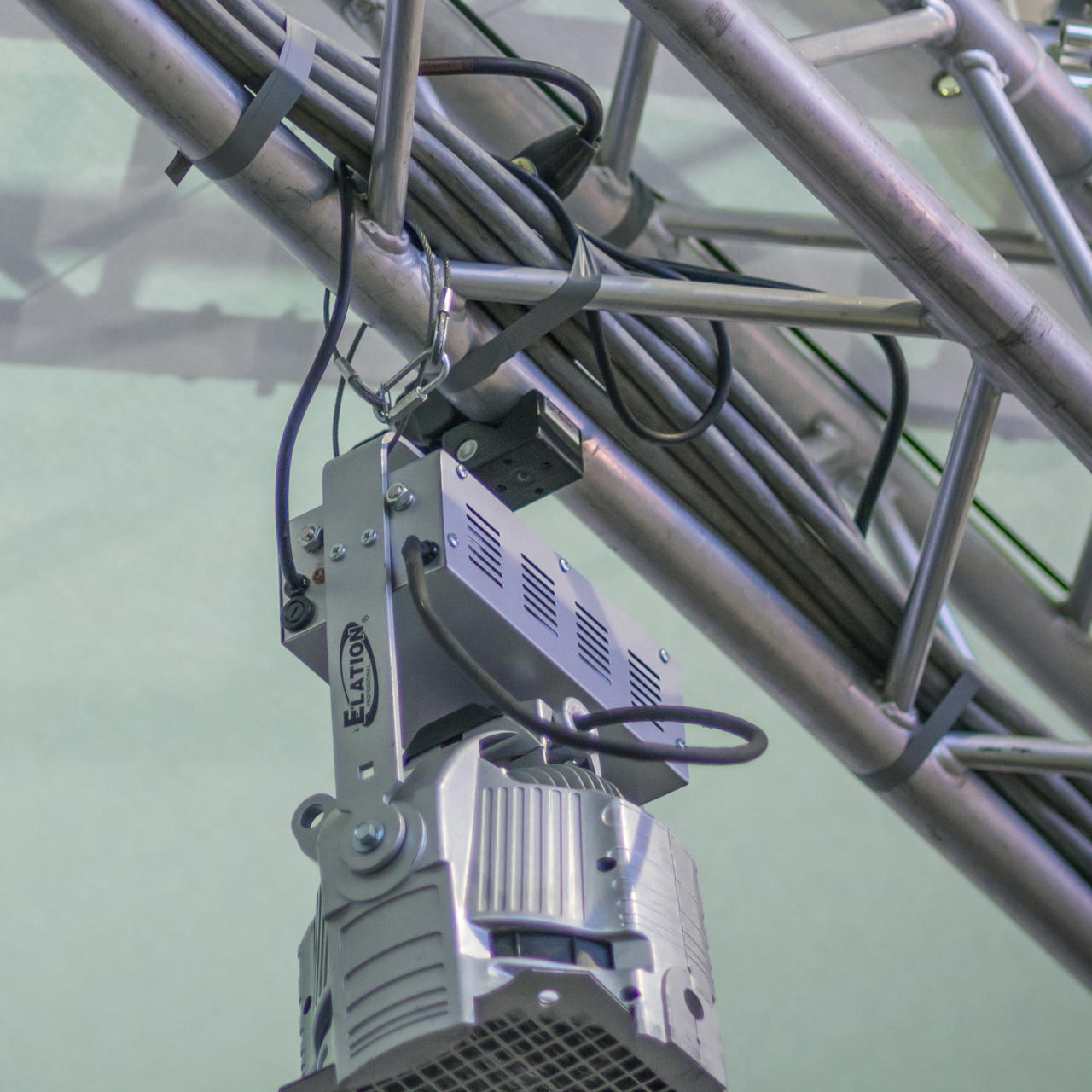

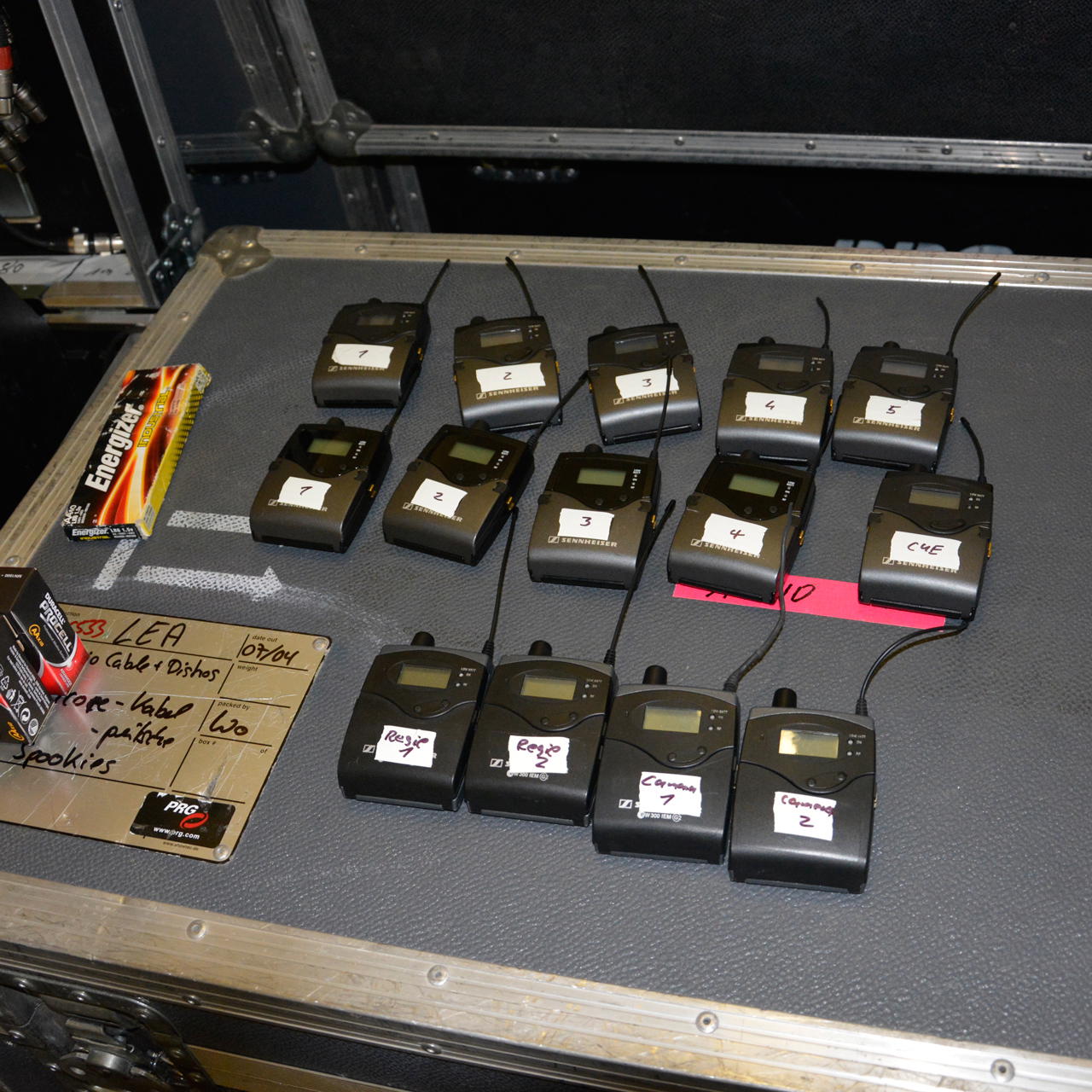

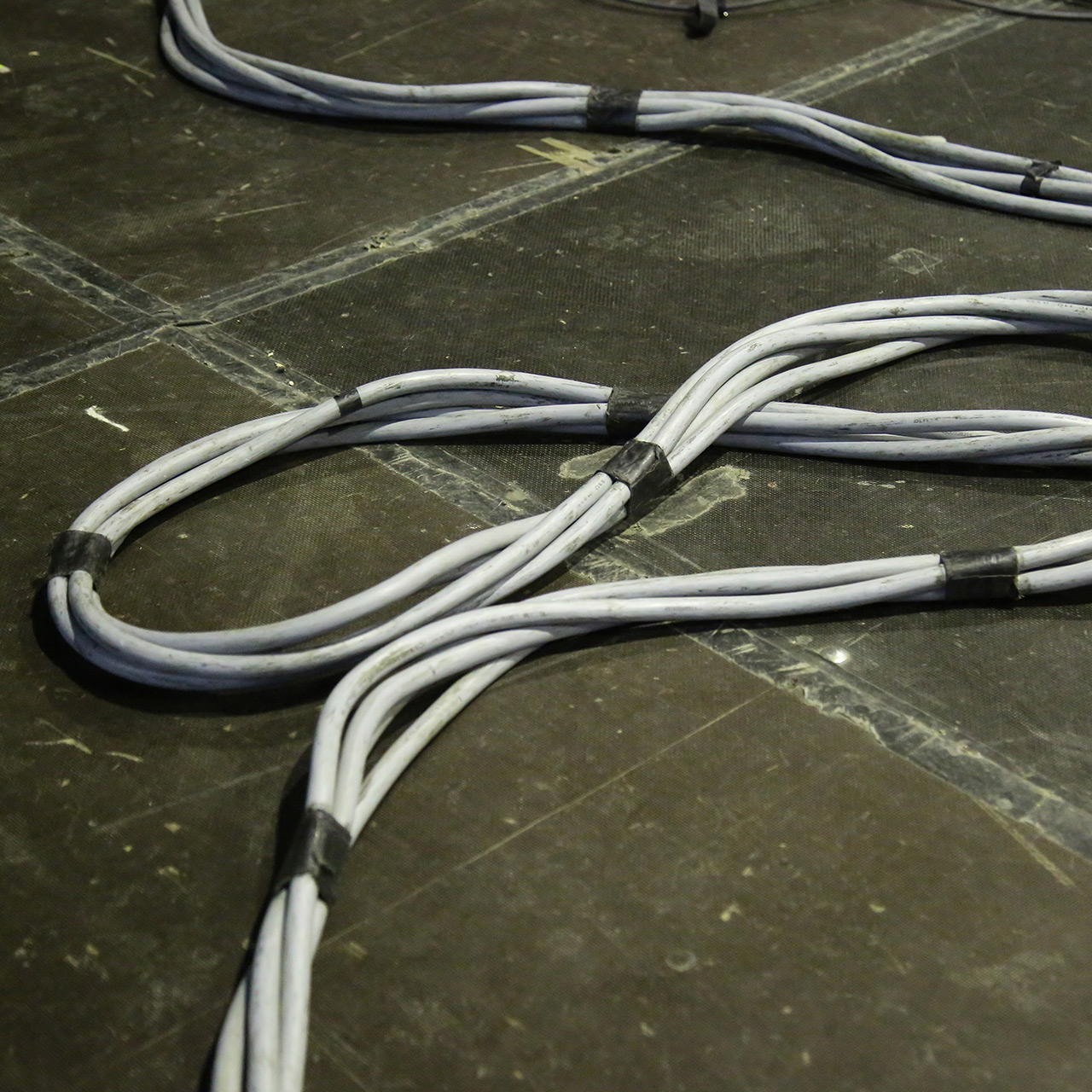

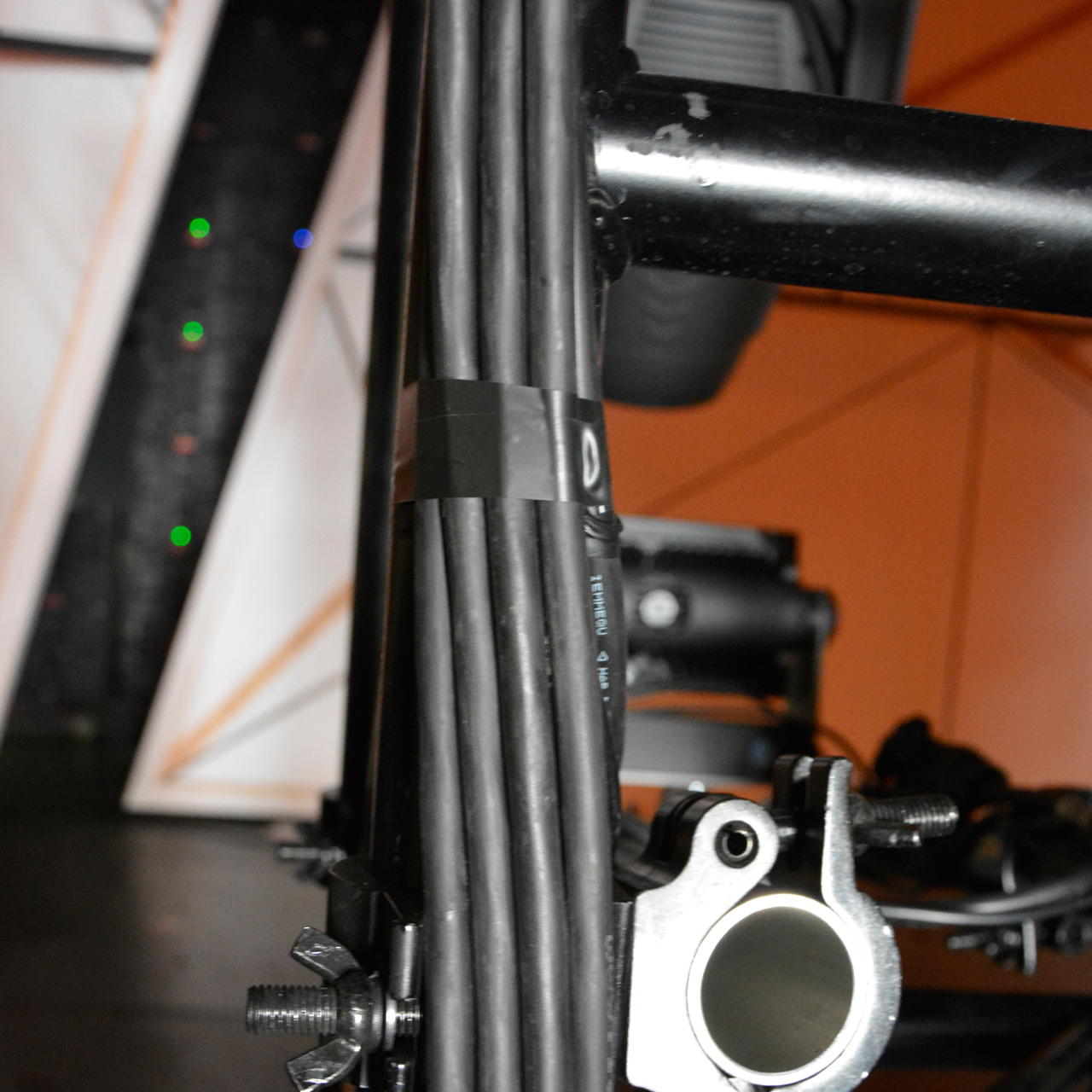

The VDE-certified insulating tape is a high-quality PVC tape and is mainly used for labelling and attaching and bundling cables. Isoband is UV-resistant and waterproof. It is flame retardant and self-extinguishing and impresses with its high abrasion resistance. The adhesive tape complies with the insulating tape standard EN 60454-3-1 / Type 2 ("Self-adhesive tapes for electrical applications", VDE 0340-3-1;2002-03).
Insulating tape – properties and details
Isoband offers high-quality properties and can be used in a variety of ways. The information is based on mean values:
- Design: insulating tape
- Type: Isotape AT 7
- Brand: Advance Tapes
- backing material: PVC tape (soft PVC), matt surface
- Adhesive: pressure-sensitive, cross-linked rubber resin adhesive, non-corrosive
- high initial tack
- Adhesive performance: medium
- Adhesive force on steel: 2.4 N/cm
- Adhesive strength on tape backing: 2.1 N/cm
- Tear resistance: high
- Breaking load: 26 N/cm
- Elongation at break: very elastic, up to 180% extension possible
- RoHS compliant
- Temperature resistance: -5°C to +70°C
- Water resistance: waterproof when affixed
- Weather resistance: UV stable and weatherproof
- Flammability: self-extinguishing, flame retardant
- Mould adaptability: very good
- Abrasion resistance: good
- easily rolled
- Indoor and outdoor application possible
- certified according to EN 60454-3-1 Type 2 (VDE 0340-3-1;2002-03)
- dielectric strength: 8.0 kV
- 1-minute verification test: 6.0 kV
- Insulation resistance: 1011 Ohm
- Conductivity: Max. 2mS/m
- Copper corrosion test: no discolouration
of these insulating tapes is 0°C to +40°C. The optimum room temperature for storage rooms is +12°C to +25°C and a comfortable relative humidity.
Dimensions and colours

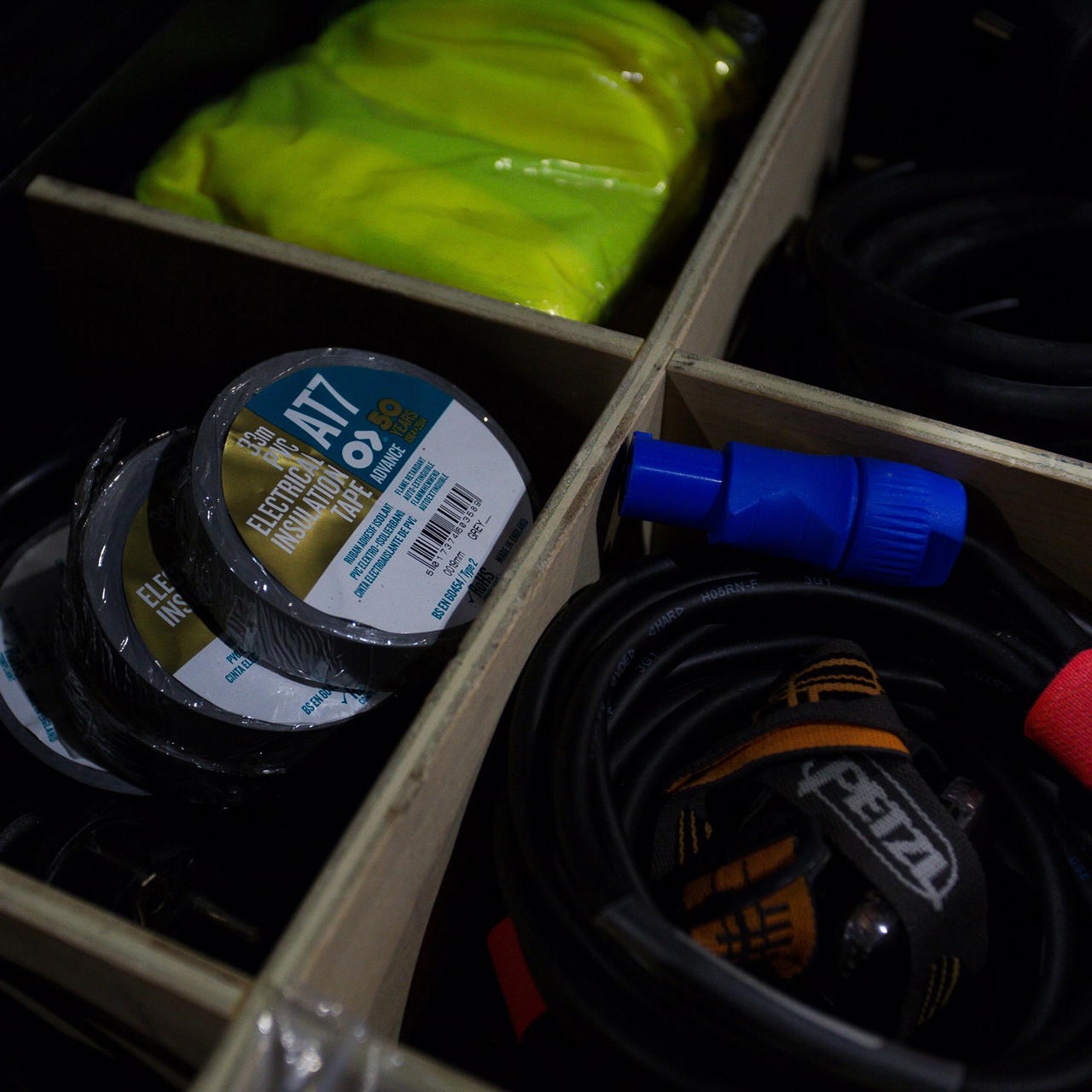

You can order individual rolls of the AT 7 Isoband from our shop in the following sizes and colours:
- Colours: white, black, grey, green
- Length: 20 m
- width: 19 mm
- Thickness: 0.13 mm
In addition to the individual rolls of AT 7 insulating tape, you can also purchase a 10-piece set of isoband in our shop.
DIN EN 60454-3-1:2002-03; VDE 0340-3-1:2002-03
The PVC insulating tape is standardised and complies with DIN EN 60454-3-1 (VDE 0340-3-1) for self-adhesive PVC tapes for electrical engineering applications.
Application of PVC insulating tapes
For safe use in event applications, the AT7 insulating tape is flame retardant and self-extinguishing. It is extremely stretchable (180%), tear-resistant and very adaptable. The high-quality adhesive (non-corrosive, pressure-sensitive) allows for multiple bonding for tape correction and bonding on sensitive surfaces. The Isoband can be removed from cables, wires or sensitive technology without leaving any residue. The very high dielectric strength of 8000 volts offers a high level of safety for electrical applications.
Important general information on the use of insulating tape : Only use approved heat-shrink tubing toproperly insulate live cables!
Insulating tapes]are generally not suitable for insulating bare cables – no matter which isoband you buy. The insulating tapes available from allbuyone offer reliable protection against voltages of up to 8000 volts, but cannot replace a professional repair of defective cables or lines. A certified heat-shrinkable tubing is suitable for professional repairs.
The manufacturer's liability refers to the perfect condition of the adhesive tape as such. We pass on all information about the product to our customers to the best of our knowledge and belief. However, since individual working conditions (environmental influences, surfaces and processing) are beyond our control, we cannot accept any liability or guarantee for any damage that may occur.
always recommend testing every adhesive tape in a small area on the original substrate under real climatic conditions.
Order Isoband from allbuyone
Whether you are looking for Isoband, cloth tape or any other type of adhesive tape, allbuyone offers you a well-assorted selection of many tapes, at fair prices and with fast delivery. Do you have any questions? Please feel free to contact us for a personal consultation at +49 89-122 89 06 22
