insulating tape set | AT 7 | 10 colours assorted colours | each 15 mm x 10 m | Advance Tapes | Isotape Set, electrical adhesive tape for cables | PVC insulating tape, abrasion-resistant, elastic, UV-stable, flame-retardant
Insulating tape set, assorted colours AT 7
Insulating tape set, assorted colours AT 7
| Colour: | various colours |
|---|---|
| Dimensions: | 15 mm x 10 m |
| Type: | Electrical tape |
The AT 7 insulating tape set is a quality product from the manufacturer Advance Tapes – a PVC tape suitable for (electrical) technical applications. The isoband offers reliable protection against voltage, is VDE-certified ( ) in accordance with EN 60454-3-1 (Type 2) and impresses with a high dielectric strength of up to 8000 volts. The insulating tape is flame-resistant and self-extinguishing.
The insulating tapes are ideal accessories for every technician and electrician. They are suitable for bundling and colour-coding cables, as well as for reinforcing, insulating and repairing brittle cable sheaths or even as device holders. The PVC Isotape has a matt, smooth surface, is particularly adaptable to different shapes and can be stretched up to 180% – perfect for wrapping cables and wires. The tape is particularly abrasion-resistant and weather- and UV-resistant and is waterproof when bonded. In addition, the isoband has high initial adhesion and medium final adhesion (adhesive strength on steel 2.4 N/cm).
You can order the insulating tape set in our shop as a 10-piece set in the colours white, black, grey, red, orange, green, yellow, brown, yellow-green and blue. Each roll is individually packaged and measures 15 mm x 10 m (width x length). Alternatively , you can also buy individual rolls of AT 7 Isoband in our shop – at low prices and with fast delivery! As a low-cost alternative, we recommend our GT 807 inslulation tape.
| Colour: | various colours |
|---|---|
| Dimensions: | 15 mm x 10 m |
| Type: | Electrical tape |

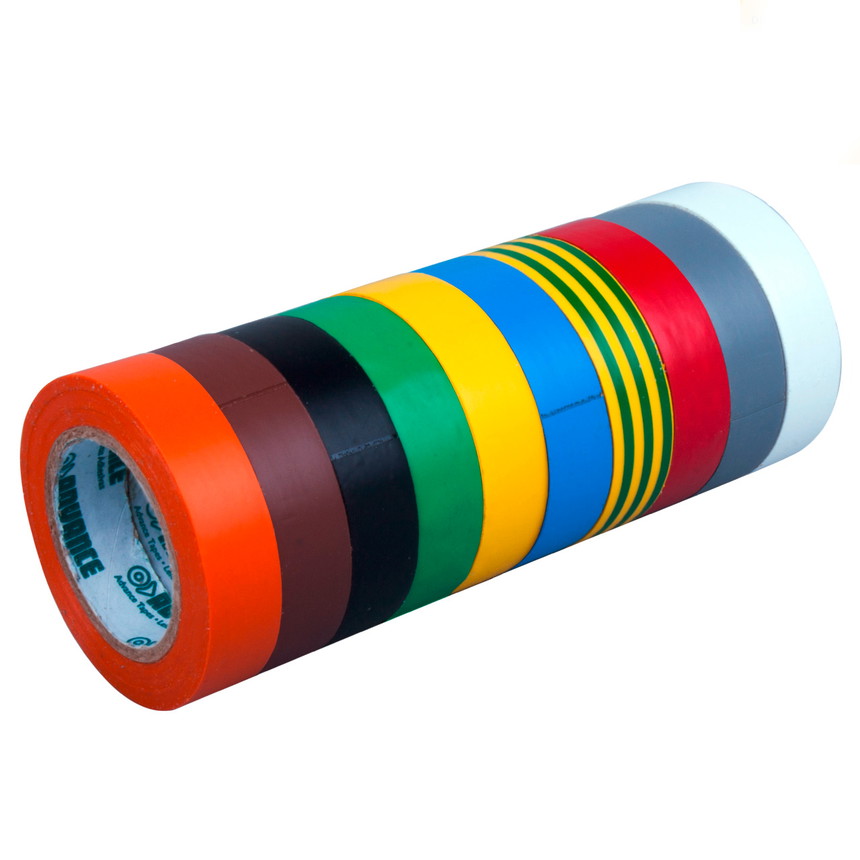

AT 7 insulating tape set in 10 assorted colours
Insulating tape is definitely one of those products that technicians and electricians should always have with them. Whether for marking and colour coding, for quick fastening and bundling, as a makeshift repair tape for cables and wires or for a variety of other uses – with the 10-piece insulating tape set from Advance Tapes, you are guaranteed to have a quality accessory in your case.
Isoband Advance Tape AT 7 – Product information and technical details
- Design: PVC tape
- Type: Isotape AT 7
- Brand: Advance Tapes
- Backing material: PVC; matt, smooth surface
- Adhesive: pressure-sensitive adhesive, non-corrosive
- High immediate adhesion
- Adhesive strength: medium
- Adhesive strength on steel: 2.4 N/cm
- Adhesive strength on tape back: 2.1 N/cm
- Tear resistance: high
- Break load: 26 N/cm
- Elongation at break: highly elastic, up to 180% elongation possible
- RoHS compliant
- Temperature resistance: -5°C to +70°C
- Water resistance: waterproof when bonded
- Weather resistance: UV stable and weatherproof
- Flammability: self-extinguishing, flame retardant
- Conformability: very good
- Abrasion resistance: good
- Easy to unroll and tear off by hand
- Indoor and outdoor use possible
- Certified according to EN 60454-3-1 (Type 2) VDE 0340-3-1
- Dielectric strength: 8.0 kV
- 1-minute test: 6.0 kV
- Insulation resistance: 1011 ohms
- Conductivity: max. 2 mS/m
- Copper corrosion test: no discolouration
Dimensions and colours of the insulating tapes in the 10-piece set
- Colours: white, black, grey, yellow, orange, red, green, blue, brown, yellow-green
- Length: 10 m
- Width: 15 mm
- Tape thickness: 0.13 mm
Buy insulating tape set in the allbuyone shop: Further products
Would you like to order individual rolls of Isotape? The AT 7 insulating tape from Advance Tapes is also available in individual rolls, measuring 19 mm x 20 m in black, white, grey, blue, yellow, green and green-yellow.
Universal Iso adhesive tape – use at events
Compared to other insulating tapes, this Isotape offers particularly high dielectric strength up to 8000 volts. The Iso Tape is extremely stretchable and tear-resistant and offers very good conformability. The non-corrosive, pressure-sensitive adhesive allows gentle bonding to sensitive surfaces. The tape can be repositioned after incorrect application and can be removed from cables and sensitive technology without leaving any residue. The adhesive tapes are flame-retardant and self-extinguishing for safe use in event applications. You can purchase the insulating tape set in our shop at fair prices, with fast delivery and, of course, personal advice on +49 89-122 89 06 22.
The application temperature of these insulating tapes is 0°C to +40°C. The optimum room temperature for storage rooms is +12°C to +25°C with relative humidity.
What many customers do not know: There are many different insulating tapes on the market. Regardless of which insulating tape you buy, PVC insulating tape should only be used as a repair tape in emergencies or temporarily. These adhesive tapes do not offer the necessary strength and stability for the permanent insulation of bare wires and cables, unlike cable sheathing designed for electrical applications. The mechanical strength of PVC adhesive tape is insufficient for insulating higher voltages. For safe repairs, a heat-shrinkable tube should therefore always be used instead of insulating tape.
The manufacturer's guarantee of adhesion refers to the perfect condition of the adhesive tape as such. We pass on all product information to our customers to the best of our knowledge and belief. However, as individual working conditions (environmental influences, surfaces and processing) are beyond our control, we cannot accept any liability for any damage that may occur.
To avoid damage, we generally recommend testing the adhesive tape on the original surface beforehand.
Order insulating tape set – and many more products for your event needs
You can order the Isoband set at a low price in the allbuyone shop. Fast delivery guaranteed! Our prices are in EUR including VAT, plus shipping costs. In our adhesive tape category, you will also find colourful cloth tape in widths of 12 and 24 mm for marking or bundling individual cables and wires. Do you have any questions? We look forward to your call! Personal advice in Munich on +49 89-122 89 06 22
