backlit banner | Backlit PVC 480 g/m² | B1 | perfect for backlighting
Backlit banners are a material specially developed for advertising tarpaulins with backlighting. The backlit tarpaulin with 480 g/m² consists of a translucent, slightly translucent PVC polyester fabric. The high-quality, silk-matt surface offers printing in outstanding, photo-realistic 6c digital print quality. Thanks to light/backlighting, backlit advertising banners shine with particularly brilliant, intense colours. Backlit banners are weather-resistant for 1-3 years, UV-resistant and tear-resistant. In addition, the advertising tarpaulin is flame-retardant B1-certified according to DIN 4102 and therefore suitable for indoor and outdoor use.
Backlit banners are versatile and can be used in light boxes, billboards, signage and for covering internally illuminated Layher/Dekotowers. For flexible mounting, you can order the backlit banner individually tailored with flat hems, hollow hems, eyelets and much more. Various products for mounting are also available in the shop.
| Material: | PVC-Polyester 480 g/m² |
|---|---|
| Quality: | flame retardant according to DIN 4102 B1 |
| Characteristics: | suitable for backlighting (e.g. light boxes) |
| Print: | 6-coloured, one-sided |
1 First configure your desired individual pieces:
2Complete your configuration. We will determine the best price for you:
Backlit banners – advertising tarpaulins for backlighting
Are you looking for advertising tarpaulins for large light boxes – at airports, on local transport or at trade fairs? Or would you like an advertising banner with particularly intense printing, as illuminated advertising or for backlit coverings, for example as Layher cladding or for light installations? Then the 480 g/m² backlit banner material is just right for you!
The backlit tarpaulin is suitable for all backlit applications and, even without extra backlighting, has a print image with absolutely intense, brilliant colours. Unlike frontlit PVC banners, which have a closed and – depending on the design – almost or completely (blockout) light-tight surface, backlit tarpaulins are slightly translucent/light-permeable. This makes the print on the backlit advertising tarpaulins particularly colour-intensive.
With our digital printing configurator, you can design your own customised backlit tarpaulin in just a few clicks. Enter the size, select flat hem, hollow hem, eyelets or other finishing options, send your print data – done!
Our service for you: free data check! We check your print data for printability free of charge and will contact you if necessary.
Order printed backlit tarpaulins and deliver print data – here's how
We print the backlit banners according to your specifications, in the format you require and with the finishing that suits your application – in just a few steps, your printed advertising tarpaulin is ready to order:
- Give each individual backlit banner a name (optional) – this name will appear on all documents and you will always have an overview.
- Specify the width and height.
- Select the desired finishing for the top, bottom and side edges – you can choose from a range of standard finishes.
- Save the product.
- Then add your finished banner to your shopping basket and complete your purchase or add another item.
- After successful purchase, you will receive an order confirmation for your advertising tarpaulins and a link to our data sheet, which contains important information regarding the creation and transmission of your print data.
- You will then receive a second email with an order confirmation and a personalised link for uploading your print data.
- The order confirmation also contains the expected delivery date*.
- We will check your data for printability. We will automatically correct minor errors for you. If the resolution or similar is incorrect, we will contact you. This service is free of charge for you!
- As soon as the data is correct, your products will go to print.
- The backlit advertising tarpaulins will be shipped to you after production.
*Exception for prepayment: In this case, we will only start production of your printed materials after receipt of payment. The delivery date is therefore dependent on receipt of payment.
Please ensure that your print data is carefully prepared. Confirmed print orders are custom-made and cannot be exchanged.
Do you have questions about printing or the product? Would you like personal advice?
Do you have questions about backlit advertising tarpaulins? Are you unsure whether backlit PVC is the right material for your project? Or would you like a different finish, e.g. with piping or Velcro tape?
Please contact us, our team will be happy to advise you personally on +49 89-122 89 06 22.
Backlit advertising banners with customised finishing

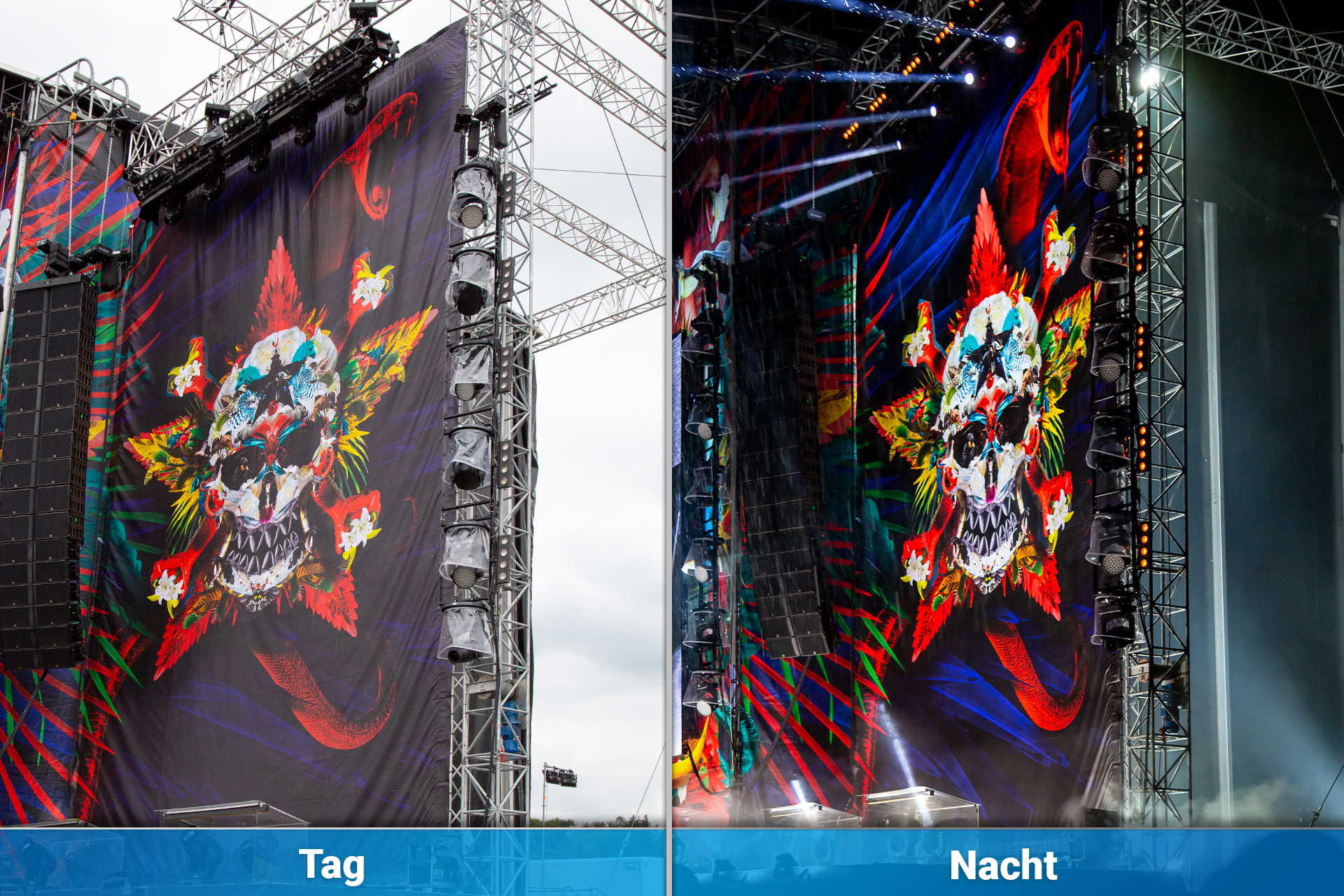

Like frontlit banners, backlit tarpaulins are extremely versatile, with the added bonus that the backlit tarpaulin is even more effective when illuminated from behind. Depending on whether the material is clamped into light boxes or used for cladding, different finishing options are available.
You can choose the following finishing options in our digital print configurator, all of which are of course high quality. (A detailed explanation of each finishing option can be found below.)
Cut, with hem or eyelets:
- Cut (with straight cut edge)
- cut and eyeleted (at intervals of 50 cm)
- hemmed (flat hem)
- hemmed and with eyelets (only in the corners)
- hemmed and with eyelets (at intervals of 50 cm)
With flat hem:
- 4 cm flat (for diameters up to 2 cm)
- 8 cm flat (for diameters up to 4 cm)
- 10 cm flat (for diameters up to 5 cm)
Would you like the backlit banners with a different finish or are you looking for a different material? No problem, please contact us and we will be happy to advise you personally on possible alternatives.
Backlit 480 g/m² – key features at a glance
- Wind permeability: 0%
- Opacity: opaque
- UV resistance: 1-3 years UV resistant (depending on exposure)
- B1 flame retardant: yes
- Print: 1-sided
- Print quality: excellent, photo-realistic print, which appears even higher quality and more colour-intensive when backlit
- Max. seamless print width: 4.9 m (final dimensions including hem and eyelets)
We print the backlit banner seamlessly up to a width of 4.9 m. Would you like XXL illuminated advertising? Larger motifs are of course also possible; for this, several panels are high-frequency welded on the back.
Printed backlit advertising tarpaulins – print quality in detail
We print the backlit tarpaulin in our event print shop using high-resolution 6c digital printing. The smooth, silk-matt surface enables perfect ink application. The photo-quality print shines in brilliant, luminous colours, with sharp contours and lettering, clean colour gradients and sharp images. What makes backlit banners so special is that the print image appears even more colour-intensive thanks to backlighting ( ), with the colours shining particularly beautifully thanks to the light from behind.
The backlit banner can be printed seamlessly up to a width of 4.9 m. Even larger formats are no problem; individual panels are welded together on the back so that the seams are virtually invisible.
Flat hem, hollow hem, eyelets and much more – all options explained simply
The following finishing options are available in our configurator. Further options (e.g. piping) are available on request.
-
Cut with straight edges
- With this finishing, the backlit banner is cut to your desired size with straight edges. This version is particularly popular for backlit tarpaulins and is ideal if you want to stretch the material in light boxes. The simple cut finish is also perfectly adequate for further processing, for example for permanent attachment to frames.
-
Cut and with eyelets (spaced 50 cm apart)
- Here, the backlit banner is cut and additionally eyeleted on the selected side at intervals of 50 cm. The eyelets have an inner diameter of 12 mm. Our print shop uses metal eyelets as standard, but plastic eyelets may also be used for production reasons. We recommend this finishing for banners up to a height of 120 cm. For larger banners, you should choose the option hemmed and with eyelets.
-
Hemmed (flat hem)
- Instead of simply cut, the backlit tarpaulin can be hemmed with a simple flat hem. The selected side is simply folded over and welded on the back. Hemming makes the tarpaulin even more stable and tear-resistant at the side edges. A simple flat hem is suitable if the material is clamped, stapled or screwed in place with washers.
-
Hemmed and with eyelets (only in the corners)
- With this finish, the backlit banner is simply hemmed (folded over and welded on the back) and additionally eyeleted in the corners. Our print shop uses eyelets with an inner diameter of 12 mm. We recommend this finish for tarpaulins up to approx. 1 m²; for larger banners, we recommend eyelets every 50 cm.
-
Hemmed and with eyelets (at intervals of 50 cm)
- Here, the backlit tarpaulin is also hemmed with a simple flat hem and then eyeleted at the selected edge, at intervals of 50 cm. The hem protects the eyelets from tearing, even under high tensile forces. This finishing option, which is very popular for frontlit banners, is also suitable for backlit tarpaulins if they are to be stretched taut and free of creases.
-
With hemstitching 4 cm, 8 cm or 10 cm wide (flat)
For fastening with poles or ropes, we also offer the backlit tarpaulin with a hemstitch, available in three different widths:
- 4 cm wide (flat) – for thin wooden/metal poles with a diameter of up to 2 cm
- 8 cm wide (flat) – for poles with a maximum diameter of 4 cm
- 10 cm wide (flat) – for pipes (ø 50 mm), Layher poles (ø 48.3 mm) and standard roof battens (max. 3 x 6 cm)
It is difficult to give a general recommendation for the finishing of backlit banners, as the possible uses are so varied and therefore so are the best finishing options.
Would you like the tarpaulin with a different customised finish? Please contact us. Other finishes (e.g. piping, hook-and-loop tape) are available on request. We would be happy to advise you personally on +49 89-122 89 06 22.
Technical data for the material Backlit PVC 480 g/m²
- Type: Backlit B1
- Material: 100% polyester fabric with PVC coating
- Surface weight (grammage): 480 g/m²
- Surface: silk matt
- Wind permeability: 0%
- Light transmission: medium – good, slightly translucent (depending on printing inks)
- Sound permeability: low
- Weather resistance: 1–2 years (depending on exposure)
- UV stability: 1–3 years (depending on exposure)
- Feel: firm, compact
- Durability: very dimensionally stable, hard-wearing, robust
- Washability: washable
- Maximum tensile strength: max. 1900 / 1700 N/5cm
- Tear resistance: 250/230 N
- Print quality: excellent, photo-realistic premium print with maximum colour brilliance
- Printing technology: 6c digital printing
- Print: single-sided
- Max. seamless print width: 4.9 m
- Certificate: B1 according to DIN 4102
We reserve the right to print the base material of the backlit banners from other manufacturers, which is why some specifications may vary.
Note: The information on weather and UV resistance has been determined in studies conducted under Central European conditions. Use in regions with different climatic conditions (high humidity, strong UV radiation), such as in southern European countries, tropical areas and desert regions, as well as in areas with high air pollution or at high altitudes, will cause a faster ageing process.
Information on delivery and storage
The backlit banner is delivered rolled up as standard, which ensures space-saving and crease-free delivery. It is rolled up on the short side, i.e. the length of the short side determines the roll length for shipping. Banners longer than 6 m are delivered folded.
We also recommend rolling the backlit banner for storage. This provides the best possible protection against creases and folds. Make sure that the tarpaulin is completely dry, otherwise mould may form.
What alternative products are available to backlit banners?
Backlit PVC is the material of choice for backlit tarpaulin material. Don't want to backlight your banner? Then we offer various materials for PVC and cloth banners:
-
Frontlit PVC banner – various designs (standard PVC tarpaulin B1, blockout, inexpensive advertising banners)
- Banners made of sound- and wind-permeable mesh – ideal for windy locations, as stage covers or as large-format facade and scaffolding advertising
- Cloth banners – with high-quality banner printing, perfect for indoor use
What applications is the backlit banner used for?
The slightly translucent backlit tarpaulin is specially designed for backlighting thanks to its unique material properties. The most common areas of application include:
- Illuminated advertising (at airports, etc.)
- Advertising billboards
- Illuminated signage
- Decorative towers
- Backlit Layher towers
- Backlit posters
Backlit is also popular as a backlit planning material:
- at trade fairs
- in theatre set construction
- in general in the decorative sector
- and much more
Conclusion: Backlit banner 480 g/m² – high-quality banner for backlighting with brilliant print
Backlit is the perfect material for backlit banners, coverings and decorative banners. Its special structure ensures even illumination. If you also want your banner to be weather-resistant, robust, washable and B1-certified ( ), backlit is the material of choice. With a backlit advertising tarpaulin, your advertising is guaranteed to be seen in the right light – day and night!
Buy backlit banners
You can order backlit tarpaulins for your illuminated advertising at low prices and with fast shipping from allbuyone – your expert for event printing. You will also find other digital printing products in our shop, such as flags, advertising signs, roll-ups and other display systems, stickers and much more. Delivery time is 5-6 working days, express shipping is available on request. Our prices are in euros, including VAT, plus shipping costs. Would you like personal advice? Please contact us by telephone on +49 89-122 89 06 22.
