view protection Mesh | black | 3.07 m x 50 m | Wind permeability 27%, B1 flame-retardant
Mesh 203 - Roll 3.07 m x 50 m, black
Mesh 203 - Roll 3.07 m x 50 m, black
| Colour: | black |
|---|---|
| Size: | 3.07 m x 50 m |
| Quality: | flame retardant acc. to DIN 4102-B1 UV-stable for 1-2 years |
| Material: | HDPE |
| Material Weight: | 160 g/m² |
| Structure: | finely woven |
| Wind-Permeability: | 27 % |
| Information: | dimensional tolerances of +/- 5% due to technical reasons and depend on temperature and humidity |

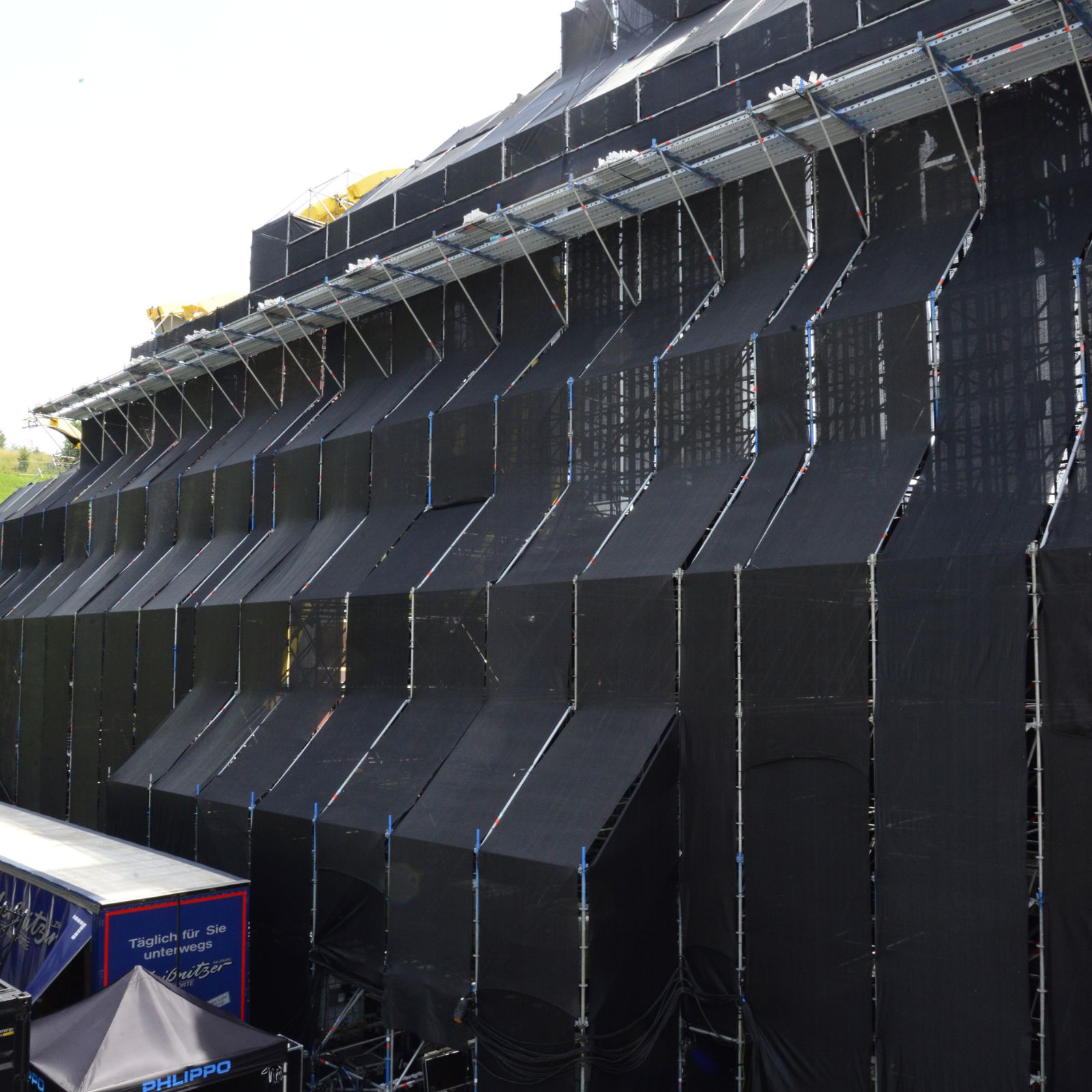

The view protection Mesh is flame-retardant to DIN 4102 (B1-certified) and thus meets key requirements for construction site and event safety. It is temperature-resistant from -30 °C to +70 °C, rot-proof, and chemical-resistant – offering high quality for touring applications under frequent high mechanical stress. The view protection Mesh is used in event supplies as Stagenet or grandstand netting, allowing backstage areas, podiums, storage spaces, and FOH enclosures to be clad reliably, stylishly, and with privacy. It can also be laid directly from the roll as a breathable turf protection under floor panels.
View protection meshes are also frequently used for wind, dust, and view protection on construction sites, mounted on scaffolding and façades. With a height of over 3 metres, the mesh fabric can also be used for sun, glare, and wind protection on tennis or sports courts, playgrounds, swimming pools, and leisure facilities, for example as a fence screen, installed quickly and efficiently.
Mesh 203 can be easily cut to size and fixed directly through the mesh using cable ties. Order view protection Mesh 3.07 x 50 m in black now – cost-effective as roll stock in premium quality from allbuyone – your specialist with over 17 years of experience. Alternatively, we also offer such mesh fabrics on rolls and custom-finished in UV-stabilised versions with a service life of 7–10 years.
203 mesh – wind-permeable privacy screen
203 mesh is a fine-mesh material with a weight of just 160 g/m². Made of HDPE (polyethylene), the mesh is highly tear-resistant and durable. The dense weave provides good view protection, but thanks to a wind permeability of approx. 27%, it still does not present a closed surface for incoming wind. You can order mesh 203 here as a 50-metre-long roll in four widths.
Mesh 203 – product details
- Type: Mesh 203
- Material: polyethylene (HDPE)
- Grammage (weight): 160 g/m²
- Structure: fine mesh
- Mesh size: 1mm x 5 mm
- Wind permeability: approx. 27%
- Privacy protection: approx. 73%
- Opaque (depending on illumination): medium to high
- Opaque from a distance of approx. 11 m (depending on illumination)
- UV-resistant for 1-2 years (depending on exposure)
- flame retardant B1 according to DIN 4102
- can be used at temperatures between -30°C and +70°C
- weatherproof and water-repellent
- rot-resistant
- high resistance to acids, alkalis and other chemicals
- colourfast
- highly tear-resistant, dimensionally stable
Gauze 203 – mesh B1 flame retardant
made of PE mesh are treated to be flame-retardant during the manufacturing process and are therefore permanently flame-retardant. Mesh 203 is B1-certified according to DIN 4102 and thus meets the strict fire protection requirements for trade fairs and events in Germany.
Buy mesh 203 roll in 4 sizes
You can buy mesh 203 in rolls from our shop under our own brand GRIP Eventbasics by allbuyone in the following dimensions (width x length), in both black and white:
- 1.80 x 50 m (width x roll length)
- 2 x 50 m
- 3.07 x 50 m
- 4 x 50 m
- each available in black and white
, you can order mesh 203 by the metre (cut from 10 running metres) and as a ready-made mesh with eyelets in 6 standard sizes. In the mesh configurator, you can individually configure mesh 203 (and all other mesh fabrics).
Application: Mesh 203 as fence cover and much more.
The dense fabric is used in a variety of ways in the event sector, as well as on construction sites and at outdoor trade fairs. It is often used as:
- fence panels for privacy screens
- shade netting
- wind protection net
- grass protection under heavy duty panels, panels and other temporary ground coverings,
Attaching the screen
The mesh can be easily unrolled from the roll and attached to crossbeams, fences and the like. Non-grommeted roll material can be easily attached with cable ties or thin wire. You can buy the matching cable ties in white and black in various lengths in the shop – to fit your application perfectly.
Order mesh in a range of different structures (weights)
Depending on the application – whether it is primarily used as a privacy screen or as a wind-permeable covering for stages and grandstands – we offer the PE mesh in other grammages and colours.
In general, the denser the mesh, the less permeable it is to wind, rain and sound and the more effective the privacy screen.
You can find a complete overview of all available mesh types/structures in the data sheets section.
Buy mesh 203 - role
The dense mesh made of mesh 203 can be ordered as a roll at a low price and with fast delivery - for wind-permeable view protection at your event. We offer a wide range of meshes in different colours and grammages at a reasonable price, by the metre and in rolls. We are also happy to advise you in person at: +49 89-122 89 06 22
