Securing escape routes Building site fence | 20 x 20 x 17 cm (HxWxD) | Door guard emergency exit on the construction fence | Construction fence gate lock protects the emergency exit from misuse | Can be opened quickly in an emergency | Emergency exit security for construction fence gates
Construction fence gate locks for emergency exits
Construction fence gate locks for emergency exits
| Size: | 20 x 20 x 17 cm (HxBxD) |
|---|---|
| Material: | steel, painted (green, red) |
| Description: | Accessory in order to create temporary emergency exits out of two sites fences. The gate is sealed with cable ties and can be opened from the inside only. After one-time opening, the cut cable tie has to be replaced. |
The construction fence gate lock is a solution for temporarily locking the emergency exit on a construction fence. The escape route lock can be quickly opened from the inside, thus providing safety for visitors in dangerous situations. At the same time , the construction fence lock helps to protect the site from misuse and saves additional personnel costs.
The construction fence lock is attached to a standard construction fence using a clamp. The two tubes of the mobile construction fence are tied together with cable ties and then threaded through the bar. Once secured, the cable ties cannot be opened from the outside - access to the site is locked. However, thanks to a simple and easy-to-use lever on the door guard , the emergency exit can be opened from the inside in seconds in an emergency.
The construction fence gate lock in green/red is made of robust, weatherproof steel and measures 20 x 20 x 17 cm (HxWxD). The scope of delivery includes 20 cable ties (4.8 x 550 mm) and 2 safety screws incl. nut (M10) + clamp.
| Size: | 20 x 20 x 17 cm (HxBxD) |
|---|---|
| Material: | steel, painted (green, red) |
| Description: | Accessory in order to create temporary emergency exits out of two sites fences. The gate is sealed with cable ties and can be opened from the inside only. After one-time opening, the cut cable tie has to be replaced. |
Construction fence gate lock: Safe emergency exit – quick in case of danger – saves personnel costs
The construction fence gate lock is an easy-to-install construction fence lock and also provides perfect escape route security for construction fences.
The fence bar ensures extremely effective escape route security and cost-effective access control – without the need for constant monitoring by staff. The construction fence lock helps to prevent unauthorised persons from entering the site from outside – yet the emergency exit can be opened from the inside in seconds in dangerous situations .
At festivals and other events, emergency exits are usually formed by two construction fences with construction fence rolls, which are opened in an emergency. The problem: if the construction fences are not constantly guarded, misuse is difficult to prevent. The solution: the construction fence lock! With the door guard for construction fences, the emergency exits in the fence can be locked and can still be opened at any time in an emergency.

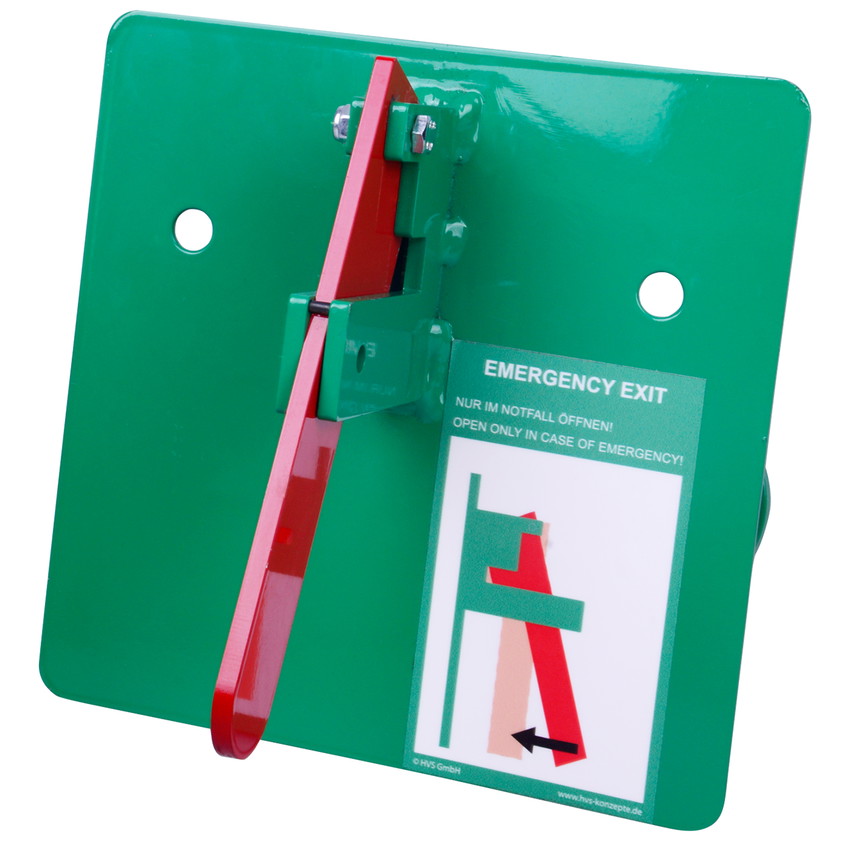

The construction fence gate lock can be attached to a standard construction fence in just a few simple steps. The two fences are connected to each other with a cable tie, which is also threaded through the lock. A lever with a sharp edge is attached to the construction fence gate lock itself, which cuts the cable tie in an instant when pressed.
Please note in the event of rescue measures, for example by the fire brigade: The bar can only be opened from the inside using the lever. A sticker on the bar provides information on correct handling. After opening once, the cut cable tie must be replaced.
Construction fence lock – product details
- Design: Construction fence lock for emergency exits
- Colour: green/red
- Material: steel, painted
- Format: 20 x 20 x 17 cm (HxWxD)
- Weatherproof
- 2 locking screws incl. nuts (M10) + clamp
- 20 cable ties black (4.8 x 550 mm)
For even more security, a seal or a break-proof seal can be attached. These products are not included in the scope of delivery. Alternatively, a coloured cable tie can be used as a seal. We recommend our coloured cable ties 100 mm x 2.5 mm, available in a set of 9 different colours.
Installation of the construction fence lock (construction fence lock)
The function is extremely simple. Installation is carried out from the inside by screwing the bolt to the left-hand side of the construction fence using a clamp and two M10 screws with nuts (included in delivery). Then the construction fence gate is closed. A cable tie is now tied around the two fence tubes and threaded through the bolt. Once the cable tie (20 pieces included in delivery) is tightened, the gate can no longer be opened.
In an emergency, press the red bolt against the construction fence to cut the cable tie and open the gate in seconds.
Please note: Always tighten the cable ties as tightly as possible to ensure that the bolt works properly. A loose cable tie is very difficult to cut, which delays the opening of the emergency exit.
Construction fence gate lock - All the advantages of escape route security on construction fences
- Simple solution
- Reliable protection against misuse
- Quick to install (one screw, one cable tie)
- Cost-effective thanks to savings on personnel
- Tried and tested at numerous festivals
- Can be combined with standard construction fences and the necessary accessories (e.g. fence banners, fence mesh, etc.)
Additional accessories for the emergency exit on the construction fence
In our shop, you will find other useful accessories for the construction fence emergency exit:
- Construction fence roll
- swivel joint for construction fences gates
- running ring for construction fences gates
- Break seals for construction fences
- Emergency exit banners, emergency exit flags
Buy construction fence gate locks – with fast shipping from allbuyone
You can order construction fence locks at low prices from allbuyone. In our shop, you will find further accessories for construction fences, view protection tarps, break seals, construction fence rolls and much more, as well as a large range of event accessories. Haven't found the product you're looking for? Give us a call, we will be happy to advise you personally on 089 - 122 89 06 22
