3 mm | Twin-wall posters
Hollow chamber plates (web plates) are very lightweight polypropylene plates that are weather-resistant, flexible and offer rich colour printing – all at an unbeatable price!
The hollow chamber plates are available in two thicknesses (3 mm and 5 mm). The plates are cut to size and we recommend adhesive tape, screws or a tacker for fastening. We print hollow chamber plates in 6c digital print, the plates offer very good print quality, colour intensity and good resolution.
The sheets with a slightly grooved surface structure ( ) are ideal for short-term outdoor use, for election posters, circus posters, signage at events, etc.
| Strength: | 3 mm |
|---|---|
| Print: | |
| max. size of Plate: |
1 First configure your desired individual pieces:
2Complete your configuration. We will determine the best price for you:
Have a hollow chamber plate printed
Whether election posters, party announcements or directions to the festival: hollow chamber plates are ideal as temporary signage and information signs. The plate material impresses with its low weight, excellent print quality and affordable price.
The plates with a matt, slightly structured surface are weather-resistant and UV-resistant and are mainly used outdoors. In general, hollow chamber plates can of course also be used indoors, but they are not B1-certified.
Customised hollow chamber plate in two thicknesses
Our configurator offers you the hollow chamber plate in two thicknesses:
- 3 mm (450 g/m²) – a thin, light-weight sheet that is robust but not kink-resistant. Heavy use and wind can cause the sheet to bend along the longitudinal grooves.
- 5 mm (900 g/m²) – a more durable, thicker sheet, but not resistant to buckling.
Order printed hollow chamber plates – this is how it's done
Our configurator makes it quick and easy to customise your twin-wall sheets. Here is a brief description:
- Give each individual plate a name (optional) – this name will appear on all receipts and you will always have an overview.
- Specify the width and height.
- Select the desired finish for the top, bottom and side edges – a range of standard finishes are available.
- Save the product.
- Then add your fully configured plate to the shopping basket and complete your purchase or add another item.
- After a successful purchase, you will receive an order confirmation for your hollow chamber plate and a link to our data sheet, which contains important information regarding the creation and transmission of your print data.
- You will then receive a second email with an order confirmation and a personalised link for uploading your print data.
- The order confirmation also contains the provisional delivery date*.
- We check your data for printability. We automatically correct minor errors for you. If the resolution or similar is not correct, we will actively contact you. This service is free of charge for you!
- As soon as the data is correct, your products go to print.
- The hollow chamber plates will be sent to you after production.
Exception: advance payment. In this case, we will not start production of your printed matter until we have received your payment. Accordingly, the delivery date depends on when we receive your payment
Please make sure that your print data is carefully created. Confirmed print orders are custom-made and cannot be returned.
Do you have any questions? We would be happy to advise you in person!
Our team will be happy to advise you in person!You are not sure whether the hollow chamber plate is the right material for your project or whether you need a different plate material? You would like a special design that is not feasible in the configurator?
Or would you simply prefer to be advised in person?. Our experienced team will be happy to help you with advice and many tips. You can call us on +49 89-122 89 06 22 or email us at [email protected].
The most important features at a glance
Suitable for: temporary advertising signs / signage such as election posters, circus signs, etc.
UV resistance: 1-2 years (depending on exposure)
B1 flame retardant: no
Area of application: short to medium term (short-term outdoor)
Printing: 1-sided (2-sided possible on request)
Print quality: saturated colour reproduction in 6c digital printing
max. plate size (for single-piece printing): 1.40 x 1.00 m (thickness 3 mm), 1.75 x 1.25 m (thickness 5 mm), each incl. printing and cutting
Minimum size: 20 cm x 20 cm
: Depending on the region and industry, the hollow chamber plates are also referred to as corrugated plates, which comes from their structure of hollow longitudinal grooves. Derived from the English term "core" (middle piece, core piece, inner part), the plates are also known as Correx.
Printed hollow-chamber plates – details on print quality
The hollow chamber plates with a slightly grooved surface can be easily printed with rich colour reproduction. Only with small motifs is the print not absolutely detailed. The corrugated sheets are printed on one side using 6c digital printing. Double-sided printing is possible on request.
The hollow chamber plates vary in size depending on their thickness, and the print size varies accordingly.
The 3 mm plate has a maximum plate size of 1.40 m x 1.00 m including printing and cutting. The 5 mm plate has a maximum plate size of 1.75 m x 1.25 m.
Customisation: cut precisely to size
hollow chamber plates are cut precisely to size. The minimum size is 20 cm x 20 cm, we will be happy to calculate smaller formats for you on request. The maximum plate size depends on the thickness:
-
max. sheet size 3 mm: 140 x 100 cm (incl. printing and cutting)
-
max. plate size 5 mm plate: 175 x 125 cm (incl. printing and cutting)
Would you like a contour cut?. A contour cut is not recommended for hollow chamber plates because the chamber structure would not produce clean edges. We recommend using Forex or Alu Dibond for contour-cut plates.
Hollow chamber plate – technical data
Hollow chamber plates are lightweight plates made of polypropylene, consisting of an inner layer of hollow longitudinal cracks covered with a smooth PP layer. The longitudinal groove structure is easily visible and tangible.
- Material: polypropylene (PP)
- Surface weight (grammage): 450 g/m² (3 mm sheet), 900 g/m² (5 mm sheet)
- Sheet thickness: either 3 mm or 5 mm
- Surface: longitudinal groove structure slightly visible and tangible, matt
- Wind permeability: 0%
- Light transmission: medium
- Weather resistance: 1-2 years (depending on exposure)
- Sound permeability: 0%
- UV resistance: 1-2 years (depending on exposure)
- robust but not kink-resistant
- Print: 1-sided (2-sided on request)
- Print quality: 6c digital print, colour-intensive
- No B1 certificate
What are the best applications for hollow chamber plates?
Hollow chamber plates are popular as inexpensive, lightweight plates for short-term use.
In the events industry, the material is used for the following, among other things:
-
advertising signs
-
signage
-
signage
-
and much more.
In addition, hollow chamber plates are very popular for:
-
election posters
-
circus posters
-
signs with event announcements for attachment to lampposts, fences, etc.
Tips for mounting
We recommend the following accessories for attaching the hollow chamber plates:
- Adhesive tape – e.g. double-sided tape or cloth tape / gaffa tape
- Screws
- Staples (only for the 3 mm plates, the 5 mm plates are too strong for this)

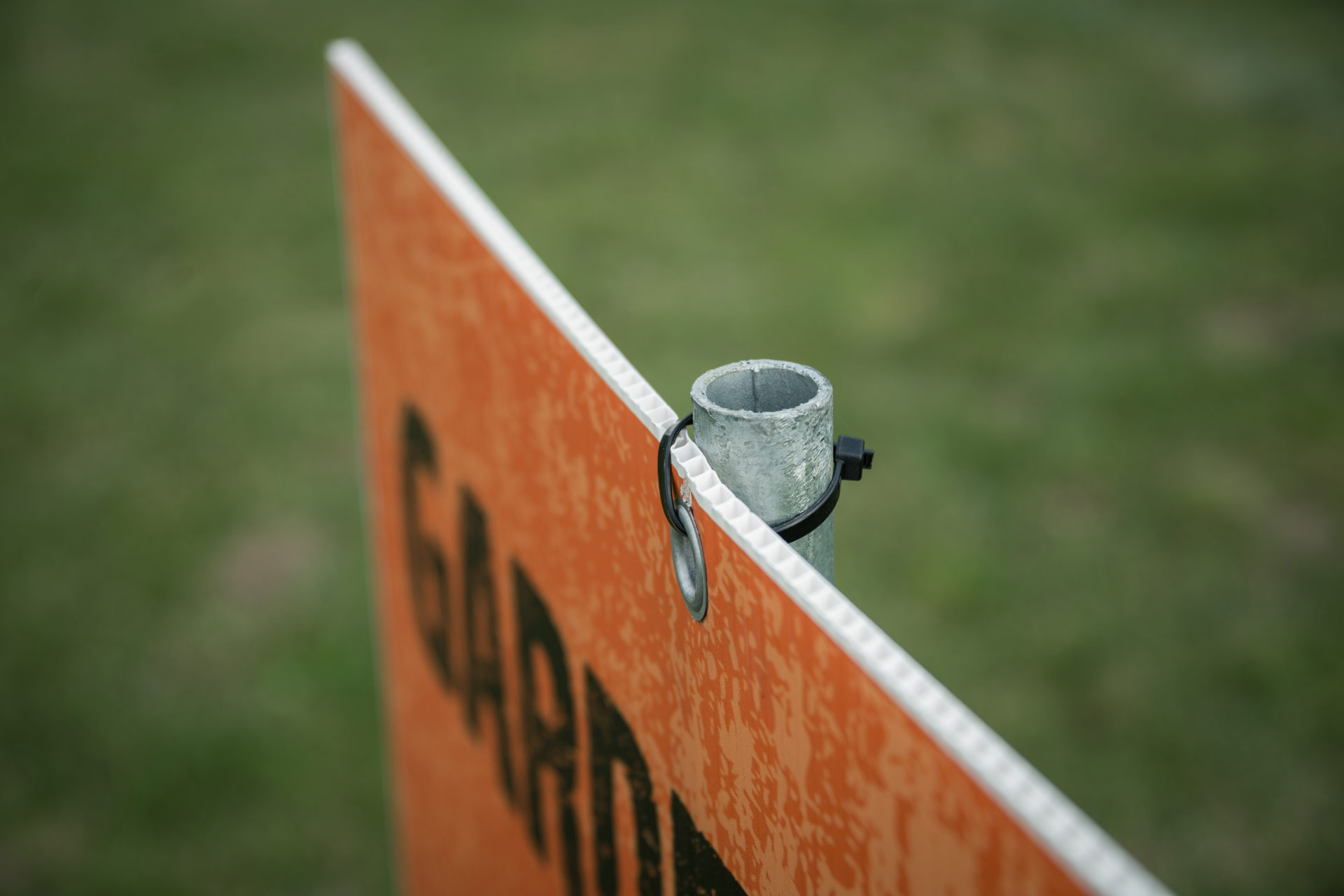

- poles/rods: these can be easily inserted through the longitudinal grooves – ideal for securing in soft ground
- sign stands
In general, the signs should be handled with care during assembly. With heavy loads and strong winds, the 3 mm plates in particular can bend along the longitudinal groove, while the 5 mm plates are stronger and more stable.
On request, the hollow chamber plates are available with pre-drilled holes!
Information on transport and storage
The hollow chamber plates are shipped with edge protection, so the plates are better protected against damage.
Signs made of hollow chamber plates are usually disposed of after use. However, there is nothing to prevent them from being reused. When storing them, care should be taken to ensure that the plates are not bent and that the edges are well protected.
What are the alternatives to hollow chamber plates?
In addition to the hollow chamber plates, we have various other plates in our range. We recommend the hollow chamber plates as low-budget plates or for all short-term outdoor applications.
The honeycomb plates are somewhat more stable. These are very similar to the hollow chamber plates, but have an internal honeycomb structure – similar to bee honeycombs – and are therefore considerably more stable than the hollow chamber plates with a longitudinal groove structure.
The Forex plates made of PVC hard foam are even more stable and also heavier, available in different thicknesses.
For long-term use, we offer the highest quality Alu Dibond panels, which are extra stable and robust and the most stable of our panels.
Conclusion: hollow chamber plates – affordable, lightweight plates for temporary signage
Are you looking for an inexpensive material for signage at your event? A material for election posters, circus posters or to announce a trade fair? Do you want your material to be light and flexible, weather-resistant and easy to assemble? A B1 certificate is not important because the sign will be used outdoors anyway? Then you are best advised to use hollow chamber plates!
Buy printed hollow-chamber plates from allbuyone
We print high-quality corrugated sheets and deliver reliably and quickly. Our configurator offers you many more sheets as well as a wide range of other materials for customised printing. We would be happy to advise you in person and help you choose the right material for your project. You can contact us at +49 89-122 89 06 22
