multicore barricade | silver | W 109 x H 118.5 x D 125 cm | Weight 43.5 kg | GIGS | Aluminium stage barricade with cable protectors Passage 80 x 15 cm for the safe routing of cables and lines through barriers
Gigs, multicore barricade
Gigs, multicore barricade
| Colour: | silver |
|---|---|
| Material: | Aluminium |
| Opening Outlet: | 80 cm x 15 cm |
Safety is a top priority at festivals, concerts and other public events. Gigs stage barriers enable danger areas to be cordoned off and visitor areas to be restricted and are also used as secure entrance gates. We offer a wide range of different Gigs elements that can be used to meet almost any barrier requirement.
An important and frequently used module is the multicore barricade. This element has the same dimensions as the GIGS stage barricade standard, with a length of 1.09 m, a width of 1.25 m and a height of 1.18 m. The weight of a multicore passage is approximately 40 kg. The special feature of this barricade is the opening in the lower section (approx. 0.80 x 0.15 m). The recess for cables and wires allows a connection from, for example, FOH to the stage through the closed barricade. The multicore barricade is designed so that this element can also withstand high audience pressure with ease.
Youcan purchase the multicore barricade in the allbuyone shop, along with many other stage barricades and matching accessories.
| Colour: | silver |
|---|---|
| Material: | Aluminium |
| Opening Outlet: | 80 cm x 15 cm |
Multicore Barricade – Gigs stage barricade with cable access and much more
Gigs stage barricades are used at events all over the world and are highly valued by organisers. The quick and easy-to-connect, highly solid barrier system enables countless possible combinations. With the different elements, which are all compatible with each other, the right barrier is guaranteed for every stage or event architecture.
The Multicore Barricade is used when a passage is needed in the barricade row. This makes it easy to route cables and other connections through the stage barricades. The Multicore is 1.09 m wide, 1.25 m deep and 1.18 m high. The recess in the element measures approx. 15 x 80 cm. In the new multicore barricades, the base plate has been removed in the middle to create additional space for cable protectors. The weight of this element is approx. 40 kg. The matching transport dollies can hold 10 or 6 of them, respectively, for easy transport. As an alternative, we also offer the Multicore Gate (MAG), which has a gate that can be opened in both directions.
, we recommend starting with the multicore barricades and then spreading out to the left and right. This ensures that the element stays where it is supposed to.
Gigs stage barrier multicore
Gigs stage barrier multicoreicon type="icon--info" size="large"color="green"Tip: We recommend laying out a row of rubber mats before setting up the stage barriers. The mats provide additional protection against slipping of the barrier system. In addition , the barricades wear less due to the rubber underlay.
- Design: stage barricade multicore
- Type: straight element with passage
- Material: welded aluminium
- Height: 1.18 m
- Depth: 1.25 m
- Width: 1.09 m
- Weight: approx. 40 kg
- colour: silver (unmachined) or black (powder-coated)
- Transport: 10 units / dolly
- flattened
- Step: not available

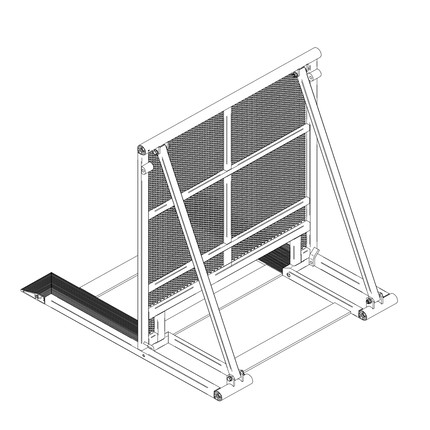

Gigs Stage barrier Multicore – Technical drawingcolor="green"Further important information about the construction and use of stage barricades can be downloaded as a data sheet at the bottom of this page.
Personal advice from event professionals
We will advise you personally and make sure you find exactly what you need!We are at home in the event industry. From stage barricades to admission wristbands, we can provide you with everything you need for your event.
Do you have specific questions about the modular barrier system for events? Not sure which barricades to buy? We are always happy to help and advise you in person!
Contact us by phone or send us an email to: [email protected]
Other combinable Gigs elements for barriers at events
All Gigs stage barricades and special elements are compatible with each other and can be connected in a force-locked manner. The following additional products can be ordered from our shop:
- Standard: the main module of Gigs Barricades is the straight standard stage barricade
- Multicore and Multicore entrance gate: allows cables and cable protectors to be fed through
- Truck Gate: allows cars and lorries to pass through.
- Emergency exit gate: gate for safe evacuation of the event area
- Vario -/+ 60° angle element: variable cornerelement that can withstand spectator pressure at the same time
- internal angle and external angle(5°, 22.5°, 45° or 90°): fixed angle elements for curves and corners
- T-corner element: allows two rows of barricades to be connected at right angles
- Flex corner element: suitable for angles from 0° - 90° and height differences of up to 5 cm
- Single entrance gate or double entrance gate: stable and secure entrance system
Buy multicore barricade – low price in the allbuyone shop
We offer everything you need for events, including an excellent barrier system like the Gigs stage barricades. In our shop, you will find not only the multicore barricade but also a wide range of different Gigs elements. We would be happy to advise you personally on this extensive topic at +49 89-122 89 06 22
