1-channel cable protectors | black | Cableguard Cablecover | 77 cm x 22 cm | height 20 mm | up to 4.7 t load capacity | flat cable duct can be driven on for events and in workshops | cable ramp | drive-over cable protection & trip hazard protection for cables | non-slip, non-conductive, RoHS-compliant
Event cable protectors – Cableguard, Cablecover
Event cable protectors – Cableguard, Cablecover
| Colour: | black |
|---|---|
| No. of Slots: | 1 |
| Features: | straight, flat segment with open bottom |
The 1-channel cable protector is a lightweight ( 2.5 kg) and quick- ly installable cable protection. The flat, one-piece cable ramp (channel size 3.2 x 22 x 77 cm, h x w x l) is simply placed on the floor over cables and wires . A simple yet secure plug connection (tongue and groove) allows additional cable protectors to be added. The Cablecover Event offers an internal cable channel with channel dimensions of 4.5 x 2.0 cm. The cable protector provides space for cables and wires up to a diameter of 20 mm.
Single-channel cable protectors are an inexpensive accessory for indoor and outdoor use and are particularly useful for preventing tripping accidents. Pedestrians and wheelchair users can cross the flat ramps safely thanks to their non-slip profile. As overrun protection, the cable protector can only be loaded up to 4.7 t per axle and should only be driven over slowly by cars and trucks . The 1-channel cable protector is not suitable for public road traffic. For heavily frequented areas, during events or production, we recommend cable protectors that are designed for higher loads of at least 7 t .
You can buy the 1-channel cable protector in the allbuyone shop at a low price with fast delivery. Choose the product in black or signal red. Our range includes a wide selection of different cable protectors and robust cable mats made of SBR rubber.
| Colour: | black |
|---|---|
| No. of Slots: | 1 |
| Features: | straight, flat segment with open bottom |
1-channel cable protector – affordable cable protection for events
The 1-channel cable protectors provide safety when used at events and are an affordable accessory for your equipment. Whether at a market, fair, street party, festival, in the warehouse or office, the flat on-floor channels can be used flexibly in a short time. The plastic cable channel offers solid cable protection for cables up to 20 mm in diameter and protects pedestrians from tripping accidents .
How do you use the single-channel cable protector? Lay the cables and lines, place the cable ramp directly over them, fix the plug connection to a second ramp, and you're done !
The robust material (halogen-free polyurethane) offers high resistance to water, salts, oils, petrol and acids. The cable protector is UV stable and temperature resistant, which is why the product is suitable for indoor and outdoor use .
You can buy the 1-channel cable protector in our shop at a reasonable price with fast delivery (approx. 1 to 2 days). The cable ramp is available in black or in signal red . It offers an internal channel size of 4.5 x 2 cm, with a total channel dimension of 77 x 22 x 3.2 cm (length, width, height ). A lternatively, the ramp is also available asa mini cable protector measuring 77 x 13 x 2.2 cm, which then offers a channel size of 3.8 x 1.2 cm.
In addition to the single-channel cable protector, we also offer many other cable protectors for you to choose from. Our range includes yellow jackets cable protectors, cableguard and defender cable protectors, with two to six channels, for pedestrians as well as cars and heavy trucks.
Note: What to look out for when using a 1-channel cable protector!
These]2.5-kg lightweight single-channelcable protectors are primarily used to protect pedestrians from tripping accidents. They can withstand an axle load of up to 4.7 tonnes. The ramps are not suitable for use as hose bridges or overrun protection in road traffic. Forklifts, cars and trucks should only drive over the floor-mounted trunking at walking speed, otherwise there is a risk that individual trunking units will slip due to their low weight.
Length, dimensions, weight and other properties of the 1-channel cable protectors
- Length: 77 cm
- Width: 22 cm
- Height: 3.2 cm
- 1 cable channel: 4.5 cm x 2.0 (width x height)
- Weight: 2.5 kg
- Load capacity: 4.7 t axle load
single-channelcable protectoris branded with our allbuyone logo as standard. Individual motifs are also possible on request for orders of 50 or more. Use the cable protectors for advertising and also to prevent the ramps from being mixed up at events.

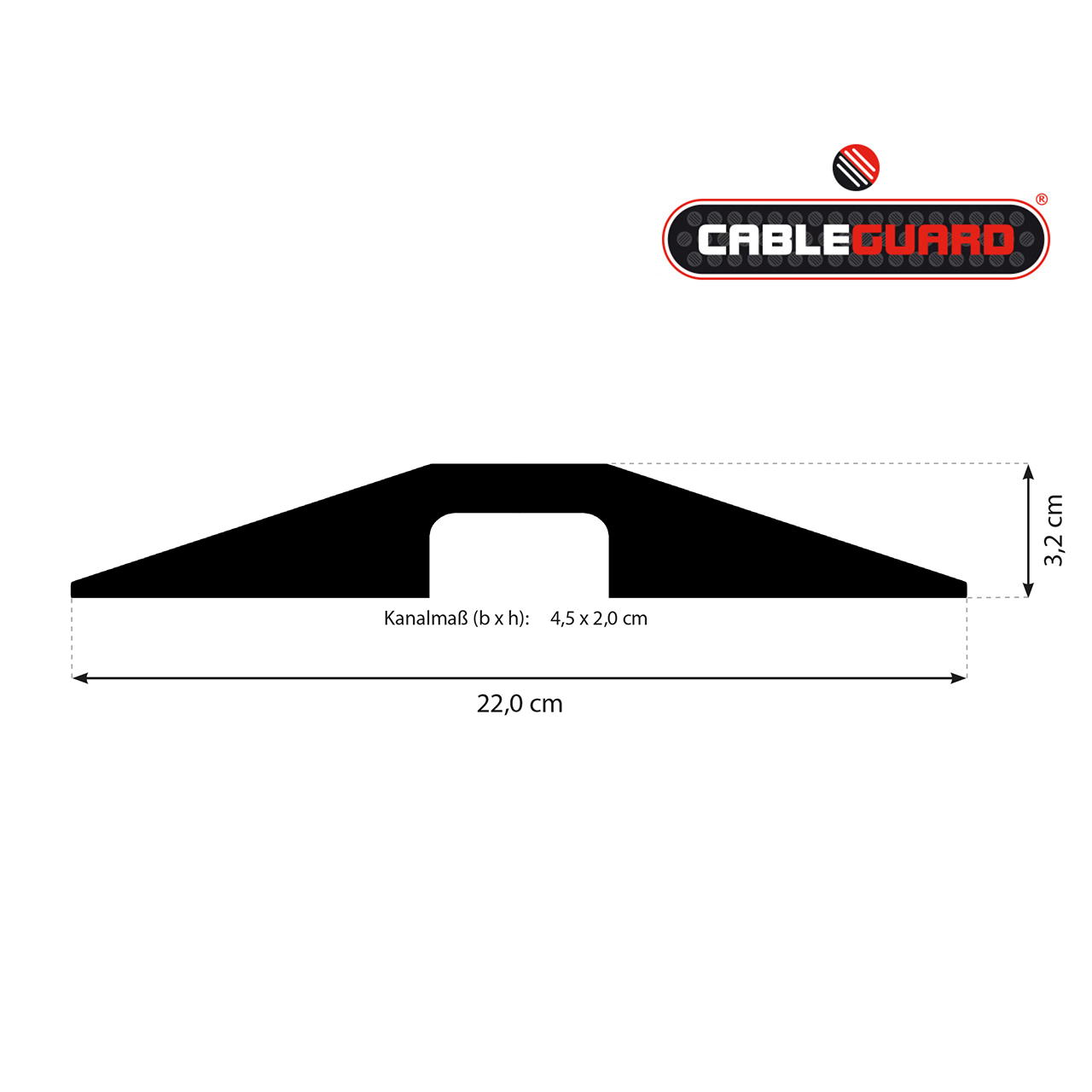

Details: cross-section of the product
, we recommend removing the occasional silicone residue that occurs during production with water and detergent. However, this is not a must, because the residues have already disappeared by themselves after the first use of the cable ramp.
1-channel cable protector Event – overview of information and details
- Model: 1-channel cable protector Event
- Design: straight element
- Channels: 1
- Weight: 2.5 kg
- Load capacity: Max. axle load 4.7 t
- Cable diameter: Up to 20 mm
- Colour: Black, red (RAL 3020)
- Material: Halogen-free polyurethane (PUR)
- Temperature resistant: -40°C to +49°C
- Flame protection class: B2 normally flammable
- Resistance: resistant to oil, acids, petrol, water and UV radiation
- Additives: RoHS-compliant
- Standards: Slip-resistant in accordance with R11 of DIN 51130, IEC 60529
- Type: Cableguard Cablecover
- Surface: Non-slip profile (grooved), integrated non-slip pads
- Dielectric strength: 110 kV, non-conductive according to 2014/35/EU
- Water absorption: ISO 62 / ASTM D570
- Logo: engraved with allbuyone logo, individual logo free of charge for orders of 50 or more
color="green) Note when ordering cable protectors: Please note that you buy the 1-channel cable protector in black or in the signal colour red. The black bridge plate is available individually . Only orders of 50 or more are possible for the ramp in red.
1-channel cable protectors: technical properties
- The floor channel does not absorb water and is therefore protected from swelling. The plastic overrun protection thus meets the requirements of ISO 62 / ASTM D570 (determination of water absorption in plastic).
- The high-quality plastic used to make the ramps is vulcanised hard polyurethane. This material is resistant to oil, acids, petrol, water and UV radiation. Thanks to its high quality, the cable protector is CE marked.
- The overrun protection is equipped with a dielectric strength of max. 110 kV in accordance with the standards 2014/35/EU. The material is also non-conductive.
- The ramp complies with the EU directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
- The cable duct complies with DIN 51130, group R11 for determining the anti-slip properties of floor coverings.
- The product is certified according to DIN 4102 B2 for normally flammable building materials, as well as IEC 60529 (standard for degrees of protection provided by enclosures).
Advantages of the 1-channel cable protectors
The Event cable protector is the larger version of our simple Office cable protector. The advantages of such cable protectors are not only their low weight. The ramps can be laid over cables and lines in a time-saving manner, quickly connected to each other and used flexibly.
The single-channel cable protector offers protection and safety at events. It makes it possible to prevent pedestrians from tripping over cables. To ensure that trucks and cars can cross the cable protectors safely , vehicles should only cross the cable ramp at walking speed.
The range of application of both cable protectors is almost identical. Thanks to its ribbed surface, it is non-slip for pedestrians. The plastic cable ramp offers reliable protection against any voltages that may occur with a dielectric strength of 110 kV.
color="red"Please note: The overrun protection is suitable for public events for outdoor use. The cable duct is not certified for indoor use. This cable protector is not approved for use in road traffic. The single-channel cable protector can support up to 4.7 tonnes per axle. This cable protector should not be used in places with regular vehicle traffic. Due to its low weight and small contact surface, there is a risk that the ramps may slip when driven over.
Use our personal advice service
Personalised advice from allbuyoneOur range includes a variety of different cable protectors and hose bridges. Cable ducts at an affordable price as well as high-quality heavy-duty cable protectors for demanding requirements.
Order directly or get in touch with our expert team for personal advice on +49 89-122 89 06 22.
Our shop also offers a wide selection of cable protectors that are designed for significantly higher loads and provide even more protection when laying cables thanks to closed cable ducts and larger contact surfaces. These cable protectors include the Yellow Jacket "Classic" and the Cableguard - Red Line 5. Some of our ramps can be fixed to the floor for additional anchoring.
No accessories necessary – instructions for use

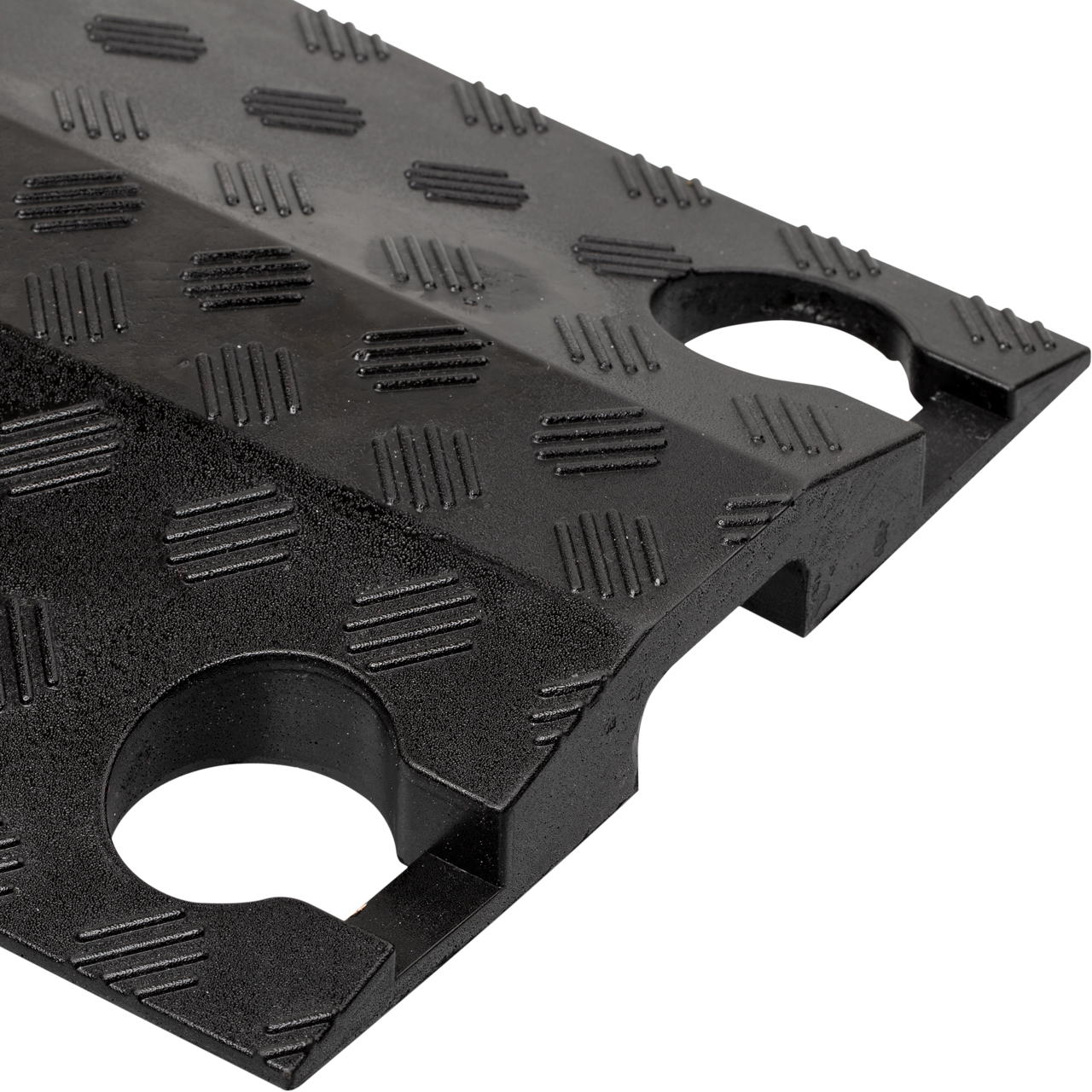

The manufacturer's instructions state that the cable protectors can be laid on concrete, asphalt, artificial grass carpet, grass and almost any other surface. To protect the cables and keep people safe, simply place the cable protector over the cables and connect the individual cable ducts with a plug-in connection (tongue and groove) of any length. The only thing to bear in mind is that the cables are not too thick for the cable duct.
on uneven surfaces such as meadows, the 1-channel cable protectors offer little contact surface. The ramps can therefore slip more easily and do not offer quite as much security as wider models. Therefore, make sure that a cable protector like the Ranger or Yellow Jacket from our shop is better suited to your requirements.
Cleaning and storage of the cable ramp
The Event cable protectors can be easily cleaned with water and, if heavily soiled, with a steam cleaner. For storage, we recommend that you do not place the cable protectors, but always store them horizontally in the warehouse to avoid unnecessary damage.
Other products: high-quality cable protectors and hose bridges
Are you looking for a cable protector that reliably protects pipes, hoses and cables from heavy goods traffic? We offer a wide range of different cable protectors. You can choose from 15 different models depending on your requirements and use:
- hose bridge: ideal for protecting and guiding hoses
- Yellow Jackets: High-quality and very popular cable protectors
- Ranger cable protectors:: affordable and highly resilient – the right price-performance ratio!
- Cableguard cable protection bridges: Premium quality at fair prices in many variations.
Other accessories: SBR rubber mats and cable tape
Cable protectors don't always have to be used for the many cables and lines needed at events. As additional equipment, we offer cable protection mats made of solid rubber or tunnel tape in black and black/yellow at a reasonable price.
Buy 1-channel cable protectors – easy to order and fast delivery
Buy 1-channel cable protectors at a low price in the allbuyone shop – your shop for event supplies. If you have any questions, we will be happy to provide you with additional personal advice. We look forward to your call on +49 89-122 89 06 22
