Print honeycomb plate

More stable than multi-wall sheets, yet thin and just as lightweight: the hollow chamber plate with honeycomb structure is the stable version of hollow chamber plates.

As the name suggests, the honeycomb plate has a honeycomb structure between two PP plates, similar to a honeycomb. This makes the plate more stable than hollow chamber plates with a longitudinal groove structure and resistant to bending, despite a thickness of only 2.8 mm.

The printed sheet is weatherproof and UV-resistant and is mainly used as an outdoor material, an inexpensive material for short to medium-term use, for example for circus posters, election posters, temporary advertising signs and for signage at sporting events and other events.

We print honeycomb panels using 6c digital printing. The smooth, matt surface enables high-quality printing with intense colours and clear edges.

Order printed honeycomb plates – here's how

Have honeycomb plates printed individually – it's quick and easy with our configurator. Here is a brief overview of the ordering process:

Give each individual panel a name (optional) – this name will appear on all documents and you will always have an overview.
Specify the width and height.
Select the desired finishing for the top, bottom and side edges – there are various standard finishes to choose from.
Save the product.
Then add your finished panel to your shopping basket and complete your purchase or add another item.
After successful purchase, you will receive an order confirmation for your honeycomb panel and a link to our data sheet, which contains important information regarding the layout and transmission of your print data.
You will then receive a second email with an order confirmation and a personalised link for uploading your print data.
The order confirmation also contains the expected delivery date*.
We will check your data for printability. We will automatically correct minor corrections for you. If the resolution or similar is incorrect, we will actively contact you. This service is free of charge for you!
Once the data is correct, your products will go to print.
The honeycomb panels will be shipped to you after production.

*Exception for prepayment: In this case, we will only start production of your printed materials after receipt of payment. The delivery date is therefore dependent on receipt of payment.

Please ensure that your print data is carefully prepared. Confirmed print orders are custom-made and cannot be exchanged.

Do you have any questions? We are happy to advise you!

Our team will be happy to advise you personally!

Not sure whether honeycomb panels are the right material for your project? Can't find the panel material you're looking for in our shop?

Or would you simply like to play it safe and get personal advice? We would be delighted to help! You can contact us by email at [email protected] or by telephone in Munich on +49 89-122 89 06 22.

Key features at a glance

Suitable for: temporary advertising signage, directional signs, such as election posters, etc.

UV resistance: 1-2 years (depending on exposure)

B1 flame retardant: no

Area of application: outdoor, short to medium term

Print: 1-sided (2-sided on request)

Print quality: rich colour reproduction in 6c digital print

Max. panel size (for single-piece printing): 1.75 m x 1.25 m incl. printing and cutting

Minimum size: 20 cm x 20 cm

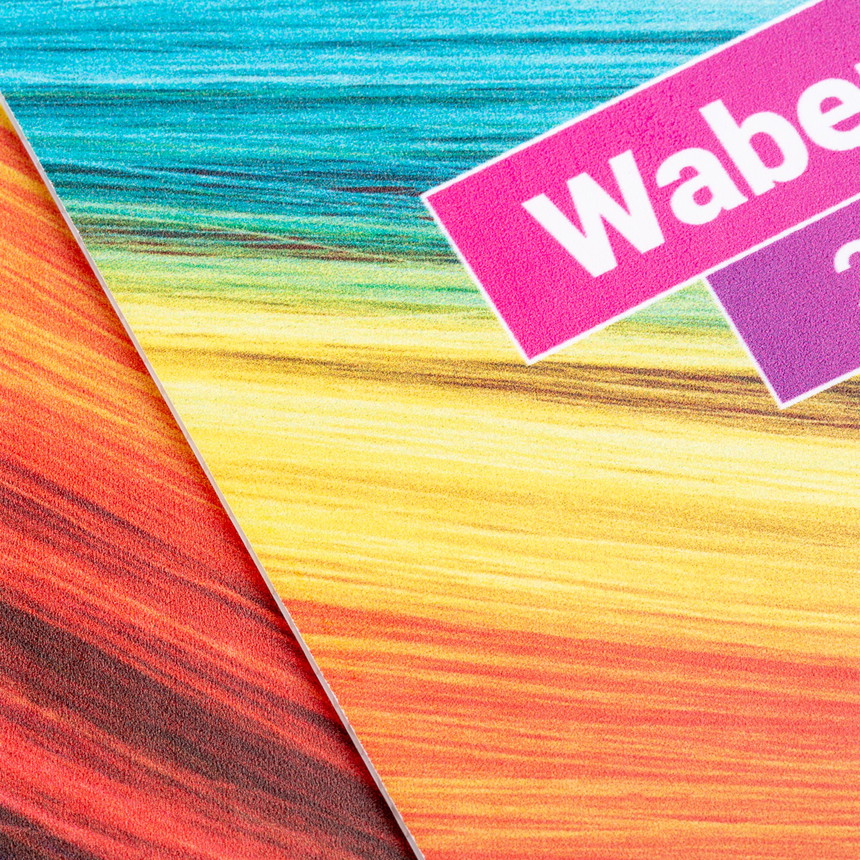

Details on the print quality of the hollow chamber plate with honeycomb structure

The honeycomb plate has a smooth surface structure and can be printed well with rich colour reproduction in. Only with very small motifs is the print not absolutely detailed. We print honeycomb plates on one side using 6c digital printing. The plates have a maximum size of 1.30 m x 1.80 m, and the max. plate size including print and cutting is 1.25 m x 1.75 m.

Double-sided printing is also available on request.

Honeycomb panel finishing: cut to size

We cut the honeycomb plates to size. The maximum size of a plate is 1.75 m x 1.25 m (printed, including cutting), the minimum size is 20 cm x 20 cm. We will be happy to calculate smaller formats for you on request.

Would you like the plates to be contour cut? Contour cutting is not recommended for honeycomb plates because the honeycomb structure does not allow for clean edges. For contour-cut plates, we recommend Forex or Alu Dibond.

Technical data for honeycomb panels

Honeycomb panels are lightweight panels made of polypropylene, consisting of two PP layers with a honeycomb structure in between. The honeycomb structure makes the panel resistant to bending, and the structure is visible when illuminated.

Material: polypropylene (PP)
Surface weight (grammage): 480 g/m²
Panel thickness: 2.8 mm
Surface: smooth, honeycomb structure visible depending on lighting, matt
Wind permeability: 0%
Light transmission: medium
Weather resistance: 1-2 years (depending on exposure)
Sound permeability: 0%
UV resistance: 1-2 years (depending on exposure)
Durable, virtually crease-resistant
Printing: single-sided (double-sided on request)
Print quality: 6c digital print, colour-intensive
No B1 certificate

What applications is the honeycomb panel best suited for?

The affordable honeycomb panels are ideal for short to medium-term outdoor use. The panels can also be used indoors, but please note that the material is not B1 certified.

Thanks to their honeycomb structure, honeycomb panels are resistant to bending and very light, weighing only 480 g/m².

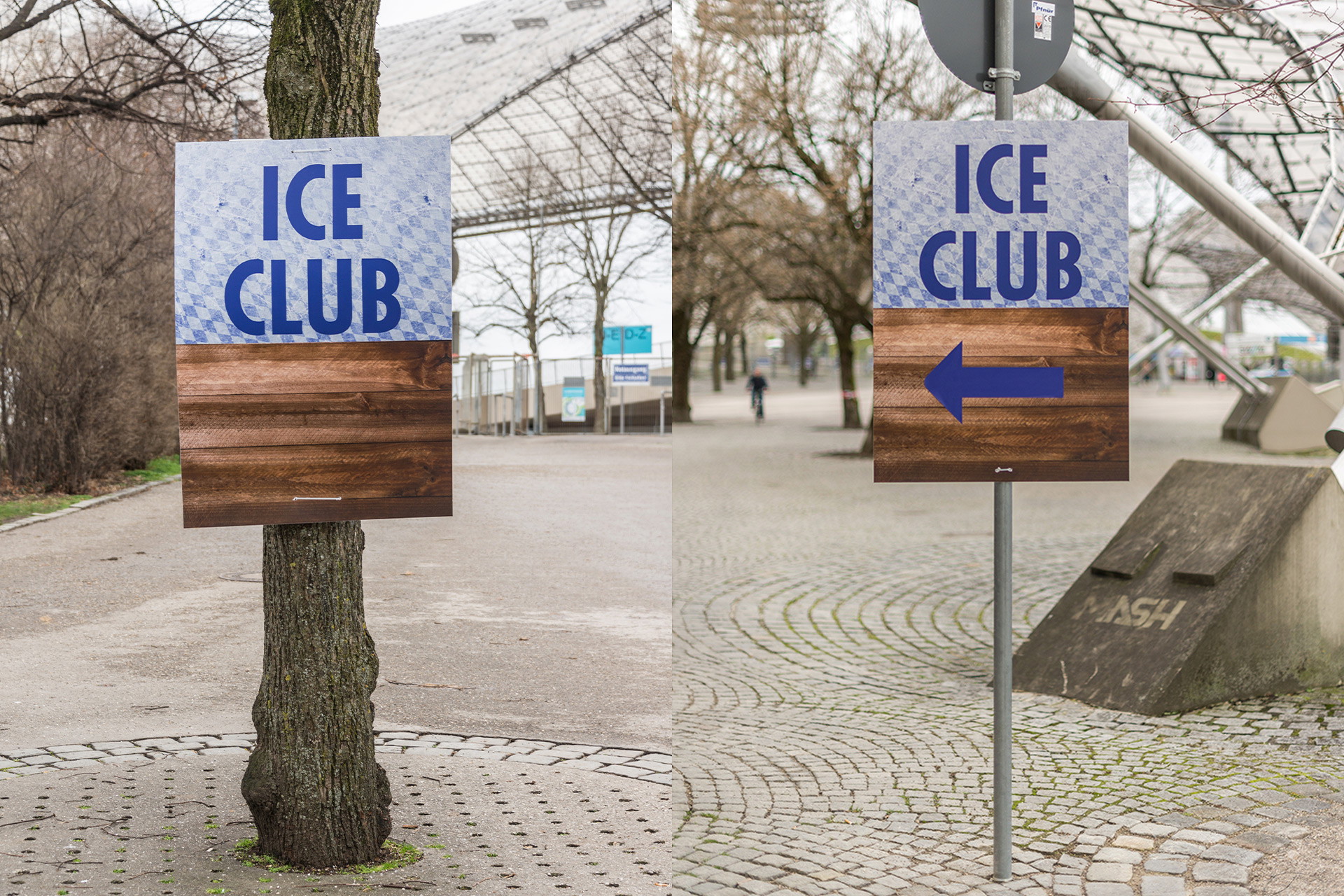

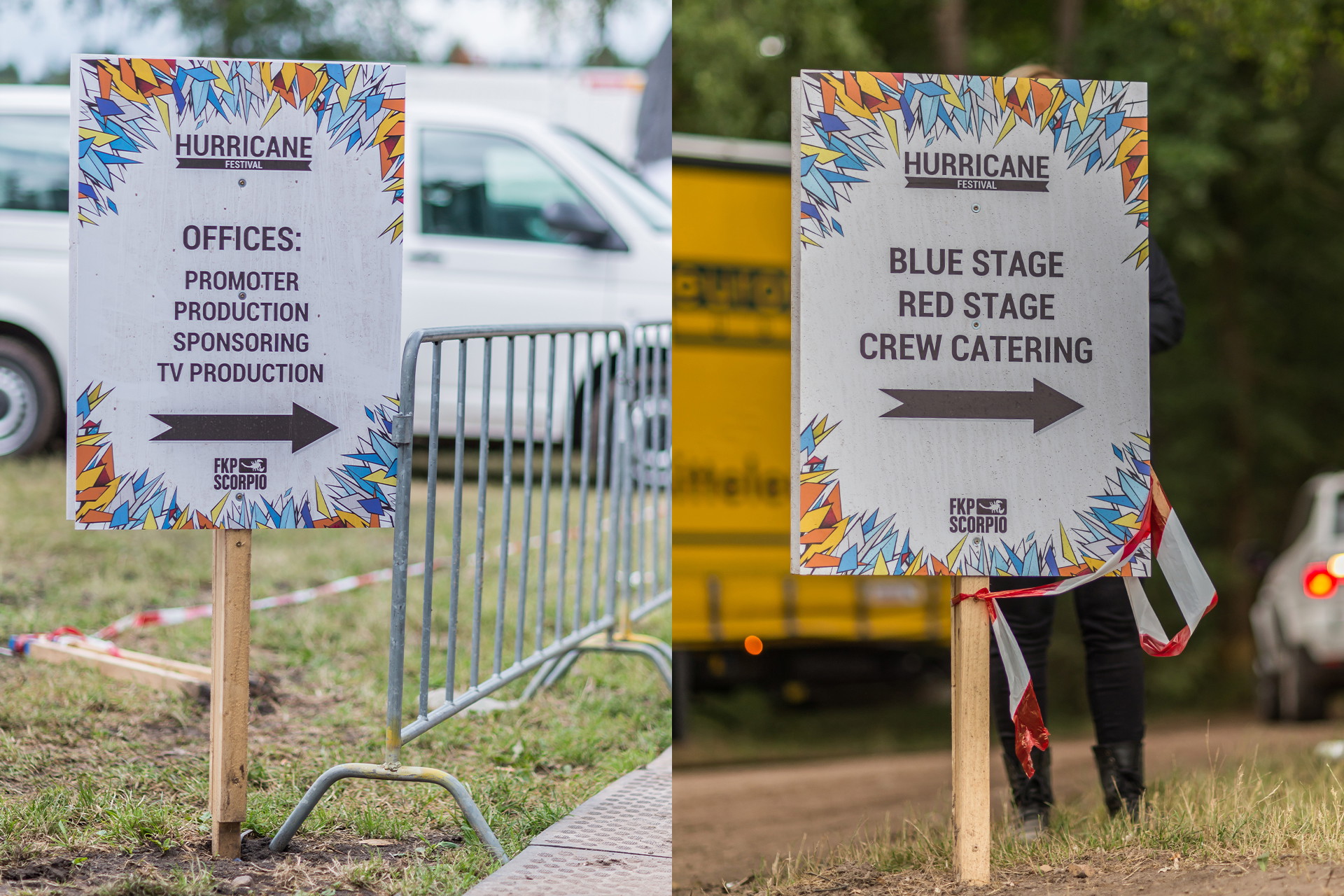

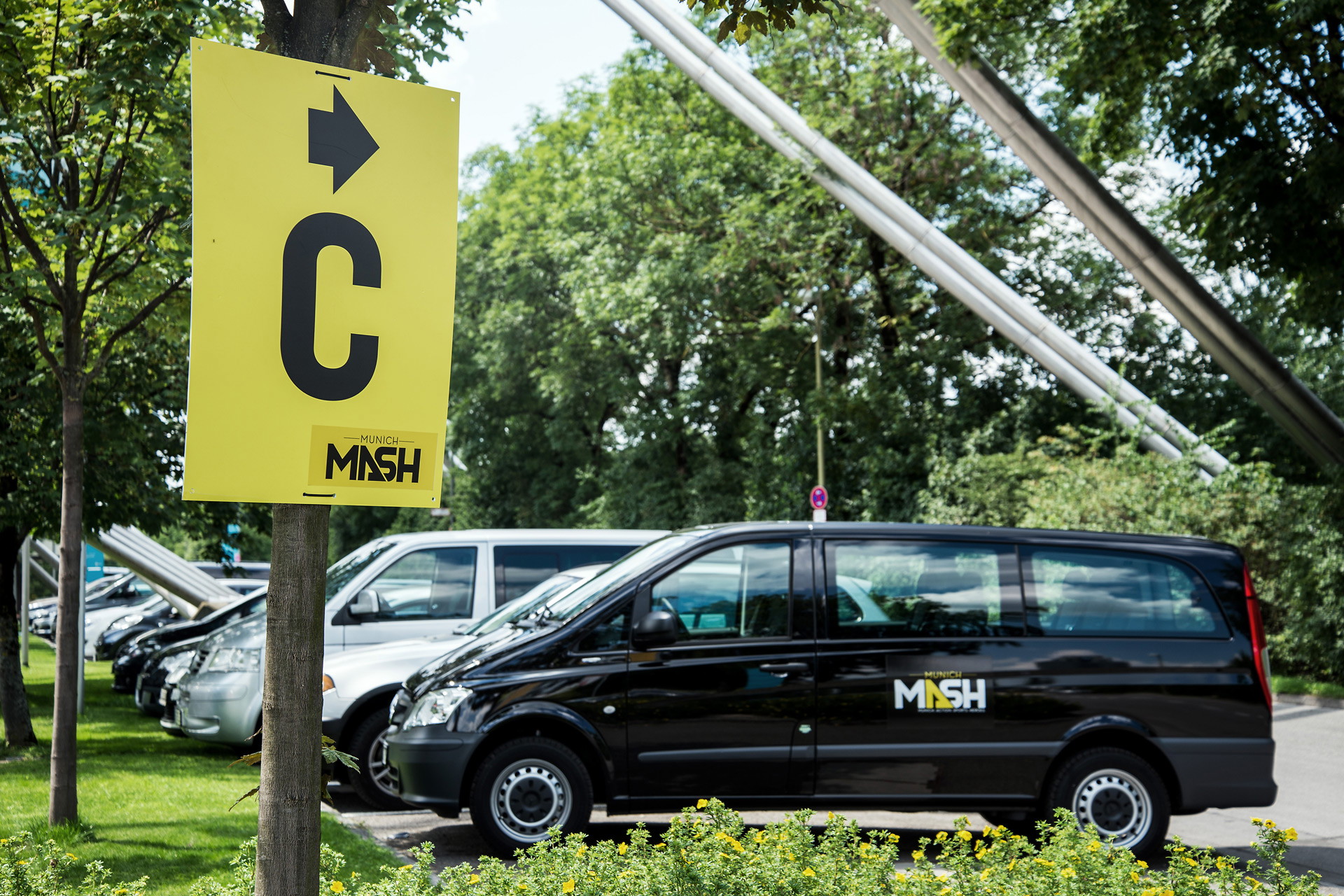

In the event industry, the material is popular for:

Advertising signs
Directional signage
Information signs
and much more

Honeycomb panels are also ideal for:

Election posters
Circus posters
Announcements for trade fairs, festivals, etc.

How do you attach honeycomb panels?

We supply honeycomb panels cut to size in your desired dimensions. The following are suitable for fastening:

adhesive tape
Screws
Staples
Cable ties – a hole can be punched through the panel for fastening with cable ties.
Sign holders

The honeycomb panels are available with pre-drilled holes on request !

Information on storage and transport

The honeycomb panels are fitted with edge protection for transport, which provides better protection against bending.

Honeycomb panels are inexpensive panels that are usually manufactured for single use and then disposed of. However, there is generally no reason why they cannot be reused. Ensure that they are stored in a dry place and that the panels are not bent.

What alternatives are there to honeycomb panels?

In addition to honeycomb panels, we have various other panel materials in our range. Honeycomb panels are an inexpensive, lightweight material for short to medium-term use.

Our cheapest material for panels is hollow chamber plates (web plates), which are similar in structure to honeycomb panels but have a simple longitudinal groove structure instead of a honeycomb structure. This makes the material more susceptible to creasing, but ideal and completely sufficient for election posters, event announcements and simple festival signage.

The Forex hard foam plates and the non-flammable Alu Dibond plates are much more stable and suitable for medium to long-term use.

Conclusion: Honeycomb panels – an inexpensive, very lightweight, stable material for temporary signs and panels

Are you looking for a lightweight, thin material for temporary signage? Durable, inexpensive panels for short-term use, for example for advertising posters, election posters or similar? The material should be weather-resistant, but does not need to be B1-certified because it will only be used outdoors? Then honeycomb panels are the right material for you!

Have hollow chamber plates with honeycomb structure printed at allbuyone

You can order printed hollow chamber plates with honeycomb structure from us in high quality with fast, punctual delivery. You will also find further materials for individual posters and plates as well as banners, stickers, etc. in our configurator! Do you have any questions? No problem, our experienced team will be happy to advise you personally. You can reach us at +49 89-122 89 06 22.

Material:	Polypropylene cellular board (thickness 2.8 mm)
Quality:	normal flammability
Characteristics:	smooth, matt, color intensive print

Honeycomb panel | 2.8 mm
