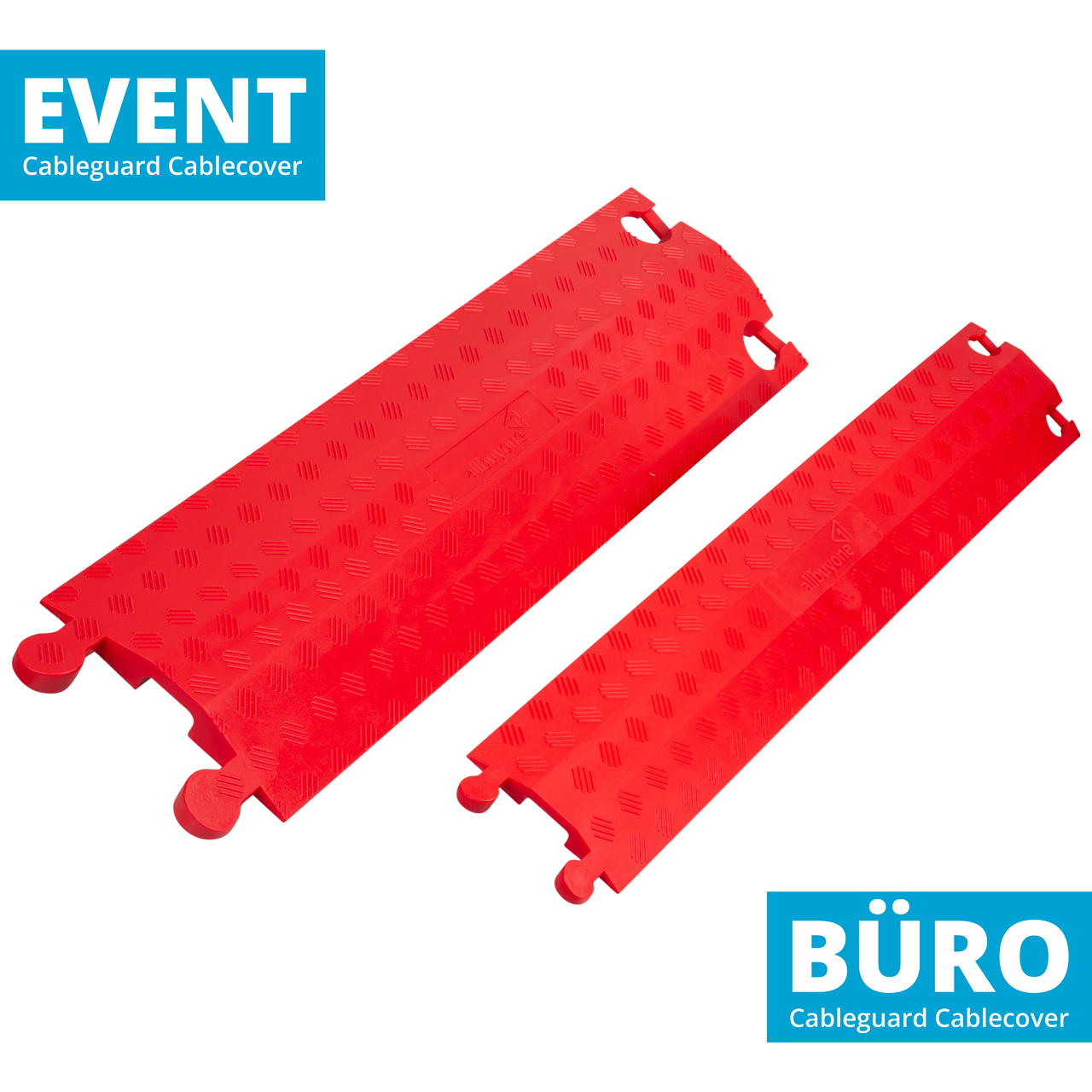

cable protector flat | red | Cable protector flat | Cableguard Cablecover Office, 1 channel in red | Cable protection for pedestrian traffic in the office, etc. | Wheelchair accessible, non-slip | 133 mm x 765 mm
Cable Protector CableGuard – Cable Cover Ø 12 mm red
Cable Protector CableGuard – Cable Cover Ø 12 mm red
| Colour: | red |
|---|---|
| Number of Channels: | 1 |
| Special Features: | Straight, flat element with open bottom |
| Load Capacity: | approx. 4.7 t |
| Channel Width: | 38 mm |
| Channel Height: | 12 mm |
| Body Width: | 133 mm |
| Body Length: | 765 mm |
| Body Height: | 22 mm |
| Weight: | 1.1 kg |
| Temperature Resistance: | -40°C to +49°C |
| UV Light Resistance: | high |
| Slip Resistance: | R11 according to DIN 51130 |
| Fire Protection Standard: | B2 according to EN13501-1 oil-, acid- and petrol-resistant |
| Dielectric Strength: | 110 kV according to 2014/35/EU |
| Material: | Halogen-free Polyurethane |
The extra flat cable protector Cableguard - Cablecover has a cable channel measuring 38x12 mm – it is used in various areas at events (backstage, FOH, production office), construction sites and in offices that are mainly frequented by people. As a cable protector, it can be laid flexibly on almost any floor. The cable protector, which is 765 mm long, 133 mm wide and only 22 mm high, prevents tripping accidents and contributes to both safety and accessibility.
You can buy the cable protector flat in the allbuyone shop in black or red with a short delivery time. As an alternative, you can choose another 1-channel cable protector with a larger cable channel.
Cable protector flat – for laying cables and pipes safely

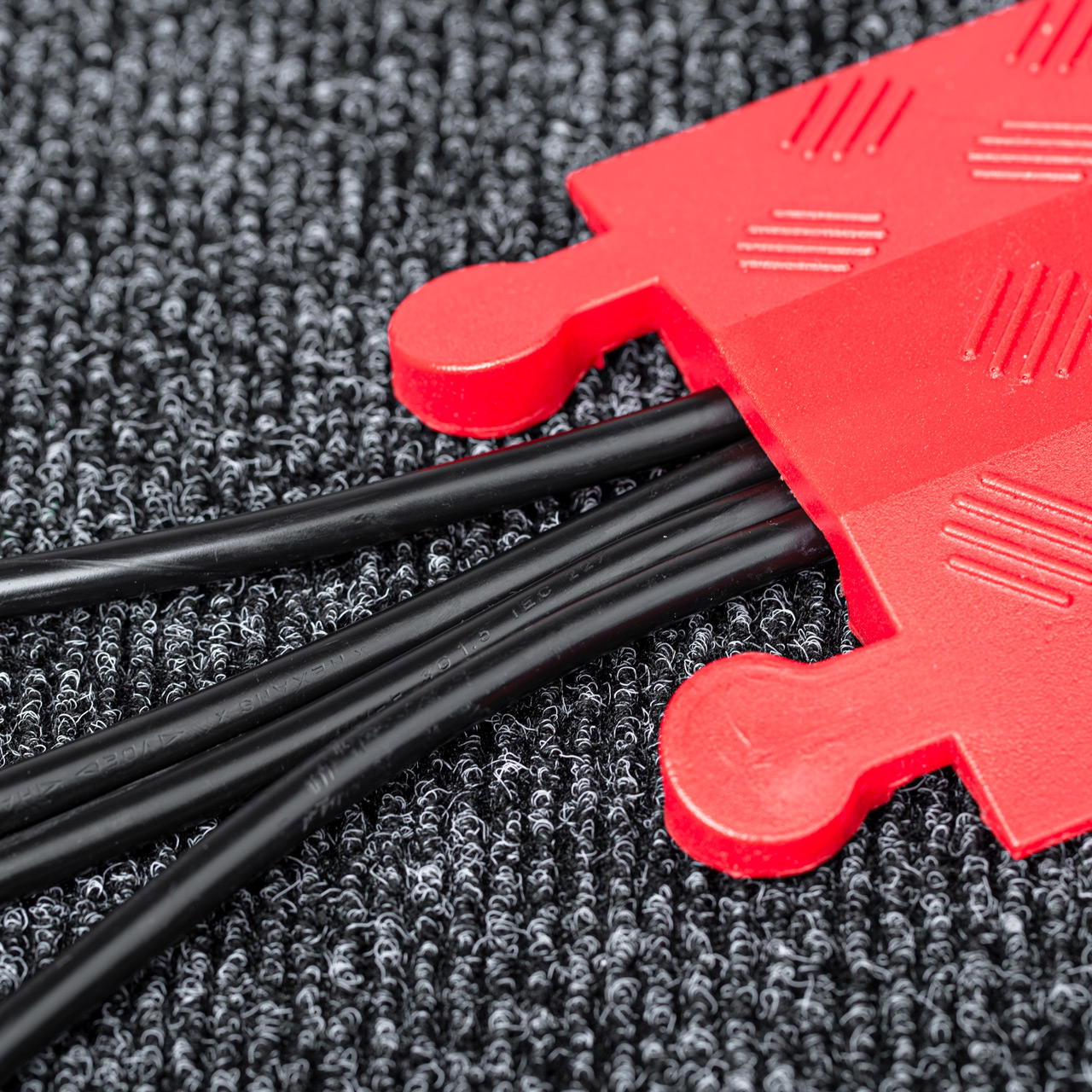

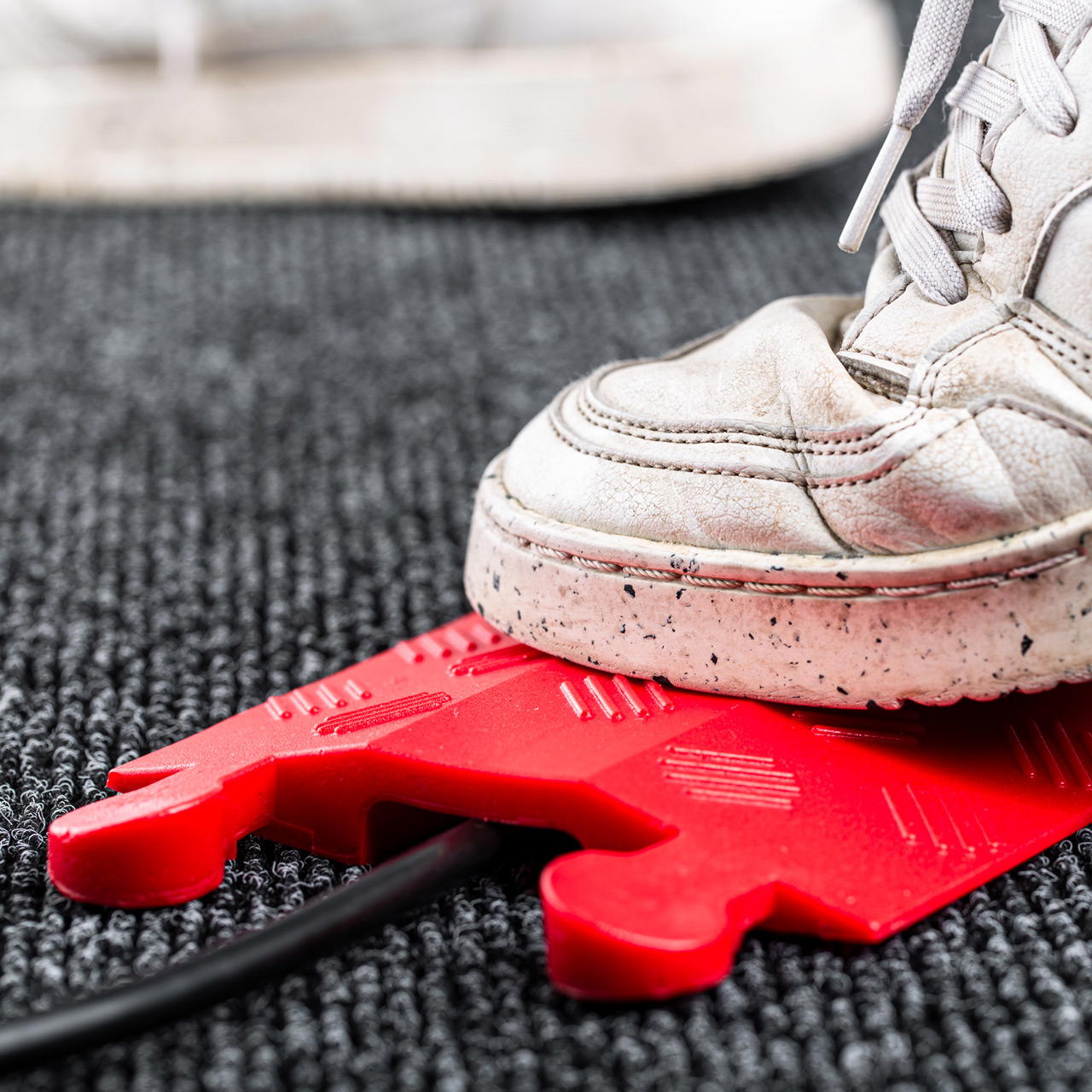

The particularly low and lightweight (1.1 kg) polyurethane cable protector increases safety in offices, warehouses, at events or on construction sites: The 38x12 mm cable duct protects thin cables and wires laid on the floor indoors or outdoors from damage caused by manual loads – and at the same time reduces the risk of passers-by tripping over these obstacles. The cable protector is not conductive and is safe to walk on. The extra-low floor channel with non-slip top and bottom also helps you to make your event barrier-free.
our other bridges, the Cableguard – Cablecover cable protector is not equipped with a cover, i.e. it is placed directly on the cables instead of being enclosed in the cable duct.
Cable protector Cableguard Cablecover – Overview
- Material: halogen-free polyurethane
- Design: straight element
- Colour: red (RAL 3020), black
- with allbuyone logo engraving
- Number of channels: 1 channel
- Surface: non-slip profile (grooved)

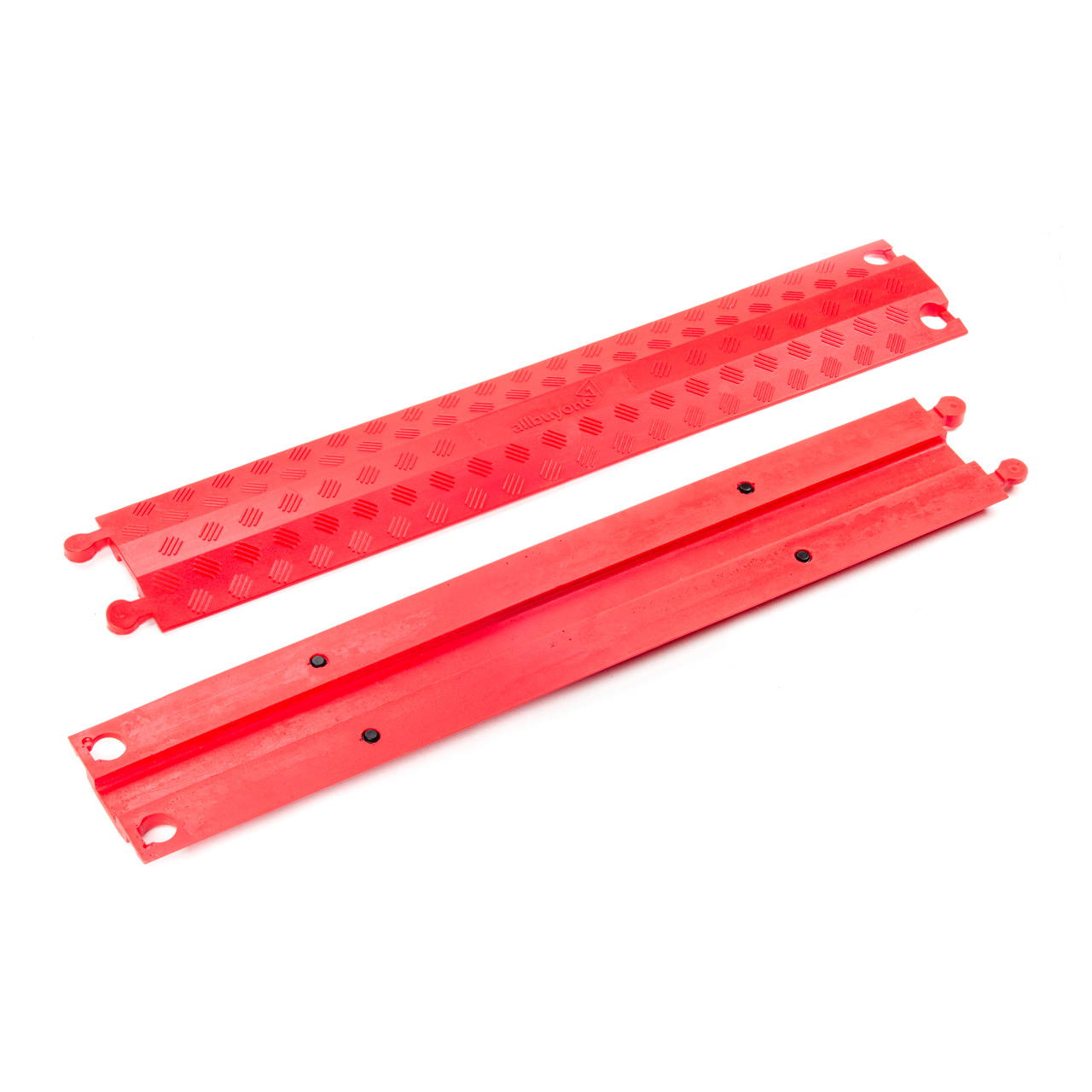

- integrated anti-slip pads for secure placement
- Weight: 1.1 kg
- Max. axle load: 4.7 t
- Temperature resistant from -40°C to +49°C
- dielectric strength: 110 kV
- non-conductive according to 2014/35/EU
- Enclosure type IEC 60529
- non-slip in accordance with R11 of DIN 51130
- water-absorbing according to ISO 62 / ASTM D570
- RoHS compliant
- UV-resistant

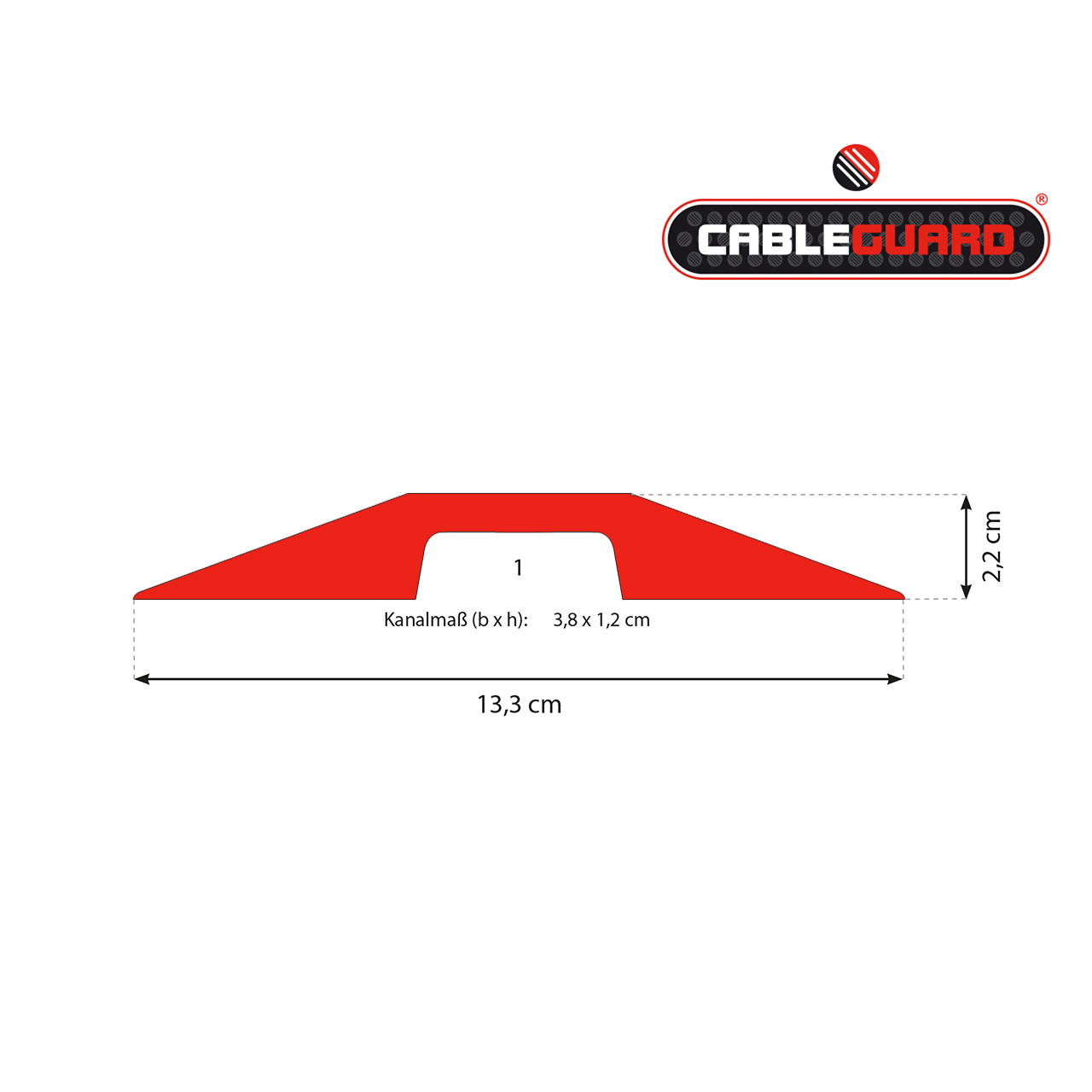

floor-mounted duct – dimensions
- Length: 765 mm
- Width: 133 mm
- Height: 22 mm
- channel width: 38 mm
- Channel height: 12 mm
: The floor channel is provided with the allbuyone logo as standard. Individual motifs are also possible on request (minimum order quantity 50 pieces) – this way you can identify your cable protectors in seconds at larger events and at the same time have an advertising effect.
Cable protectors: technical properties
- The cable protector is made of high-quality vulcanised hard polyurethane and is CE marked. This material is resistant to oil, acids, petrol, water and UV radiation.
- The product is non-conductive and is equipped with a dielectric strength of max. 110 kV in accordance with the standards 2014/35/EU (Low Voltage Directive, formerly 2006/95/EC or 73/23/EEC).
- In addition, the surface-mounted cable duct is certified according to DIN 4102 B2 for normally flammable building materials and IEC 60529 (standard for degrees of protection provided by enclosures).
- The cable protectors comply with RoHS (EU Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment).
- The surface-mounted floor trunking complies with the DIN 51130 standard, group R11 for determining the anti-slip properties of floor coverings.
- The requirements of ISO 62 / ASTM D570 (determination of water absorption in plastics) are also met, thus protecting the floor channel from swelling due to moisture.
"The easiest wayto removethe silicone residue left over from production is with a mixture of water and washing-up liquid.
Where can I use the flat cable protector?
The floor channel is primarily intended for use in the following areas:
- backstage, sanitary and catering areas at events, concerts and festivals
- in corporate or production offices
- warehouses and storage halls with forklift traffic
- around the stage, e.g. FOH tower, stage entrance, spectator area, etc.
- in areas with little vehicle traffic
color="red"Attention! Due to the relatively small contact area on the ground, the cable protector is not suitable for use in regular road traffic or in areas with regular vehicle traffic – of course it can be driven over briefly. However, the protectors can easily slip! The Cableguard Cablecover cable protector has a maximum axle load of 4.7t.
You can buy cable protectors in our shop that can withstand significantly higher loads and offer even more protection when laying cables, such as the Cableguard - Red Line 5 or the Yellow Jacket "Classic" with a load capacity of 14.8 t. These robust bridges also have several cable ducts and can be driven on by lorries and articulated lorries without any difficulty.
Cable protectors for health and safety
The Cableguard-Cablecover cable protectors can be used in a variety of ways: the on-floor cable duct offers great advantages for occupational safety in factories, studios, on construction sites, stages and at events – wherever thin cable harnesses need to be protected and at the same time the risk of people tripping over these obstacles needs to be reduced, for example:
- to protect cables from damage and crushing
- for cable routing using a cable duct measuring 38x12mm (WxH)
- to avoid tripping hazards and reduce the risk of accidents for visitors, workers and pedestrians
- for accessibility for wheelchair users at your event or at work
Alternatively, instead of the flat cable protectors, fine mesh rubber mats or rubber mats can be laid over cables to cover them.
Floor channel: Note on use

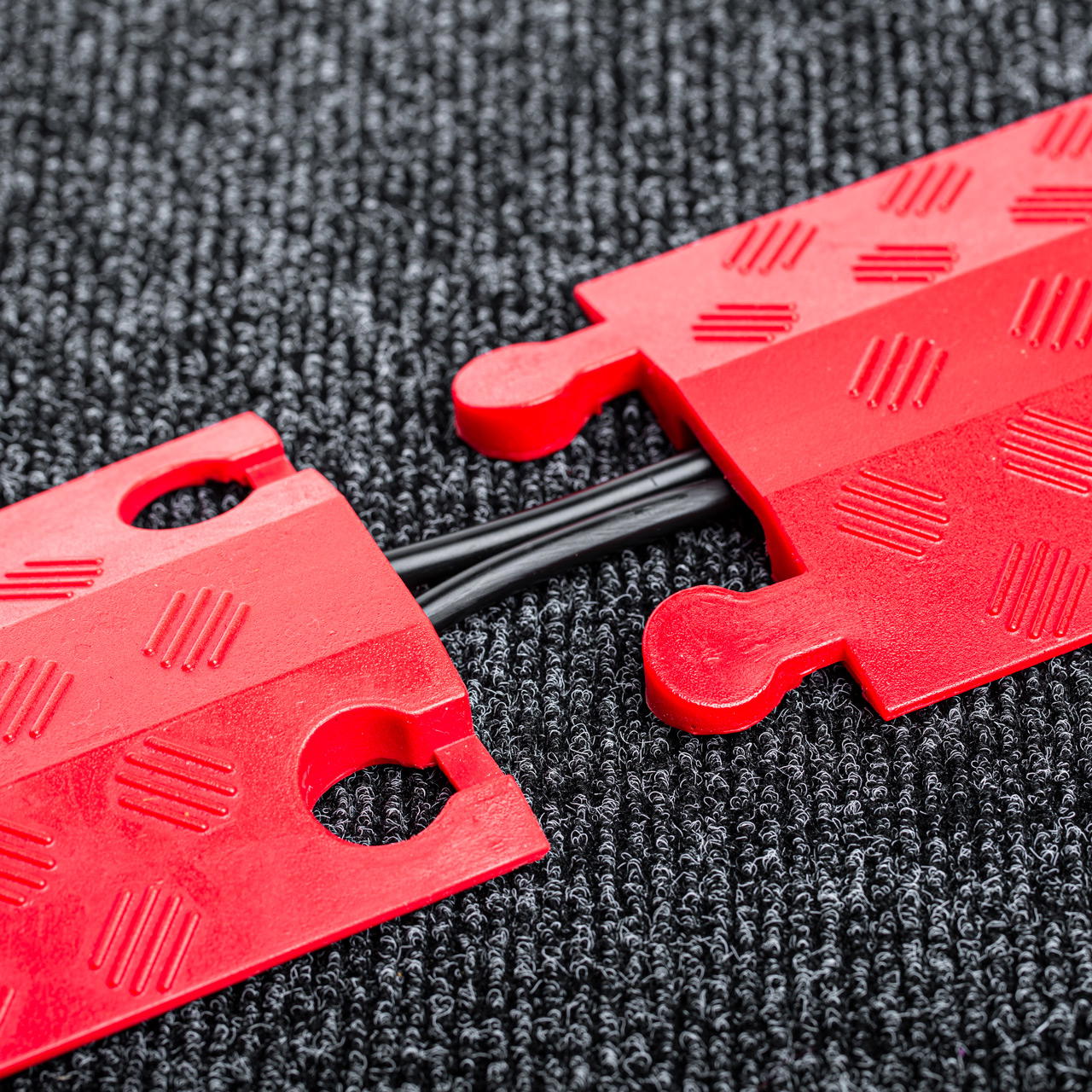

The Cableguard surface-mounted floor channel is suitable for laying on asphalt, concrete, grass, artificial grass carpet and a variety of other floor coverings – simply place it on the cables with the cable channel and they are protected from damage. The elements can be connected to each other in any length using the plugs located directly on them, allowing you to set up particularly long cable routing systems. The mobile bridge element can be laid flexibly and is easy to transport.
Caution: On uneven surfaces such as lawns or on particularly smooth floors, the cable protectors may have little grip due to their small contact area and can therefore slip easily. In this case, it is recommended to use wider cable protectors, such as the cable protector ranger from our shop.
On-floor trunking: cleaning and storage
You can easily clean the cable protectors with water – even with a high-pressure cleaner. The manufacturer advises storing the cable protectors dry and not on their sides to avoid deformation and to increase their lifespan.
Buy cable protectors flat – low prices in the allbuyone shop
You can order the Cableguard Cablecover cable protector, like many other event accessories, from allbuyone with fast delivery. The price is in EUR incl. VAT plus delivery costs. Do you have any questions about occupational safety and products for your business equipment? Personal advice is available at+49 89-122 89 06 22.
