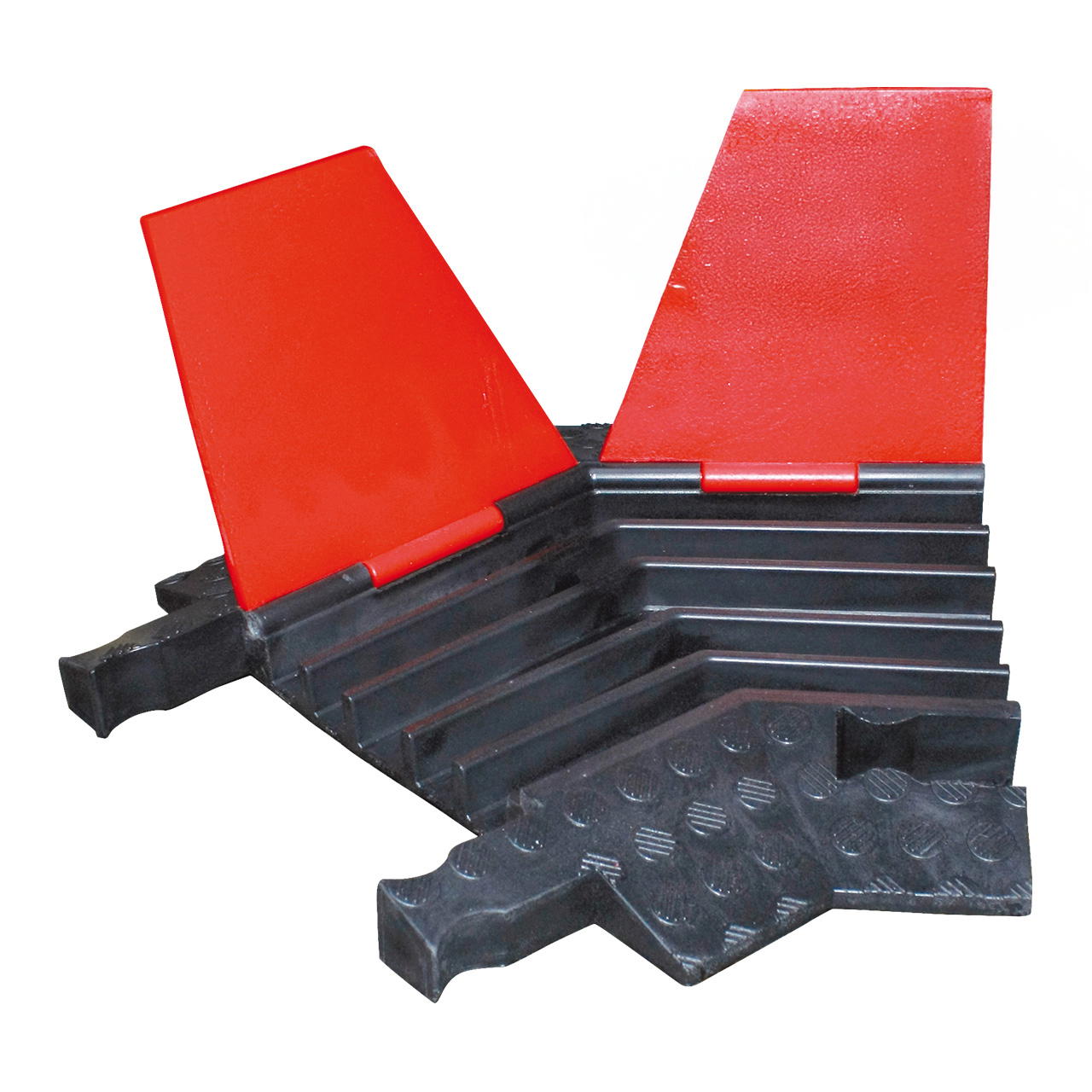

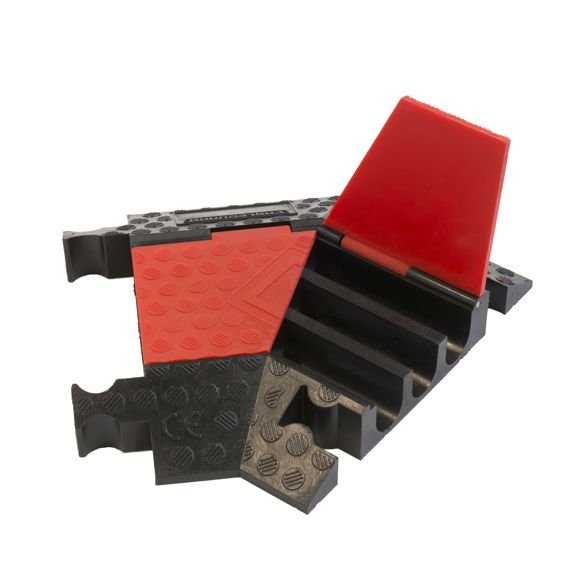

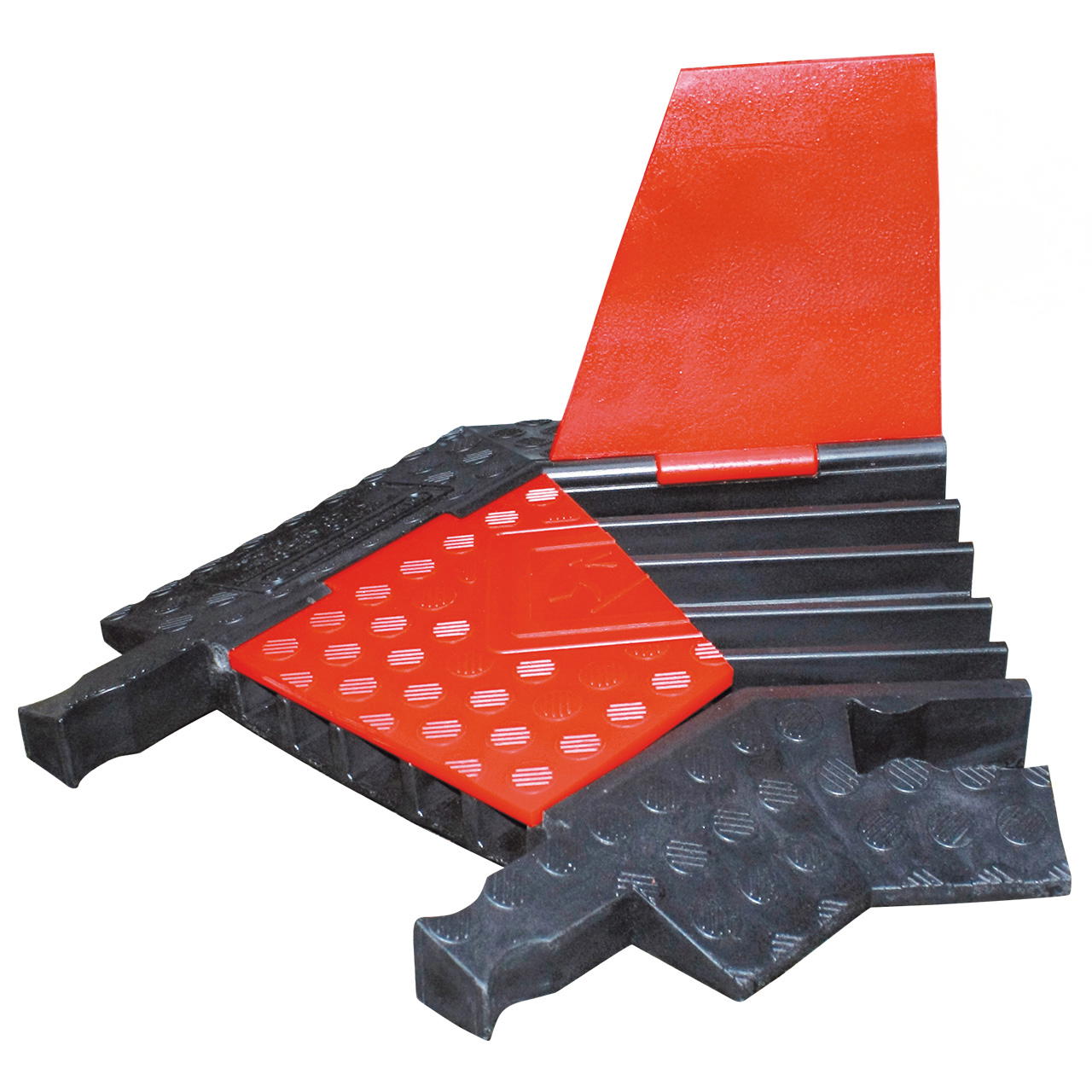

45° Left Angle Element CableGuard – Red Line 5
45° Left Angle Element CableGuard – Red Line 5
| Type: | 45° angle left |
|---|---|
| Design: | Angle Piece |
| Max. Axle Load: | 9.1 t |
| Number of Cable Channels: | 5 |
| Channel Width: | 32 mm, middle channel 39 mm |
| Channel Height: | 26 mm |
| Body Length: | 64 cm |
| Body Width: | 48.3 cm |
| Body Height: | 4.6 cm |
| Color: | Housing black / Lid red |
| Material: | Halogen-free Polyurethane |
| Dielectric Strength: | 220 kV according to 2014/35/EU |
The cable protector red line angle element is an addition to the cable protector red line 5. With the 45° angle piece, cables and wires can be laid around corners. The angle element can be purchased for a left and right curve, has 5 cable channels and a maximum axle load of 9.1 t.
45° angle element for flexible cable routing
The Red Line 45° angle piece is used to supplement the straight cable protector Red Line 5. With a maximum axle load of 9.1 t, the angle piece is particularly suitable for protecting cables from light vehicles or high pedestrian loads. Thanks to its modular design, the Red Line 45° angle piece can be used wherever the event infrastructure does not allow for cable protection to be planned in straight sections only. With the cable protector angle element, cables can be sorted and protected even when they are routed around corners and obstacles.
Red Line 45° angle element – Details
- Compatible with: Red Line 5 and Yellow Jackets Classic cable protectors.
- Variants: right, left
- Number of cable trays: 5
- dielectric strength: 220 kV according to 2014/35/EU
- max. axle load: 9.1 t
- Weight: 6.7 kg
: In combination with another Red Line angled element, this makes a complete 90° angle.
Angle element Dimensions
The total dimensions of an angle are as follows:
- total length: 64 cm
- total width: 50.2 cm
- Height: 5 cm
- channel width: 3.4 cm
- Channel height: 3.2 cm
More cable protectors from allbuyone
The 45° angle is precision-made for the Cableguard Red Line 5 cable protector. The identical connection system makes it easy to combine the yellow jacket "Classic" and Red Line cable protector systems. You can also find a wide range of straight cable protectors in different versions with different load capacities in our shop.
Further Cableguard cable protectors are available on request. You can find an overview of the range in the product catalogue below.
Buy cable protector Red Line angle left
The Red Line cable protector angle element 45° and other angle elements for cable protectors are available from allbuyone. We supply cable protectors with different load capacities, in different colours and sizes for your event. Our prices are in EUR incl. VAT, plus shipping costs. We are also happy to advise you personally on 089 - 122 89 06 22.
