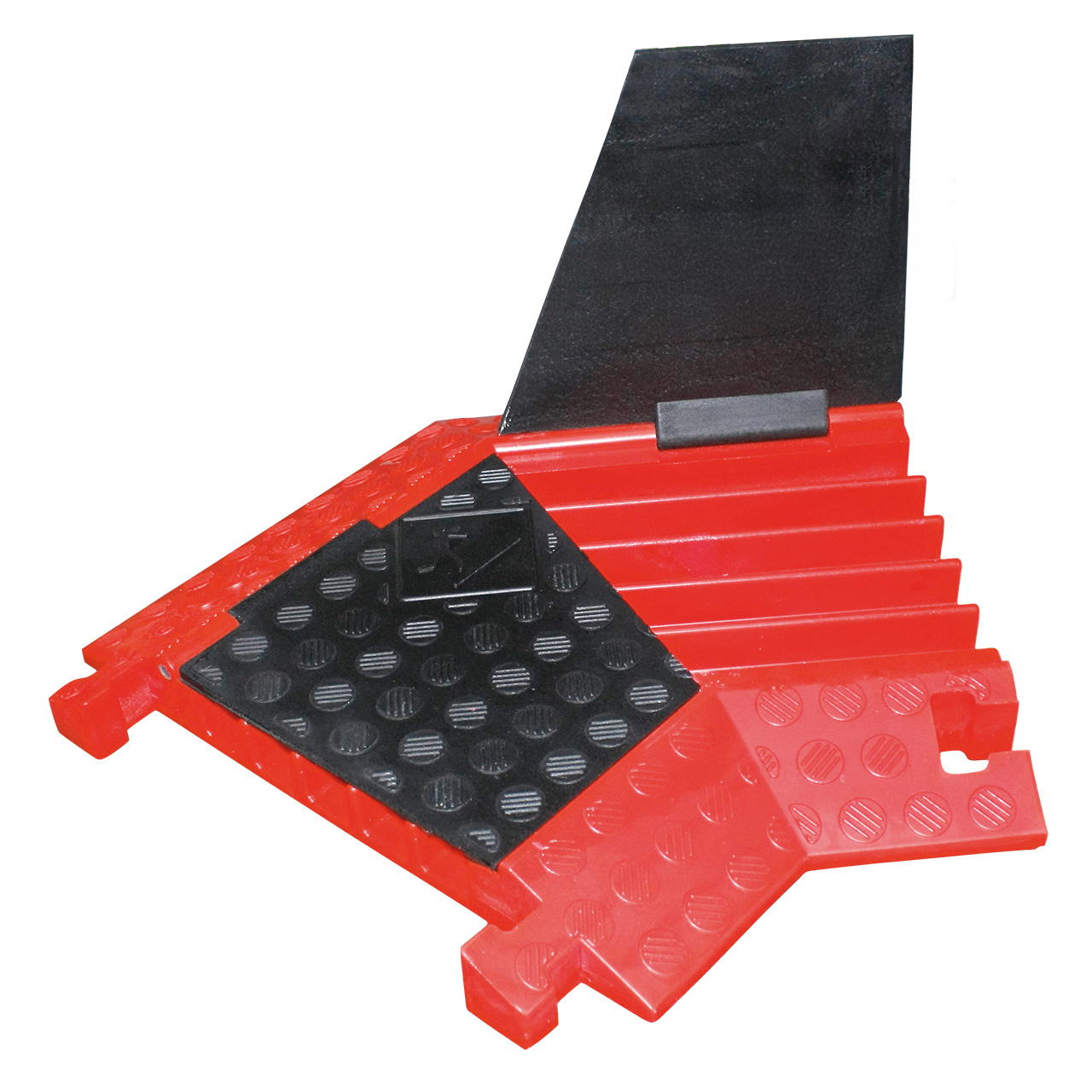

45° Left Angle Element CableGuard – Black Line 5
45° Left Angle Element CableGuard – Black Line 5
| Type: | 45° angle left |
|---|---|
| Design: | Angle Piece |
| Max. Axle Load: | 4.7 t |
| Number of Cable Channels: | 5 |
| Channel Width: | 34 mm |
| Channel Height: | 32 mm |
| Body Length: | 64 cm |
| Body Width: | 48.3 cm |
| Body Height: | 5.0 cm |
| Color: | Housing red / Lid black |
| Material: | Halogen-free Polyurethane |
| Dielectric Strength: | 110 kV according to 2014/35/EU |
The 45° angle element is compatible with the cable protector Black Line,. You can order it in the shop as a right-hand or left-hand version. The angle element has 5 cable channels and allows protected cable routing even around corners. It has proven particularly useful as cable protection at concerts, trade fairs and other events. The cable protector has a maximum axle load of 4.7 t.
45° angle element Black Line
The 45° angle element complements the straight elements of the Black Line 5 cable protector. This means that any cable route can be laid, even with a challenging event infrastructure. The five cable channels of the corner piece each measure 32 x 34 mm, and the cables are reliably protected in them even when they are curved. The cable protectors Black Line 5 have been developed for use in areas with high foot traffic and occasional vehicle traffic with up to 4.7 tonnes of axle load.
Cable protector angle element – properties
- Suitable for: cable protectors Black Line 5
- Variants: right, left
- Dimensions cable duct: 32 x 34 mm (HxW)
- Number of cable ducts: 5
- dielectric strength 110 kV according to 2014/35/EU
- Max. axle load: 4.7 t
: The direction "right" or "left" refers to the connectors pointing to the right or left. Combining two of these cable protectors with the same bend results in a right angle of 90°.
Angle element Dimensions
The dimensions of a single angle are as follows:
- total length: 64 cm
- total width: 48.3 cm
- Height in total: 5 cm
- channel width: 3.4 cm
- Channel height: 3.2 cm
More cable protectors from allbuyone
The 45° cable protector angle element is compatible with the cable protector Black Line 5. In addition, we offer a wide range of other cable protectors as drive-over and cable protection.
You can find an overview of further Cableguard cable protectors in the product catalogue further down on this page. These are available on request!
Buy cable protector angle element for cable protector Black Line
The 45° angle element for the Black Line 5 cable protector and other angle elements and cable protectors can be bought cheaply from allbuyone. We offer cable protectors for events and construction sites in various designs. We are also happy to advise you personally on 089 - 122 89 06 22.
