cable protector angle element | left | Cable protector Ranger angle piece | 5 channels | 7 t | Cable protector angle 90° | 74 x 29 x 56 cm LxWxH | yellow black | anti-slip surface | cable protector for articulated lorries, lorries, cars | PVC granules for indoor and outdoor

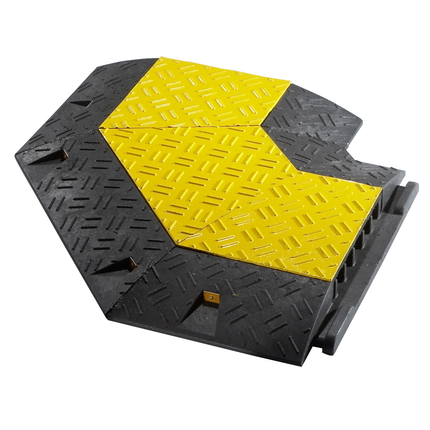

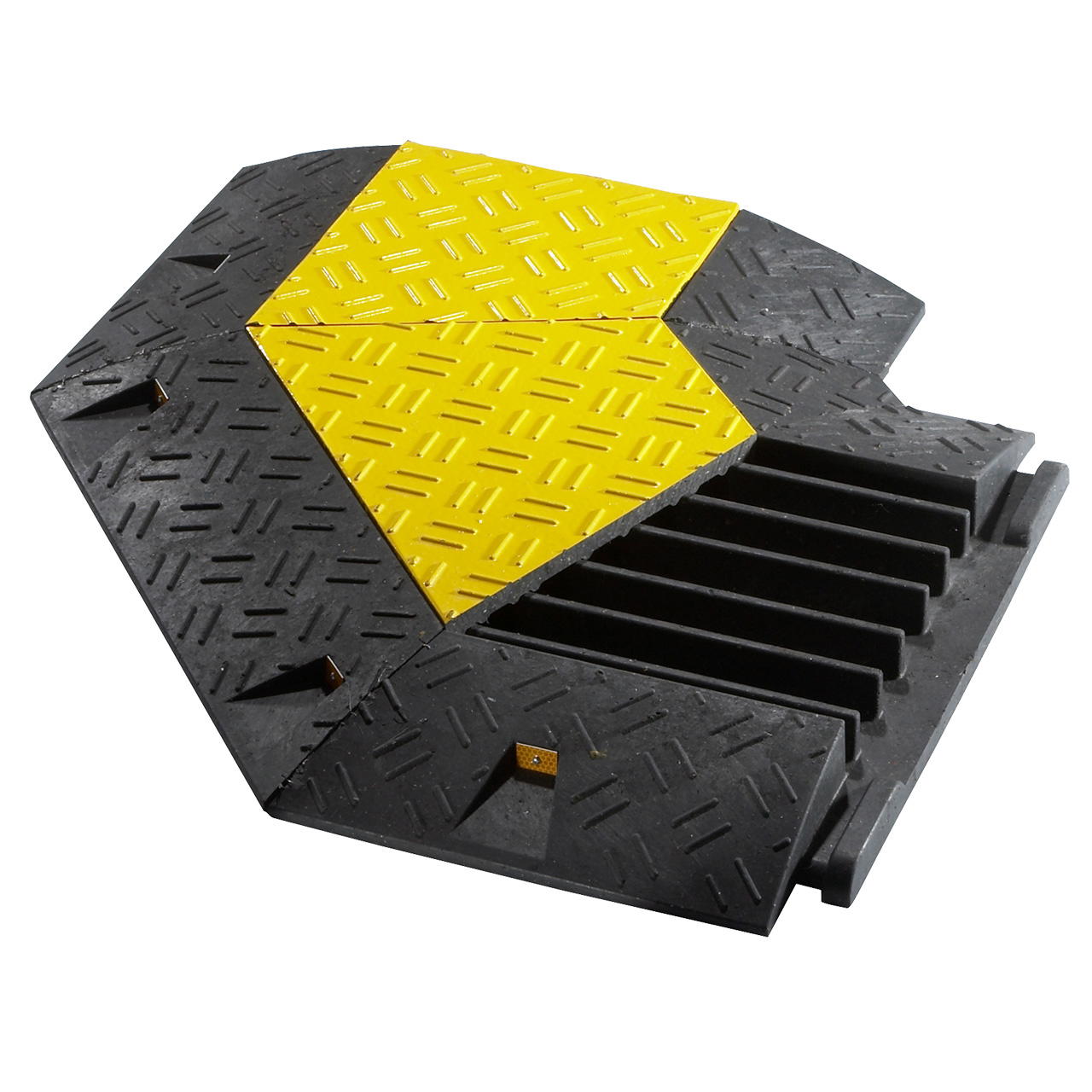

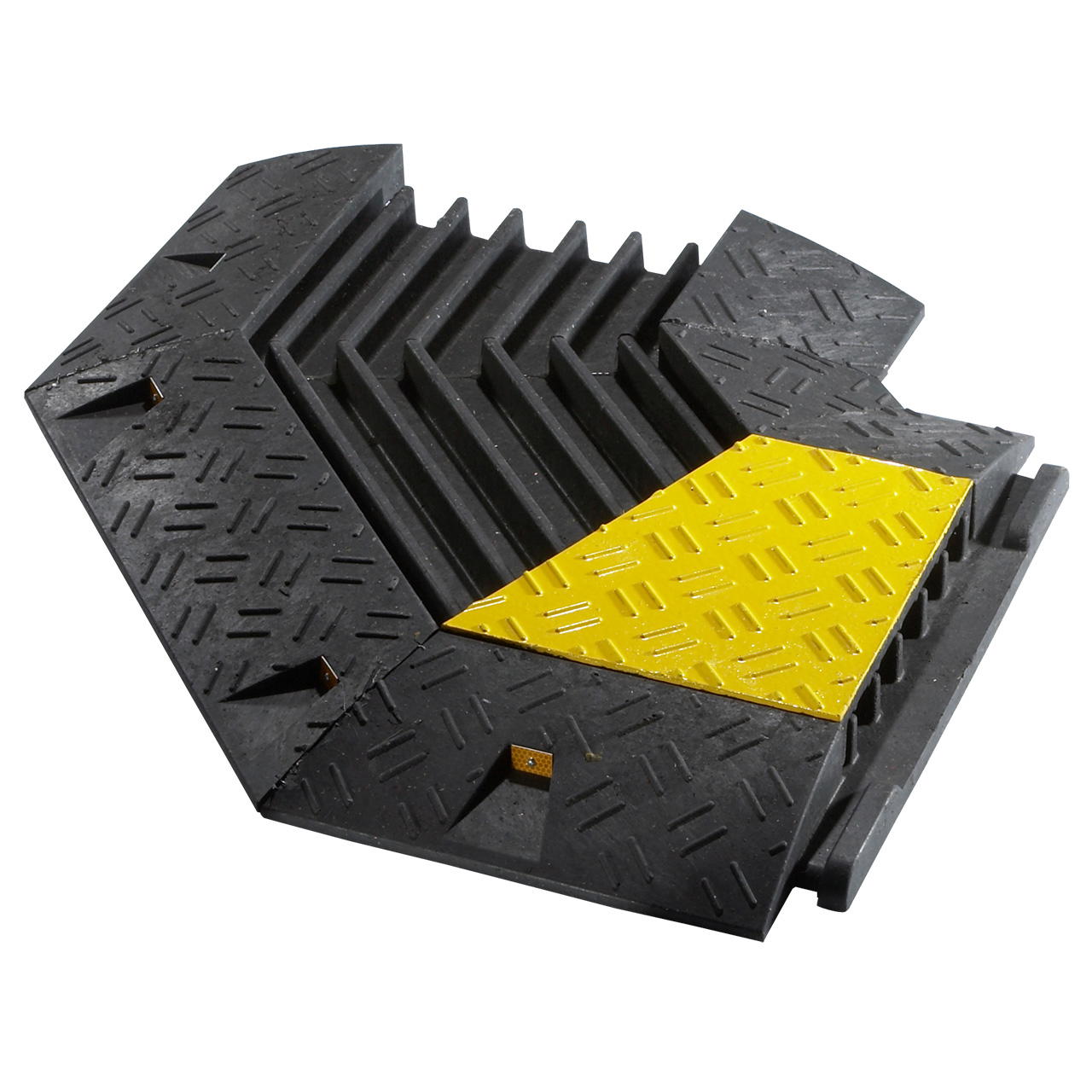

Cable protector ranger angle element 90°
Cable protector ranger angle element 90°
| Version: | left |
|---|---|
| Type: | 90° element |
| Load Capacity: | 7 t on 630 x 330 mm |
| No. of Slots: | 5 |
| Total Length: | 740 mm |
| Total Width: | 740 mm |
| Width of Lid: | 290 mm |
| Height of Lid: | 50 mm |
| Weight: | 24 kg |
| Colour: | Base black / lid yellow |
| Material: | PVC |
| Information: | contains di (ethylhexyl)-phthalate (DEHP) |
The 90° angle element with a maximum load capacity of 7 tonnes on an area of 630 x 330 mm is robust and weather-resistant. The cable ramp has a non-slip surface with a yellow protective flap and bevelled side edges. The angle has proven itself particularly in the event sector, on construction sites and for public festivals, Christmas markets and much more as overrun protection for cars, trucks, semi-trailers, forklifts and much more.
90° angle element for cable protector Ranger
The angle cable protector is the matching 90° angle element for the cable protector Ranger. You can order the element as an angle to the right or to the left. The durable floor channel is used in event supplies and on construction sites as a cable ramp. The cable channel is made of PVC, is oil, acid and petrol resistant and protects cables from weather and damage.
The cable protector angle element is very resilient with a load capacity of up to approx. 7 t on an area of 63 x 33 cm and can therefore be driven over by trucks, forklifts and other vehicles. The element has a non-slip surface and a bevelled side edge with reflectors.

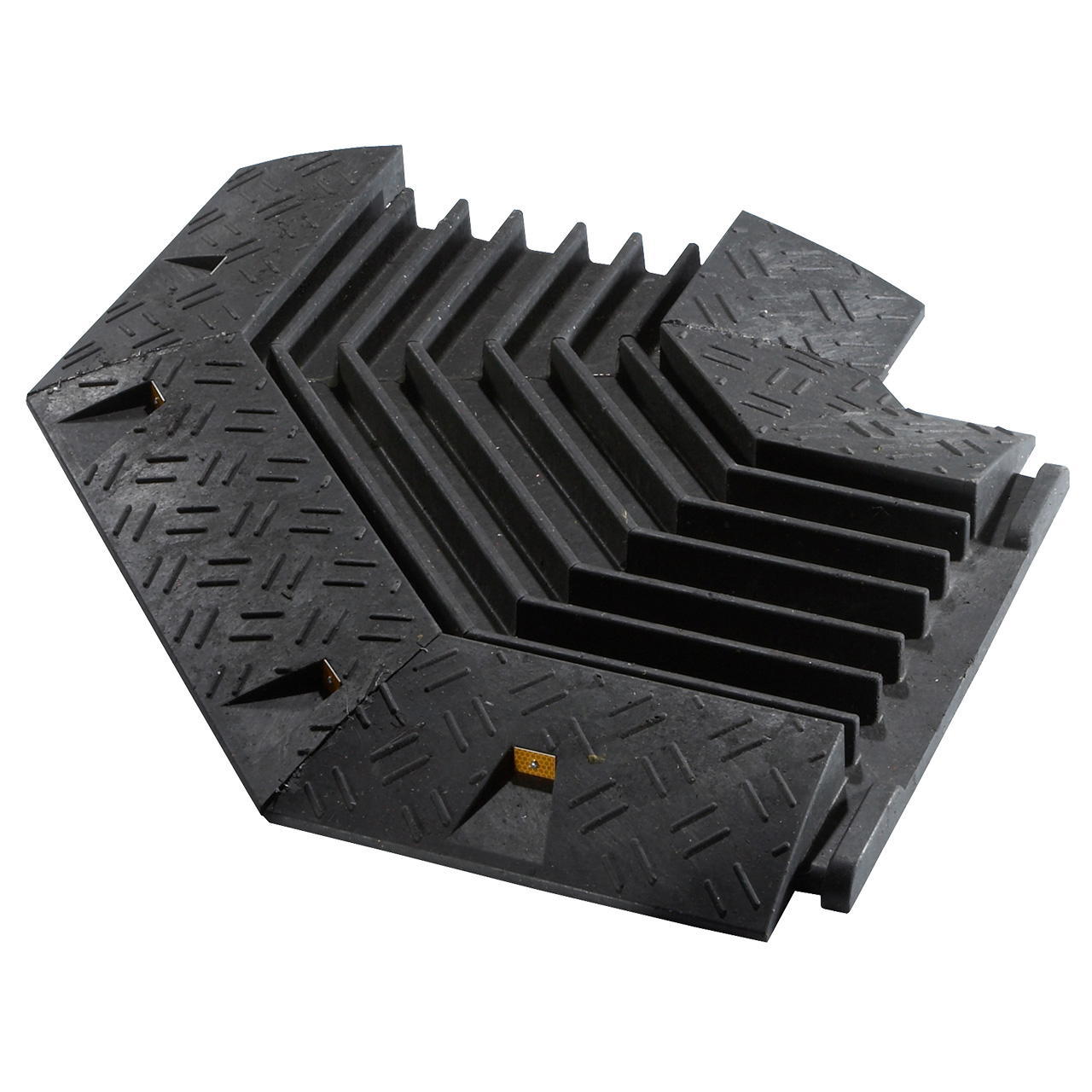

The angle element has 5 cable channels and a yellow protective flap. This allows cables for mixing desks, microphones, etc. to be neatly routed from the power distributor to the front stage and other areas – even around corners!
The cable protector ranger angle element 90° is made of recycled granulate (PVC) and can therefore be offered at a significantly lower price. Please note: The raw material may have a slightly used appearance (colour differences and wear caused by the manufacturing process).
Angle cable bridge features
The angle element has the following features:
- Colour: yellow (protective flap), black (cable duct)
- Material: PVC granulate
- Number of channels: 5
- Variants: right, left
- Weight: 24 kg
- Load capacity up to approx. 7 t on 63 x 33 cm
- Weatherproof
- Resistant to oil, petrol and acids
- Suitable for indoor and outdoor use
Angle element - dimensions
An angle cable bridge has the following overall dimensions:
- Total length: 74 cm
- Total width: 74 cm
- Total height: 6 cm
- Height of cover: 5 cm
- Lid width: 29 cm
- Channel diameter: approx. 3.5 cm, middle channel approx. 4.0 cm
- Channel height: approx. 3.5 cm
The angle with bevelled side edge is compatible with the cable protector ranger. Together, the two elements form a modular system that can be expanded as required.
Area of application: Cable ramp for trade fairs, events and construction sites
The angle element is used together with the straight Ranger floor channel to protect hoses, cables and other lines from weather, crushing and other damage. At events, trade fairs and construction sites, cable laying often ends in annoying cable clutter. Countless cables for microphones, mixing desks, musical instruments and spotlights and other lighting, as well as for fog machines and electronic devices, are often laid over long distances from the power distributor to their destination.
Orderly cable routing from the power distributor to the front stage
Unprotected cable laying is dangerous; in the best case, it "only" leads to clutter, in the worst case to damage to the cable and personal injury or malfunction of the connected devices. High-quality angle elements such as the cable duct from allbuyone offer protection here: the angle cable bridge makes it very easy to route cables neatly. The flexible modular design allows cables to be laid at a 90° angle.
The ultra-resistant cable tunnel is suitable for both indoor and outdoor use.
The angled cable bridge is particularly popular in the following areas:
- Trade fairs
- Open-air festivals
- Sports events
- Construction
- Town square festivals
- and much more
The overrun protection has a maximum load capacity of approx. 7 tonnes on an area of 63 x 33 cm and can therefore be driven over by trucks, cars, semi-trailers and forklifts without any problems. The flattened side edges allow pedestrians to easily cross the cable duct and it is also suitable for wheelchair users. Thanks to the ribbed, non-slip top surface, people crossing the duct are protected from slipping. The practical warning colours of yellow and black, together with the side reflectors, increase the visibility of the cable ducts.
Installation
The modular design allows a long cable duct to be formed in a time-saving manner; an angle piece is inserted around corners. The individual elements are connected to each other using a plug-in system (like a jigsaw puzzle): one end is placed over the next, and the connecting rail clicks into the corresponding recess. Close the protective cover after laying the cables. With a weight of 24 kg, the angle is stable enough and does not need to be additionally secured.
Note: These specifications and those relating to the maximum load capacity of the angle element refer to use on level and solid ground. When used on soft and sloping surfaces, the load capacity of the angle cable bridge may be reduced.
Cleaning and storage
The angle bracket is made of durable PVC granulate and is extremely easy to clean. Any dirt can be removed with water. Please store in a dry place away from direct sunlight. To avoid damaging the connecting pins, the cable ducts should not be stored upright.
