Cable protectors – safe overrun protection for cables and wires

Cable protectors offer safety and flexible solutions for laying loose cables, hoses and other lines on construction sites and at events in an orderly manner above the floor, both indoors and outdoors. Our range includes high-quality cable protectors for permanent use and inexpensive standard models for temporary use.

Each overrun protection offers differences in terms of load capacity and dimensions ( length x width x height) as well as the number and size of individual cable channels. We offer narrow 1, 2 or 3-channel cable protectors as well as slightly wider models with 4 and 5 channels. The cable protector halfround offers 6 channels. Are you looking for hose bridges? Then you will also find an inexpensive rubber bridge with 2 channels as well as other heavy-duty cable protectors that are also suitable as hose bridges for thick hoses (A and C hoses). The range is rounded off by a modular cable protector system (Red Floor), which makes it possible to form a single large, flat surface using individual modules.

Buy cable protectors from allbuyone: Our shop offers you a very large range, fast shipping, good prices and expert advice.

In addition to cable protectors, we also have cable mats in our range.

Which cable protectors do you buy from allbuyone? Various manufacturers are available

Whether for temporary use at events or for the requirements of permanent industrial use – for example on construction sites or company premises – the selection of cable protectors in our shop is impressive. We carry different cable protector manufacturers in our range for you. Each cable protector is suitable for indoor and outdoor use. You can order the following cable protectors from us from stock with fast delivery:

Ranger cable protectors – good quality, low price, elements: straight, halfround and angled
Adam Hall Defender cable protectors – wide range of different cable channels, high-quality drive-over bridges, elements: straight, 45° angle and wheelchair ramp on request, made in Germany
Adam Hall accessories – end pieces and connectors can be ordered separately as accessories on request
Cableguard cable protectors – high-quality cable channels for temporary use and professional cable protection for continuous operation. Elements: straight, halfround, angle, wheelchair ramp and modular system for laying large areas
Yellow Jacket cable protector – high-quality 5-channel cable and hose bridge, straight element, compatible with Cableguard Red Line 5
Basiccable protector – a solid rubber cable protector suitable for outdoor use with a very good price-performance ratio
GRIP hose bridge, solid rubber, – inexpensive bridge with 2 cable channels for cables and hoses up to 7 cm in diameter
Additional accessories: Distributors or centre elements, special wheelchair ramps, angle pieces, Y-splits and X-crossings are available on request, depending on the manufacturer.

Do you prefer a specific colour? Ranger cable protectors are available in yellow, black and black. Yellow Jacket cable protectors are yellow and black, while the Defender models are either completely black (Mini) or mainly yellow and black,. The Midi model , a cable protector with 5 cable ducts of equal size, , is also available in blue on request,. Cableguard cable protectors are red and black,, while the single-channel model "Cablecover" is also available in plain black and plain red,.

To give you a quick overview of the complete range of cable protectors, please refer to the complete overview of cable protectors.

Number of cable channels: How many channels does each cable protector / hose bridge offer?

The number of cable channels is an important planning basis for orderly cable routing. This is because cables and hoses laid loosely on the floor pose a considerable risk to people and equipment. Cable protectors protect cables and lines from abrasion, pulling and crushing as well as weather and chemical influences.

You can purchase the following cable protectors in our shop:

cable protector:	Number of cable ducts:
Adam Hall Defender Mini	3 channels – 1 channel 3.5 x 3.5 cm, 2 channels 3.5 x 3.0 cm (width x height)
Adam Hall Defender Midi	5 channels – each channel 3.4 x 3.6 cm (width x height)
Adam Hall Defender 3	3 channels – 5.2 x 4.9 cm, 4.5 x 5.0 cm, 5.6 x 4.9 cm (width x height)
Adam Hall Defender XXL	5 channels – channels 1 & 5: 6.1 x 5.9 cm, channels 2 & 4: 6.2 x 6.5 cm, channel 3: 6.0 x 6.3 cm
Adam Hall Defender Ultra L	4 channels – channels 1 & 4: 3.3 x 5.0 cm, channels 2 & 3: 12.0 x 11.3 cm (width x height)

Cableguard Cable Cover Office	1 channel – 3.8 x 1.2 cm (width x height)
Cableguard Cable Cover Event	1 channel – 4.5 x 2.0 cm (width x height)
Cableguard Black Line 1/3	1 or 3 channels – 6.5 x 1.9 cm (width x height) per channel
Cableguard Black Line 5	5 channels – 3.4 x 3.2 cm (width x height) per channel
Cableguard Red Line 5	5 channels – middle channel 3.9 x 3.1 cm, remaining 4 channels 3.2 x 3.1 cm (width x height)

cable protector ranger	5 channels – middle channel 4.0 x 3.5 cm, remaining 4 channels 3.5 x 3.5 cm (width x height)

Cable protector Ranger halfround	6 channels – two channels each measuring 5.0 x 5.0 cm; 3.0 x 3.5 cm and 1.3 x 1.3 cm

Basic cable protector	3 channels – each channel 5.0 x 4.5 cm (width x height)
	5 channels – each channel 3.4 x 3.2 cm (width x height)

Yellow Jacket	5 channels – middle channel 4.19 x 2.54 cm, remaining 4 channels 3.49 x 2.54 cm (width x height)

rubber hose bridge	2 channels – each 8.5 x 7.0 cm (width x height)

Load capacity: How many tonnes can cable protectors withstand?

Whether it's heavy foot traffic at a festival or heavy goods vehicles such as trucks and forklifts, cables laid loosely on the ground can quickly become damaged or develop into trip hazards. A cable protector protects your cables from people and vehicles. Below you will find an overview of the load capacity of each individual cable protector. Please note: The load capacity of cable protectors is specified differently by each manufacturer and usually refers to a specific area or axle load. Please refer to the respective product text for detailed information.

cable protector:	Load capacity in tonnes:
Adam Hall Defender Midi	5 tonnes on 20 x 20 cm
Adam Hall Defender Mini	2 tonnes on 20 x 20 cm
Adam Hall Defender XXL	5 tonnes on 20 x 20 cm
Adam Hall Defender 3	5 tonnes on 20 x 20 cm

Cableguard Cable Cover Office	Max. axle load 4.7 tonnes
Cableguard Cable Cover Event	Max. axle load 4.7 tonnes
Cableguard Black Line 1/3	Max. axle load 4.7 tonnes
Cableguard Black Line 5	Max. axle load 4.7 tonnes
Cableguard Red Line 5	Max. axle load 9.1 tonnes

cable protector ranger	7 tonnes on 63.0 x 33.0 cm
Cable protector Ranger halfround	7 tonnes on 63.0 x 33.0 cm

Basic cable protector	Max. axle load 5 tonnes

Yellow Jacket	Max. axle load 14.78 tonnes

rubber hose bridge	7 tonnes

Good to know: The respective loads apply when the cable protectors are laid on a level, solid surface. If a cable protector is laid on sloping or soft ground, the load capacity is reduced. Temperatures also play an important role in the load-bearing capacity (mechanical hardness of the material) of a cable protector. You can find more information on this in the next paragraph.

The material of the cable protectors: PVC, rubber and polyurethane

Our selection offers you cable protectors made of different materials:

Ranger cable protectors: PVC granulate
Basic cable protector and hose bridge: made of rubber (solid rubber)
All other cable protectors: made of polyurethane

The brand-name products among the cable protectors are made of polyurethane. Polyurethane is a well-insulating, robust thermoplastic (halogen- and plasticiser-free). It is resistant to oil, solvents, acids and petrol and impresses with its enormous material hardness of 88 Shore ± 4 A. The SHORE hardness test is a method for determining the mechanical resistance (penetration depth) of a plastic/elastomer in accordance with the relevant DIN ISO standard (7619-1:2012-02, 7619-2:2012-02) at 23°C. The scale ranges from 0 Shore (2.5 mm penetration depth) to 100 Shore (0 mm penetration depth). The higher the number of the product, the harder the material.
G ood to know for the use of cable protectors outdoors: Overrun protection made of polyurethane and PVC is temperature-resistant in a range from approx. -30°C to +60°C and offers full mechanical resistance. If it is colder, the material becomes brittle; if it is hotter, PVC and polyurethane can become porous and brittle.

Ranger: PVC cable protectors – safe and affordable

In addition to the brand-name products from Defender, Yellow Jacket and Cableguard, we also offer low-priced PVC cable protectors. They also offer the best overrun protection and are highly resilient. But why are Ranger cable protectors so inexpensive? The PVC cable ducts are made from recycled PVC granulate and can therefore be offered at such a low price. However, please note before ordering: The material often gives the impression that the cable protectors are already used when delivered. Scratches and manufacturing-related colour changes are not uncommon with inexpensive PVC cable protectors.

Safety thanks to ribbed surface and non-slip underside

The slip-resistant, ribbed surfaces of the cable protectors are safe to drive over even in the rain and are also non-slip when walked on. Depending on the model, the undersides of the cable protectors are also equipped with a special profile and lie non-slip on the floor . Tip: On particularly smooth surfaces, additional rubber mats can be laid under the cable protectors. The mats provide additional support for the protectors.

By the way: The colour of the cable protectors (yellow and red) also offers safety. The high warning effect of the colour is easily visible even from a distance in poor lighting conditions.
Suitable for wheelchairs thanks to flat sides: With the exception of the rubber hose bridge, all cable protectors have continuous flat sides and a suitable height – making them suitable for wheelchairs.

Laying cable protectors: quick and safe

The cable protectors from Defender, Cableguard and Yellow Jacket can be connected securely and durably. Connection pins in the tongue and groove system enable quick installation. For particularly difficult-to-lay surfaces , the Defender 3 cable protector offers an additional system for ground anchoring. The connection pins are equipped with holes and can be optionally secured to the ground with ground anchors.

Ranger cable protectors can be laid using connecting rails on the cross edge. The elements are securely connected to each other by simply placing the end of one cable protector over the end of the next cable channel to be connected. The connecting rail then snaps into the corresponding recess.

Customised cable protectors with logo

Have your cable protectors individually marked and avoid confusion on the construction site. A brand or company logo can be applied by laser engraving at an additional cost.

Special offer for our customers: When ordering 30 or more Defender cable protectors of one model from, you will receive a customised logo free of charge. We will cover the cost!

Cable protectors: Use in road traffic

Despite their high load capacity , not all cable protectors are suitable for use in public road traffic. Always observe the applicable country-specific road traffic regulations. The installation of cable ducts in public traffic requires a permit and must also be indicated by warning signs.

According to our research , there are no legal regulations for traffic on private property . The installation of cable protectors to protect cables and hoses and as trip protection is therefore possible anywhere on private property. The height of a cable protector is important for car traffic. DEKRA recommends a clearance of 11 cm. This is to ensure that even vehicles with low ground clearance approved in accordance with the German Road Traffic Licensing Regulations (StVZO) can drive over the cable ducts without damage.

Products in detail: The range

Whether you need high-quality cable ducts for permanent use or inexpensive cable protectors for temporary events, our shop has the right cable protectors for you. By the way: all cable protectors comply with fire protection class B2. B1 cable protectors (flame retardant) are available on request.

Cable protectors Ranger – affordable PVC cable protection

Ranger cable protectors are among the most popular cable protectors, offering excellent value for money. A solid overrun protection for cables, which is often used at seasonal events and on construction sites as overrun protection for loose cables, wires and thinner hoses. The Ranger cable protector can bear loads of up to 7 t. The following models are available: straight element, halfround and angle.

Ranger cable protector straight element Dimensions and properties:

Load capacity: 7 tonnes on a 630 x 330 mm surface
Material: PVC granulate
Number of channels: 5
Height: 60 mm
Width: 600 mm
Length: 800 mm
Channel dimensions: 35 x 40 mm
Colour: black (base), yellow (cover)
Weight: 24 kg
Customised logos available on request

Cable protector Ranger angle element Dimensions and features:

The cable protector Ranger can be supplemented with an angle element that helps to prevent cable clutter. The robust 90° angle allows cables to be completely protected and laid a ly around corners, bypassing public areas and (escape) routes. This reduces trip hazards and increases safety at your event.

Load capacity: 7 t on a 630 x 330 mm surface
Material: PVC granulate
Number of channels: 5
Height: 600 mm
Width (total): 740 mm
Width (connection side): 600 mm
Length: 740 mm
Channel dimensions: 35 x 40 mm
Weight: 24 kg

cable protector halfround

The cable protector halfround is an inexpensive halfround floor-mounted cable protector and is primarily suitable for temporary use. The halfround cable protector serves as a cable duct (6 channels) and can be used to prevent accidents and at the same time to calm traffic.

2 cable trays 13 mm x 13 mm
2 cable trays 35 mm x 35 mm
2 cable trays 40 mm x 50 mm

Features of the cable protector halfround

Load capacity: 7 t on 630 x 330 mm surface area
Material: PVC granulate
Number of channels: 6
Height: 80 mm
Width: 600 mm
Length: 800 mm
Colour: black
Weight: 29 kg

Adam Hall Defender cable protectors

Our range includes a wide selection of different Defender models that are suitable for a wide variety of applications. The following cable protectors are available in our shop:

Adam Hall Defender Midi cable protector

The Defender Midi cable protector ( ) is a cable duct with a load capacity of up to 5 tonnes. With this cable protector, anything is possible: The all-round cable protector is particularly popular for event applications, where it can be used flexibly. It offers 5 channels of equal size ( ) for routing cables, wires and thin hoses. With a weight of only 13 kg, these cable protectors can be laid quickly and easily.

Features of the Defender Midi cable protector

Load capacity: 5 t on an area of 20 x 20 cm
Material: thermoplastic polyurethane (TPU)
Number of channels: 5
Height: 5.2 cm
Width: 54.2 cm
Length: 89.0 cm
Channel dimensions: 3.4 x 3.6 cm
Weight: approx. 13 kg
Temperature resistant: -30°C to +60°C
Hardness range: 88 Shore ± 4
Colour: black (housing), yellow (cover)
Non-conductive in accordance with 2006/95/EC

Adam Hall Defender Mini cable protector

The Defender Mini cable protectors weigh less than 5 kg and are extremely lightweight and handy cable protectors that meet all requirements for robust overrun protection, but can only be driven over by vehicles weighing up to 2 tonnes. The Defender Mini is used for light vehicle traffic in event applications. The high-quality floor duct can also be used as a cable duct in office applications .

Features of the Defender Mini cable protector

Load capacity: 2 tonnes on an area of 20 x 20 cm
Material: thermoplastic polyurethane (TPU)
Number of channels: 3
Height: 4.8 cm
Width: 29.0 cm
Length: 100.0 cm
Channel dimensions:
Channels 1 and 3: 3.5 x 3.5 cm
Channel 2: 3.0 x 3.5 cm
Weight: approx. 5 kg
Temperature resistant: -30°C to +60°C
Hardness range: 88 Shore ± 4
Colour: black (housing), yellow (cover) or black (cover)
Non-conductive in accordance with 2006/95/EC

Adam Hall Defender 3 cable protector

The Defender 3 cable protector is a heavy-duty overrun protection device with a load capacity of up to 5 tonnes, which can be used safely at events. The all-round cable protector is suitable for heavy-duty and road traffic. The Defender 3 can also be screwed into the ground.

Features of the Defender 3 cable protector

Load capacity: 5 tonnes on an area of 20 x 20 cm
Material: thermoplastic polyurethane (TPU)
Number of channels: 3
Height: 7.3 cm
Width: 60.0 cm
Length: 100.0 cm
Channel dimensions:
Channel 1: 5.2 x 4.9 cm
Channel 2: 4.5 x 5.0 cm
Channel 3: 5.6 x 4.9 cm
Weight: approx. 23 kg
Temperature resistant: -30°C to +60°C
Hardness range: 88 Shore ± 4
Colour: black (housing), yellow (cover)
Non-conductive in accordance with 2006/95/EC

Adam Hall Defender XXL cable protector

The Defender XXL cable protectors are extremely durable and, with their 5 large cable channels, ideal for multi-core cables and other thick cables used at events. Order the XXL overrun protection for permanent use with heavy-duty traffic or for use in road traffic.

Features of the Defender XXL cable protector

Load capacity: 5 tonnes on an area of 20 x 20 cm
Material: thermoplastic polyurethane (TPU)
Number of channels: 5
Height: 8.7 cm
Width: 69.6 cm
Length: 70.0 cm
Channel dimensions:
Channels 1 and 5: 6.1 x 5.9 cm
Channels 2 and 4: 6.2 x 6.5 cm
Channel 3: 6.0 x 6.3 cm
Weight: approx. 21 kg
Temperature resistant: -30°C to +60°C
Hardness range: 88 Shore ± 4
Colour: black (housing), yellow (cover)
Non-conductive in accordance with 2006/95/EC

Adam Hall Defender Ultra L cable protector

The Defender Ultra L cable protector is designed for high loads and can accommodate almost any cable and hose. Two of the four cable channels are extra large and offer space for plugs and thick hoses (A-hose up to 11 cm diameter) – a type of cable commonly used at events. The Defender Ultra L is also suitable for road and heavy-duty traffic.

Features of the Defender Ultra L cable protector

Load capacity: 5 tonnes on an area of 20 x 20 cm
Material: thermoplastic polyurethane (TPU)
Number of channels: 4
Height: 13.9 cm
Width: 78.3 cm
Length: 70.0 cm
Channel dimensions:
Channels 1 and 4: 3.3 cm x 5.0 cm
Channels 2 and 3: 12.0 cm x 11.3 cm
Weight: approx. 30 kg
Temperature resistant: -30°C to +60°C
Hardness range: 88 Shore ± 4
Colour: black (housing), yellow (cover)
Non-conductive in accordance with 2006/95/EC

Adam Hall Defender cable protectors Accessories

The respective Defender products can be supplemented with the following accessories:

Defender Midi:
- Defender Midi C (45° angle element)
- Defender Midi ER (end piece)
- Defender Midi SET (wheelchair ramp set)
defender mini:
- Mini ER F and Mini ER M (end piece for secure and tidy closure of the cable protector)
- Mini R and Mini L (45° angle element, right or left)
- Yellow and black cover
Defender 3:
- Defender 3 CP (connecting pin)
- Defender 3 ER (end piece)
- Defender 3 C (45° angle element)
defender xxl:
- Defender XXL Con (two connecting pieces)
- Defender XXL ER (end piece)
Defender Ultra:
- Defender XXL CAP Y (yellow cap for XXL and Ultra L)

Cableguard cable protectors

Cableguards are high-quality cable protectors in various designs. Whether you need 1 cable channel or 5 channels, the cable protectors are available in black and red in many different versions.
You can find the following products in our allbuyone shop:

cable protector black line

Cableguard cable protectors are high-quality cable ducts. The Black Line models are designed for professional use at events. They are lightweight for quick installation . The Black Line cable protectors are available in two versions: one with 5 channels and one as a particularly flat version with a choice of 1, 2 or 3 cable channels – both can be driven over with a maximum axle load of 4.7 t.

The cable protector Black Line with 5 channels has the following features:

Max. axle load: 4.7 tonnes
Material: PU
Number of channels: 5
Height: 50 mm
Width: 445 mm
Length: 910 mm
Channel dimensions: 34 x 32 mm
Weight: 10 kg
Dielectric strength: 110 kV, non-conductive in accordance with 2006/95/EC73/23/EEC, IEC 60529
Slip resistance: R11 according to DIN 51130
Colour: red (lower part), black (cover)
Compatible with Yellow Jackets cable protectors "Bumble Bee"

Cable protector Black Line – other versions

On request, the Black Line cable protector is also available in the following versions with different numbers of channels and dimensions:

BL1-19 (1 cable duct 6.5 x 1.9 cm)
BL3-19 (3 cable ducts, each 6.5 x 1.9 cm)
BL5-28-EP (end piece set)
BL5-28-LT (45° element on the left)
BL5-28-RT (45° element on the right)
BL5-28-X (X-junction)
BL5-28-Y (Y-splitter)

The lightweight version of the Black Line cable ramp is available in three designs, with 1 cable duct (BL 1) or three ducts (BL 3). The cable duct, which is very popular as a floor duct, has the following features:

Max. axle load: 4.7 t
Number of channels: 1 or 3
Height: 35 mm
Width: 305 mm (BL1), 443 mm (BL3)
Length: 910 mm
Channel dimensions: 65 x 19 mm
Weight: 5.4 kg (BL1), 9.1 kg (BL3)

The lightweight version of the Black Line floor duct is primarily designed for installation in spectator areas, on pavements and in pedestrian zones, as well as a floor duct for office use. The flat cable ramp allows easy crossing, reduces trip hazards and is very wheelchair-friendly. Forklift trucks and other vehicles must cross the mobile ramp at walking speed.

cable protector red line

The cable protectors Red Line are extremely resilient and, and are characterised by their high quality – they are designed for permanent use and cable protector rental.

The Red Line 5 has the following features:

Max. axle load: 9.1 t
Material: polyurethane (PU)
Height: 46 mm
Width: 502 mm
Length: 914 mm
Number of channels: 5
Dimensions of middle channel: 39 x 26 mm
Dimensions of remaining channels: 32 x 26 mm
Weight: 13.4 kg
Dielectric strength: 220 kV, non-conductive in accordance with standards 2006/95/EC73/23/EEC, IEC 60529
Colour: black (lower part), red (cover)
Slip resistance: R11 according to DIN 51130

Cableguard Cablecover Office cable protector

The very flat Cableguard Cablecover Office has a cable duct measuring 38 x 12 mm. It is used at events in backstage areas, FOH, production offices, construction sites or offices, i.e. in areas that are mainly frequented by people.

The Cableguard Cablecover Office has the following features:

Max. axle load: 4.7 t
Material: Halogen-free polyurethane (PU)
Height: 22 mm
Width: 133 mm
Length: 765 mm
Number of channels: 1 channel
Channel dimensions: 38 x 12 mm (width x height)
Weight: 1.1 kg
Dielectric strength: 110 kV
Colour: black or red
Slip resistance: R11 according to DIN 51130

Cable protector Cableguard Cablecover Event

The Event cable protector is the large version of the Office cable protector. The overrun protection also has a channel and is mainly used as a flat cable ramp and trip protection in pedestrian areas. The cable protector can be driven over slowly by cars and trucks, but is not suitable for public road traffic.

The Cableguard Cablecover Event has the following features:

Max. axle load: 4.7 t
Material: Halogen-free polyurethane (PU)
Height: 32 mm
Width: 220 mm
Length: 770 mm
Number of channels: 1 channel
Channel dimensions: 45 x 20 mm (width x height)
Weight: 2.5 kg
Dielectric strength: 110 kV
Colour: black or red
Slip resistance: R11 according to DIN 51130

Cable protector red line – other versions

The Red Line cable duct can be ordered in other versions with different numbers of cable trays and in different sizes. The following cable protectors are available from the Red Line series:

RL3-57 (straight element with 3 cable ducts)
RL3-57-LT (45° element on the left with 3 cable ducts)
RL3-57-RT (45° element on the right with 3 cable trays)
RL5-31-EP (end piece set)
RL5-31-LT (45° element on the left with 5 cable channels)
RL5-31-RT (45° element on the right with 5 cable channels)

Basic cable protector with 3 and 5 channels – inexpensive and robust

The Basic cable protector is available in our shop in two different versions. We offer the cable protector with 5 cable channels and with 3 cable channels. Both cable protectors can be quickly combined with each other thanks to the simple connection system.

Version with 5 cable channels:

Load capacity: max. axle load 5 tonnes
Material: recycled rubber (housing), polyethylene (cover)
Number of channels: 5 cable channels
Height: 50 mm
Width: 500 mm
Length: 910 mm (950 mm including connectors)
Channel dimensions: 35 mm x 30 mm
Cable diameter: up to 30 mm ⌀
Colour: black (lower section), yellow (cover)
Weight: approx. 14.5 kg

Version with 3 cable ducts:

Payload: max. axle load 5 tonnes
Material: recycled rubber (housing), polyethylene (cover)
Number of channels: 3 cable channels
Height: 70 mm
Width: 500 mm
Length: 910 mm (950 mm including connectors)
Channel dimensions: 50 mm x 45 mm
Cable diameter: up to 45 mm ⌀
Colour: black (lower section), yellow (cover)
Weight: approx. 19.5 kg

Yellow Jacket "Classic" cable protector – load capacity up to 14.8 tonnes

This floor-mounted duct offers a particularly high load capacity. The Yellow Jacket cable protectors are trafficable up to 14.8 tonnes. This overrun protection is therefore suitable for all heavy-duty traffic at events and on construction sites.

Load capacity: 14.8 tonnes
Material: polyurethane (PU)
Number of channels: 5
Height: 476 mm
Width: 502 mm
Length: 914 mm
Channel dimensions: 42 x 25 mm; 44 x 25 mm
Colour: black (lower section), yellow (flap)
Weight: 12.8 kg

Rubber hose bridges

Hose bridges are particularly well suited for supply hoses. Thanks to the medium-sized channels, hoses for service, drinking and utility water up to a diameter of 7 cm (2 ½ inches) can be safely routed through these bridges across roads. For larger hoses, the Defender XXL and Ultra L cable protectors are available.

Please note: The solid rubber hose bridges do not come with a cover or closure.

The hard rubber hose bridge has the following technical details:

Material: hard rubber
Height: 90 mm
Width: 850 mm
Length: 300 mm
Number of channels: 2
Dimensions of cable duct: 7 x approx. 8.5 cm
Colour: black
For cables up to 60 mm in diameter

Modular cable protectors: Red Floor cable protector

The Red Floor cable protectors make it possible to lay large, flat surfaces in a modular and customised manner. These models are used, for example, to lay a large area in front of the stage at a festival. Various elements are available for this purpose, which can be combined as desired and laid to form a flat surface. In addition to centre models, which can be equipped with different numbers of cable ducts for the interior of the area, there are various ramps and special wheelchair ramps for better accessibility to complete the area at the edge.

Completely customisable: So many models, even more possibilities! The manufacturer Cableguard even produces customised cable protectors with short delivery times . Let us advise you personally, and together we will find the perfect, customised solution for you.

Centre element including ramp RF3-57
Centre element, single RF3-57-C
Standard ramp male RF3-57-MR
Standard ramp female RF3-57-FR
Wheelchair ramp male RF3/5-WMR
Wheelchair ramp female RF3/5-WFR
Wheelchair ramp connector male RF3-WMRI
Wheelchair ramp connector female RF3-WFRI
End piece, set of 4, blue RF3-Tapered End Ramp
Centre element including ramps RF5-31
Centre element, single RF5-31-C
Standard ramp male RF5-31-MR
Standard ramp female RF5-31-FR
End piece, set of 4, blue RF5-Tapered End Ramp
Connecting element Red Floor 5 to Red Line 5 RF5/RL5-TP
Connecting element Red Line 5 to Red Floor 5 RL5/RF5-TP

Compatibility of cable protectors

For individual cable routing tailored to the needs of your event, you can flexibly combine some cable protectors with each other. The following combinations are possible:

Cable protector red line with yellow jacket "Classic"
Cable protector Black Line with Yellow Jacket "Bumble Bee"
Ranger cable protectors can only be combined with each other Tip: Rubber mats to prevent slipping

Buy cable protectors: low prices, fast shipping and personal advice in the allbuyone shop

Order cable protectors at low prices from a wide range at allbuyone – your shop for high-quality cable and hose protectors. Our prices are in EUR, including VAT and excluding shipping costs. On request, products can be shipped within 24 hours by express delivery. allbuyone – low prices, fast delivery. We would also be happy to advise you personally on +49 89-122 89 06 22.

Type:	male
Type:	Intermediate Piece
Max. Axle Load:	9.1 t

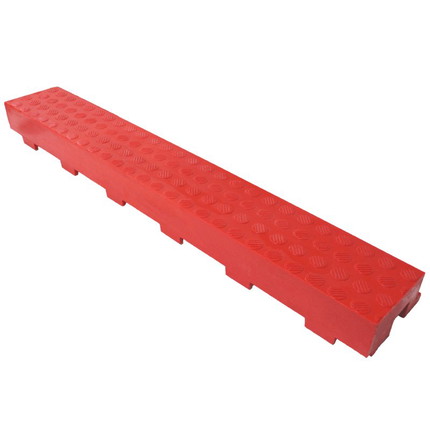

Red Floor adapter | male | Red Floor 65 to 55 mm Intermediate Adapter for RF2-90-C

Red Floor 65 to 55 mm Intermediate Adapter for RF2-90-C

Red Floor 65 to 55 mm Intermediate Adapter for RF2-90-C
